| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCT50-05E07KPWR XFMR LAMINATED 50VA CHAS MT |
3,816 | 19.75 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V, 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-06E07KPWR XFMR LAMINATED 50VA CHAS MT |
3,191 | 19.75 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-07E07KPWR XFMR LAMINATED 50VA CHAS MT |
2,509 | 19.75 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V, 208V, 240V | 12V | 4.17A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-09E07KPWR XFMR LAMINATED 50VA CHAS MT |
2,969 | 19.75 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 69.60mm W | 56.39mm | 1500VAC |
|
|
TCT50-10E07KPWR XFMR LAMINATED 50VA CHAS MT |
3,320 | 19.75 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 208V, 240V | 12V | 4.17A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 69.60mm W | 56.39mm | 1500VAC |
|
|
TCT40-04E07KPWR XFMR LAMINATED 40VA CHAS MT |
3,694 | 20.10 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 240V | 12V | 3.34A | Single | Single | No | 40VA | Chassis Mount | Wire Leads | 92.46mm L x 59.44mm W | 56.39mm | 1500VAC |
|
|
TCT40-07E07KPWR XFMR LAMINATED 40VA CHAS MT |
2,510 | 20.10 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V, 208V, 240V | 12V | 3.34A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Wire Leads | 92.46mm L x 66.04mm W | 56.39mm | 1500VAC |
|
|
TCT40-08E07KPWR XFMR LAMINATED 40VA CHAS MT |
3,469 | 20.10 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V, 240V | 12V | 3.34A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Wire Leads | 92.46mm L x 59.44mm W | 55.88mm | 1500VAC |
|
|
TCT40-10E07KPWR XFMR LAMINATED 40VA CHAS MT |
3,814 | 20.10 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 208V, 240V | 12V | 3.34A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Wire Leads | 92.46mm L x 59.44mm W | 56.39mm | 1500VAC |
|

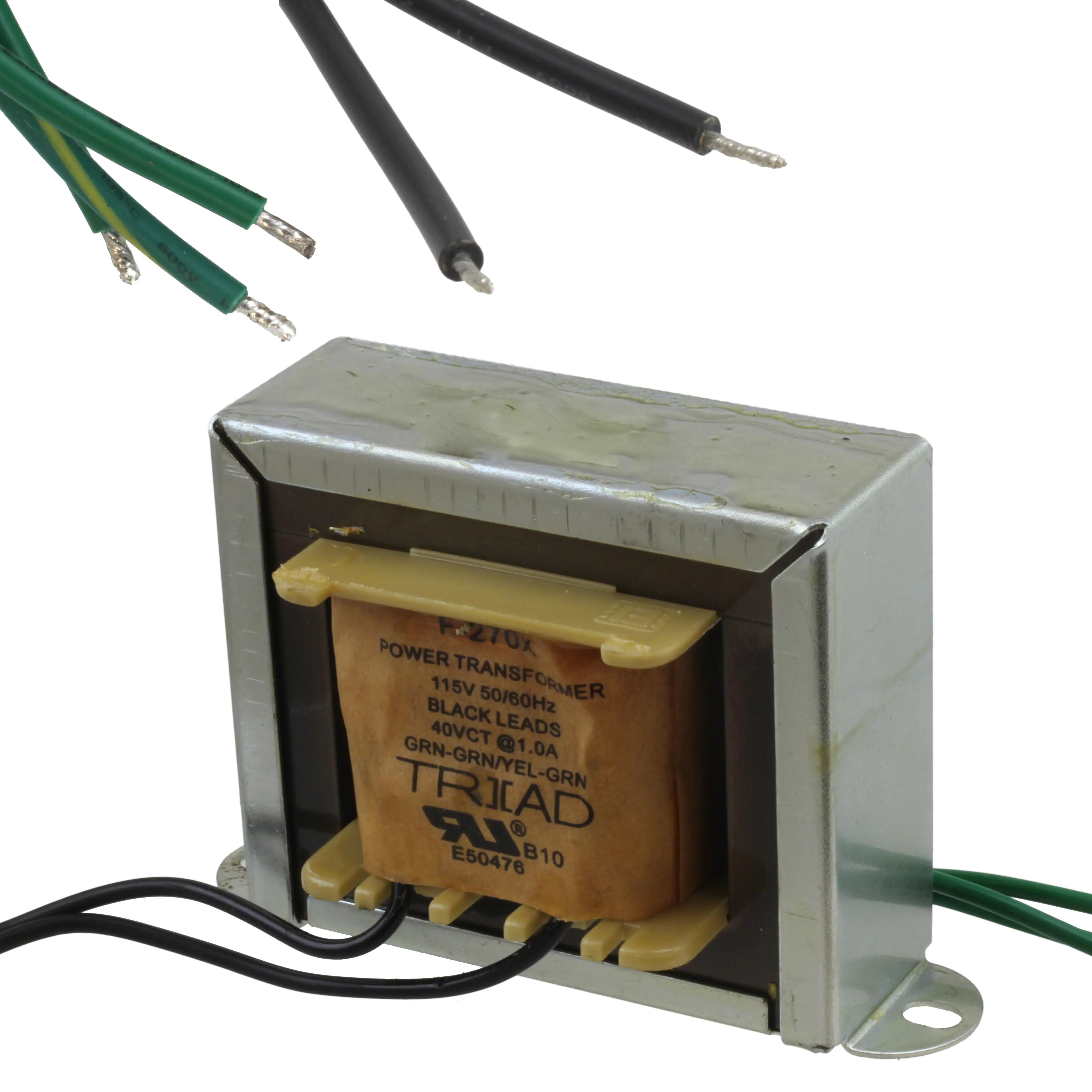

F-270XPWR XFMR LAMINATED 40VA CHAS MT |
2,662 | 20.13 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 40V | 1A | Single | Single | Yes | 40VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.07mm | 1500Vrms |
|
FS12-2850PWR XFMR LAMINATED 36VA TH |
3,867 | 20.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
FS120-300PWR XFMR LAMINATED 36VA TH |
3,351 | 20.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 600mA, Series 300mA | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
FS16-2250PWR XFMR LAMINATED 36VA TH |
3,155 | 20.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
FS20-1800PWR XFMR LAMINATED 36VA TH |
2,860 | 15.84 |
RFQ |
Datasheet |
Bulk,Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
FS24-1500PWR XFMR LAMINATED 36VA TH |
3,722 | 20.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
FS28-1300PWR XFMR LAMINATED 36VA TH |
3,145 | 20.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
FS36-1000PWR XFMR LAMINATED 36VA TH |
2,559 | 20.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
FS48-750PWR XFMR LAMINATED 36VA TH |
3,359 | 20.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 1.5A, Series 750mA | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
FS56-650PWR XFMR LAMINATED 36VA TH |
3,116 | 20.14 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.3A, Series 650mA | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|

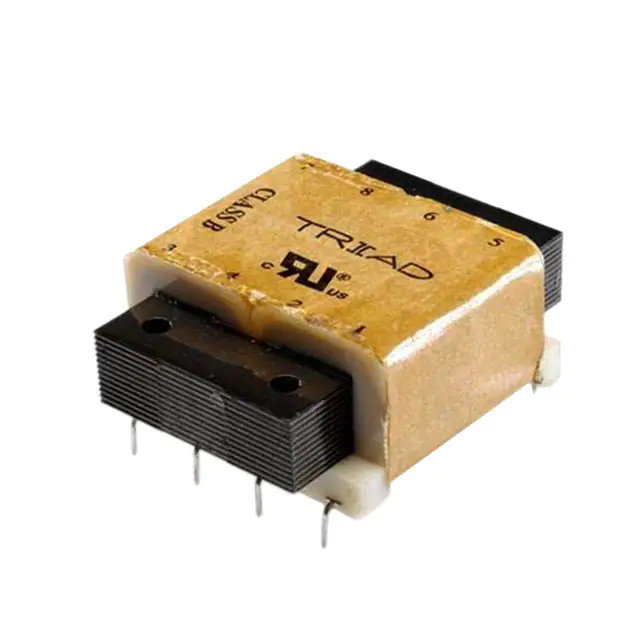

FP10-2400PWR XFMR LAMINATED 24VA TH |
3,773 | 20.37 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.15mm W | 34.93mm | 2000Vrms |
