| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EH28-2.0-02-15M-XCMC 15MH 2A 2LN TH |
393 | 4.08 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 15 mH @ 400 Hz | 2A | 196mOhm | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
EH28-3.0-02-9M0-XCMC 9MH 3A 2LN TH |
423 | 4.13 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 9 mH @ 400 Hz | 3A | 115mOhm | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
RN232-0.6-02-47MCMC 47MH 600MA 2LN TH |
295 | 4.16 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 47 mH @ 10 kHz | 600mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
|
RN232-1-02-18MCMC 18MH 1A 2LN TH |
300 | 4.21 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 18 mH @ 10 kHz | 1A | 390mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
RN242-0.5-02-82MCMC 82MH 500MA 2LN TH |
293 | 4.24 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 82 mH @ 10 kHz | 500mA | 2.7Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
|
RN242-1.4-02-27MCMC 27MH 1.4A 2LN TH |
285 | 4.29 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 500mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
|
RN232-4-02-3M3CMC 3.3MH 4A 2LN TH |
248 | 4.35 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 54mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
ED101-0.2-40MCOMMON MODE CHOKE |
450 | 5.79 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 40 mH @ 10 kHz | 200mA | 10Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

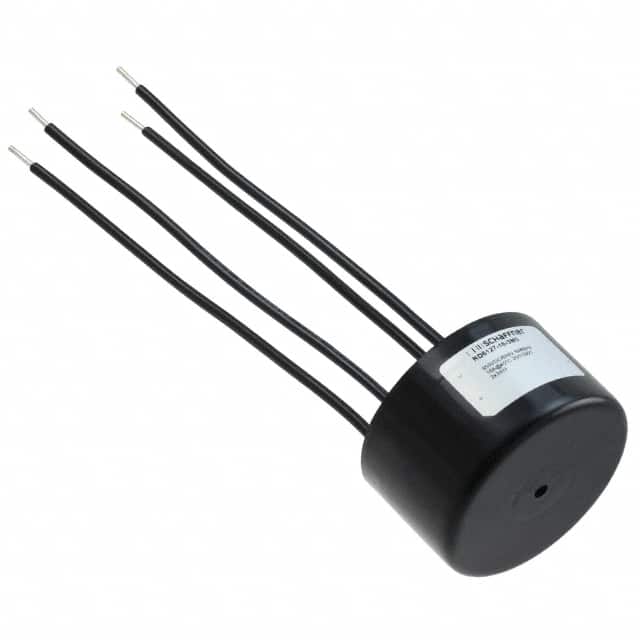

RD6127-16-3M0CMC 3MH 16A 2LN TH |
2,798 | 17.14 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 3 mH @ 1 kHz | 16A (Typ) | 10.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.362 L x 2.362 W (60.00mm x 60.00mm) | 1.398 (35.50mm) |
|
EH28-1.5-02-20MCMC 20MH 1.5A 2LN TH |
264 | 3.89 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 20 mH @ 400 Hz | 1.5A | 282mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
RN112-0.8-02-10MCMC 10MH 800MA 2LN TH |
859 | 2.11 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 800mA | 380mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.508 (12.90mm) |
|
|
RN112-3.6-02-0M4CMC 400UH 3.6A 2LN TH |
3,383 | 2.16 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 400 µH @ 10 kHz | 3.6A | 27mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.508 (12.90mm) |
|
RN214-1.2-02-10MCMC 10MH 1.2A 2LN TH |
840 | 2.25 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1.2A | 195mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.996 (25.30mm) |
|
RN114-2-02-4M2CMC 4.2MH 2A 2LN TH |
720 | 2.25 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 4.2 mH @ 10 kHz | 2A | 100mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
|
RN114-4-02-1M5CMC 1.5MH 4A 2LN TH |
887 | 2.31 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 1.5 mH @ 10 kHz | 4A | 34mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
RN116-2-02-2M2CMC 2.2MH 2A 2LN TH |
855 | 2.57 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 66mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
RN122-4-02-3M3CMC 3.3MH 4A 2LN TH |
383 | 2.94 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 46mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
EH24-3.0-02-1M2CMC 1.2MH 3A 2LN TH |
198 | 3.08 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 1.2 mH @ 400 Hz | 3A | 29mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.945 L x 0.945 W (24.00mm x 24.00mm) | 0.827 (21.00mm) |
|

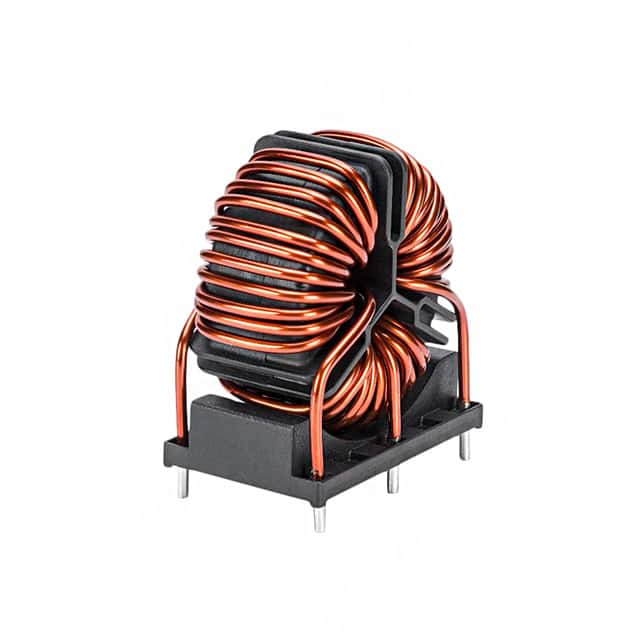

RT8132-20-2M5CMC 2.5MH 20A 3LN TH |
3,993 | 13.99 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 3 | - | 2.5 mH @ 100 kHz | 20A | 7mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | Through Hole | 2.244 Dia (57.00mm) | 1.457 (37.00mm) |
|
RT8532-10-4M0CMC 4MH 10A 3LN TH |
2,369 | 11.70 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 3 | - | 4 mH @ 100 kHz | 10A | 15mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | Through Hole | 1.929 L x 1.339 W (49.00mm x 34.00mm) | 2.087 (53.00mm) |
