| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

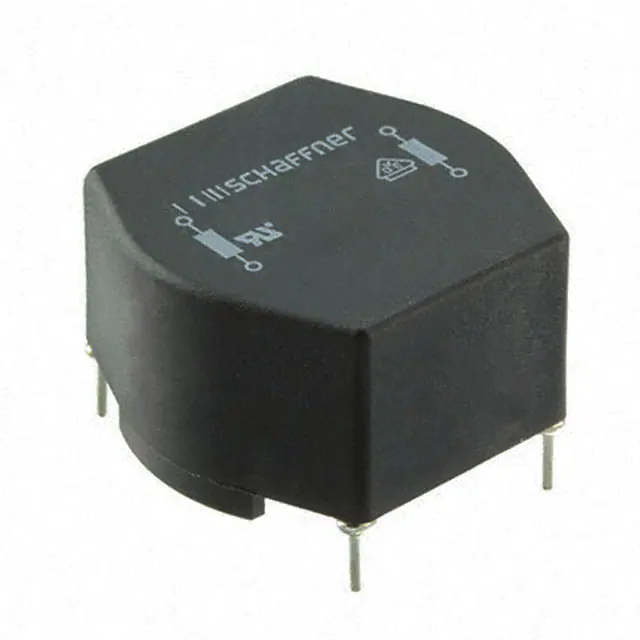

RN143-6-02CMC 1.8MH 6A 2LN TH |
2,945 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 1.8 mH @ 1 kHz | 6A (Typ) | 20mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
RN222-0.6-02CMC 47MH 600MA 2LN TH |
3,542 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 47 mH @ 1 kHz | 600mA (Typ) | 1.18Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
|
RN222-0.8-02CMC 39MH 800MA 2LN TH |
3,165 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 39 mH @ 1 kHz | 800mA (Typ) | 1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
|
RN222-3-02CMC 4.5MH 3A 2LN TH |
3,168 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 4.5 mH @ 1 kHz | 3A (Typ) | 82.6mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
RN242-0.5-02CMC 82MH 500MA 2LN TH |
2,344 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 82 mH @ 10 kHz | 500mA (Typ) | 2.7Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
|
RN242-1.4-02CMC 27MH 1.4A 2LN TH |
2,217 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 27 mH @ 1 kHz | 1.4A (Typ) | 500mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
|
RN242-1-02CMC 33MH 1A 2LN TH |
2,054 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 33 mH @ 1 kHz | 1A (Typ) | 810mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
|
RN242-2-02CMC 6.8MH 2A 2LN TH |
3,616 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 6.8 mH @ 1 kHz | 2A (Typ) | 190mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
|
RN242-4-02CMC 3.3MH 4A 2LN TH |
3,920 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 3.3 mH @ 1 kHz | 4A (Typ) | 66mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
|
RN242-6-02CMC 1.8MH 6A 2LN TH |
2,753 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A (Typ) | 20mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|

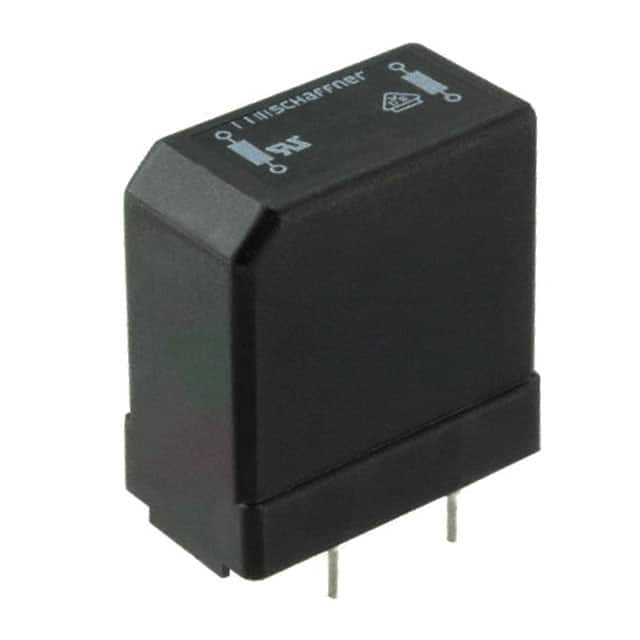

RN232-0.6-02COMMON MODE CHOKE 47MH 600MA |
2,003 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-1.6-02COMMON MODE CHOKE 10MH 1.6A |
3,759 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-1-02COMMON MODE CHOKE 18MH 1A |
2,783 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-2.5-02COMMON MODE CHOKE 5.6MH 2.5A |
2,639 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-4-02COMMON MODE CHOKE 3.3MH 4A |
2,846 | 0.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RN122-0.5-2-56CMC 56MH 500MA 2LN TH |
2,456 | 0.00 |
RFQ |
Tray | RN | Obsolete | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 1.8Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.102 L x 1.063 W (28.00mm x 27.00mm) | 0.661 (16.80mm) | |
|
|
RN122-2-02-1CMC 5MH 2A 2LN TH |
3,608 | 0.00 |
RFQ |
Tray | RN | Obsolete | Power Line | 2 | - | 5 mH @ 10 kHz | 2A | 140mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.102 L x 1.063 W (28.00mm x 27.00mm) | 0.661 (16.80mm) | |
|
|
RN214-2-02-2.2CMC 2.2MH 2A 2LN TH |
2,670 | 0.00 |
RFQ |
Tray | RN | Obsolete | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 67mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.996 (25.30mm) | |
|
|
RN222-0.5-02-56CMC 56MH 500MA 2LN TH |
2,528 | 0.00 |
RFQ |
Tray | RN | Obsolete | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 1.8Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) | |
|
|
RN222-1-02-33CMC 33MH 1A 2LN TH |
2,630 | 0.00 |
RFQ |
Tray | RN | Obsolete | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
