| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB8532-16-1M3CMC 1.3MH 16A 3LN TH |
277 | 20.08 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 1.3 mH @ 1 kHz | 16A | 5.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.283 L x 2.165 W (58.00mm x 55.00mm) | 2.283 (58.00mm) |
|
RB6132-25-0M5CMC 470UH 25A 3LN TH |
112 | 20.44 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 470 µH @ 400 Hz | 25A | 2.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.315 L x 2.276 W (58.80mm x 57.80mm) | 1.890 (48.00mm) |
|
RB6532-36-0M4CMC 420UH 36A 3LN TH |
201 | 26.17 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 420 µH @ 400 Hz | 36A | 4.2mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.441 L x 2.283 W (62.00mm x 58.00mm) | 2.756 (70.00mm) |
|

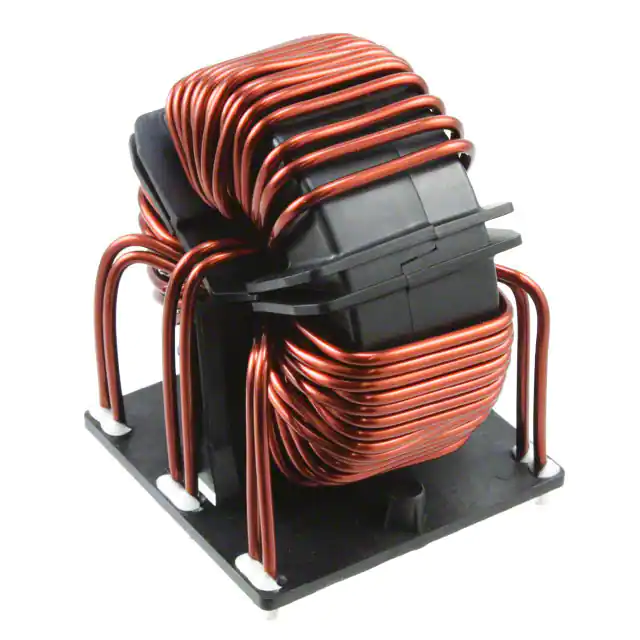

RB8532-36-0M8CMC 830UH 36A 3LN TH |
540 | 34.15 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 830 µH @ 400 Hz | 36A | 2.3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.992 L x 2.480 W (76.00mm x 63.00mm) | 3.228 (82.00mm) |
|
EH28-2.0-02-11MCMC 11MH 2A 2LN TH |
338 | 3.94 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 11 mH @ 10 kHz | 2A | 162mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
EH35-1.0-02-90MCMC 90MH 1A 2LN TH |
236 | 7.09 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 90 mH @ 400 Hz | 1A | 628mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.417 L x 1.417 W (36.00mm x 36.00mm) | 1.130 (28.70mm) |
|
RT8122-12-5M0CMC 5MH 12A 2LN TH |
134 | 10.22 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 2 | - | 5 mH @ 100 kHz | 12A | 14mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | Through Hole | 2.008 Dia (51.00mm) | 1.299 (33.00mm) |
|
RB6532-25-0M5CMC 470UH 25A 3LN TH |
103 | 20.93 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 470 µH @ 400 Hz | 25A | 2.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.283 L x 2.165 W (58.00mm x 55.00mm) | 2.283 (58.00mm) |
|

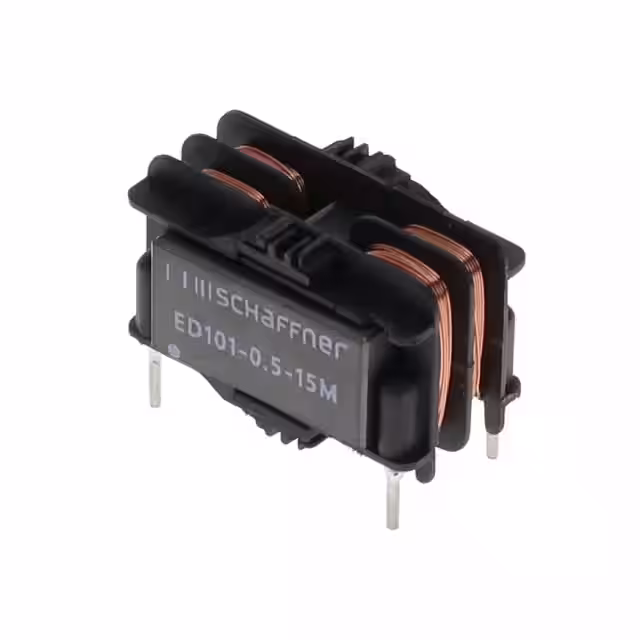

ED101-0.5-15MCOMMON MODE CHOKE |
450 | 3.64 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

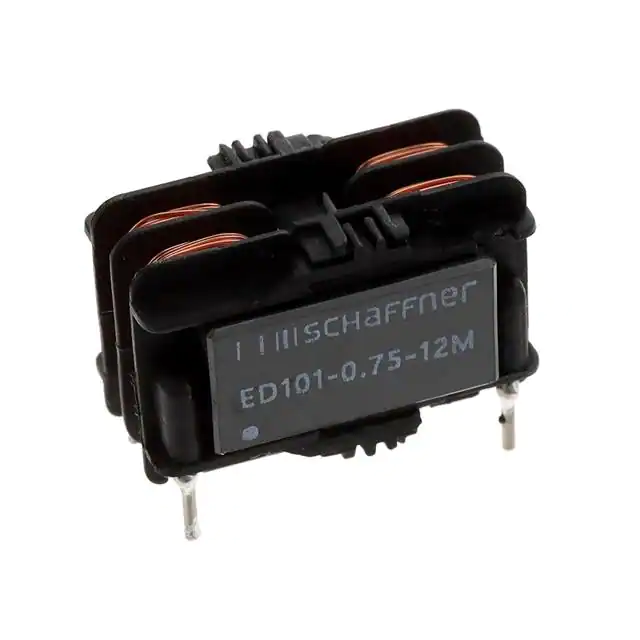

ED101-0.75-12MCOMMON MODE CHOKE |
450 | 3.64 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 12 mH @ 10 kHz | 750mA | 1.2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
ED101-1-9M0COMMON MODE CHOKE |
450 | 3.67 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 9 mH @ 10 kHz | 1A | 600mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
RS514-1-02CMC 120UH 1A 2LN TH |
393 | 3.70 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 120 µH @ 1 kHz | 1A (Typ) | 200mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.520 (13.20mm) |
|

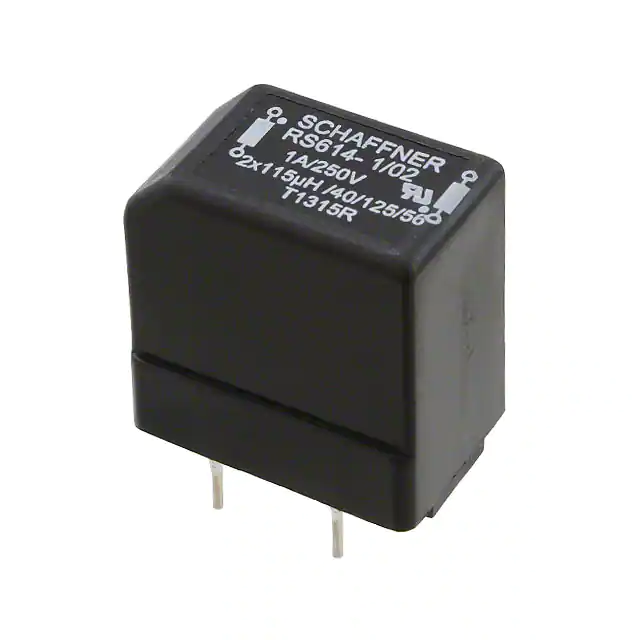

RS614-1-02CMC 120UH 1A 2LN TH |
143 | 3.70 |
RFQ |
Datasheet |
Tube | RS | Active | Signal Line | 2 | - | 120 µH @ 1 kHz | 1A (Typ) | 200mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.984 (25.00mm) |
|
EV20-2.0-02-0M8CMC 820UH 2A 2LN TH |
3,754 | 2.63 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 820 µH @ 400 Hz | 2A | 38mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.630 W (21.00mm x 16.00mm) | 1.024 (26.00mm) |
|
RN216-2-02-3M3CMC 3.3MH 2A 2LN TH |
2,628 | 2.72 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.996 (25.30mm) |
|

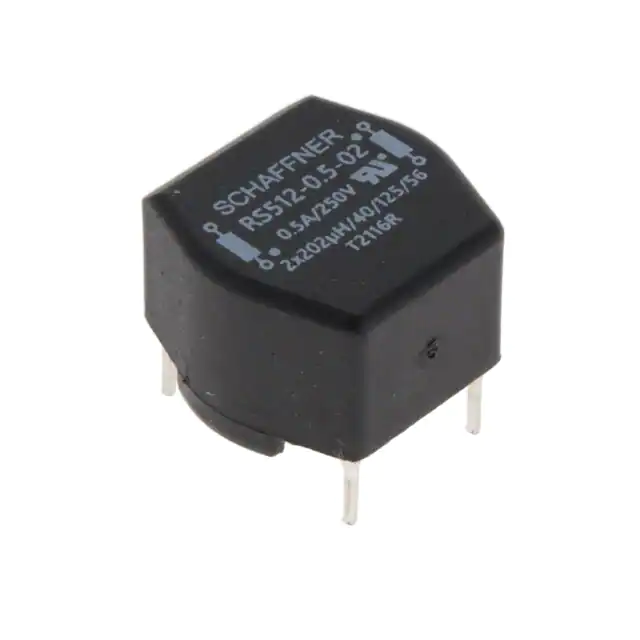

RS512-0.5-02CMC 200UH 500MA 2LN TH |
418 | 3.21 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 200 µH @ 1 kHz | 500mA (Typ) | 650mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.492 (12.50mm) |
|

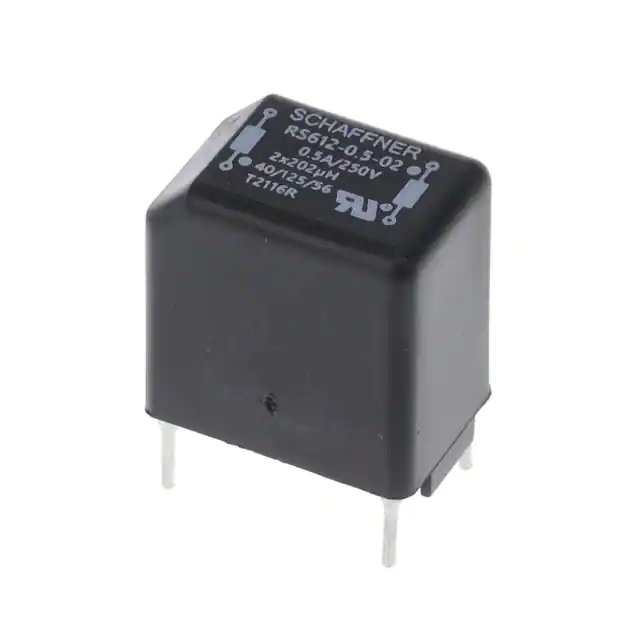

RS612-0.5-02CMC 200UH 500MA 2LN TH |
435 | 3.21 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 200 µH @ 1 kHz | 500mA (Typ) | 650mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.787 (20.00mm) |
|

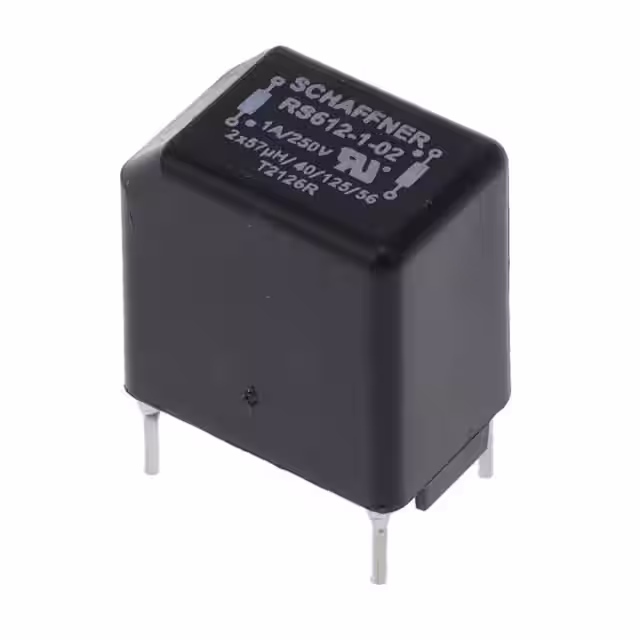

RS612-1-02CMC 55UH 1A 2LN TH |
3,324 | 3.27 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 55 µH @ 1 kHz | 1A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.787 (20.00mm) |
|

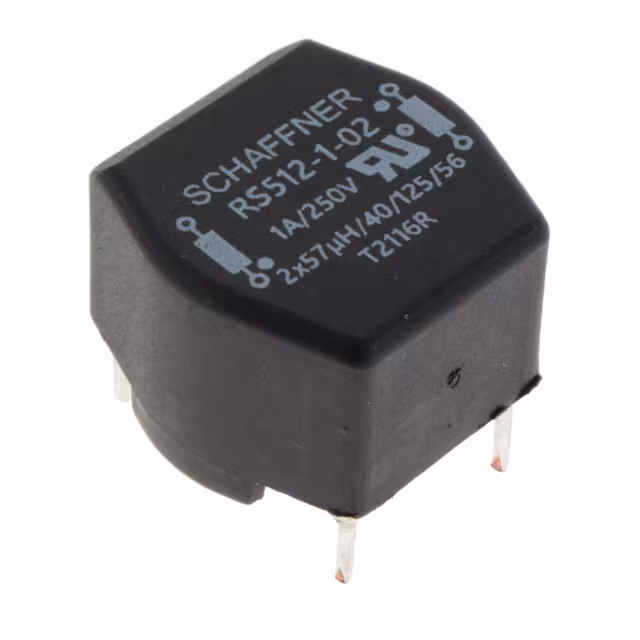

RS512-1-02CMC 55UH 1A 2LN TH |
485 | 3.27 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 55 µH @ 1 kHz | 1A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.492 (12.50mm) |
|

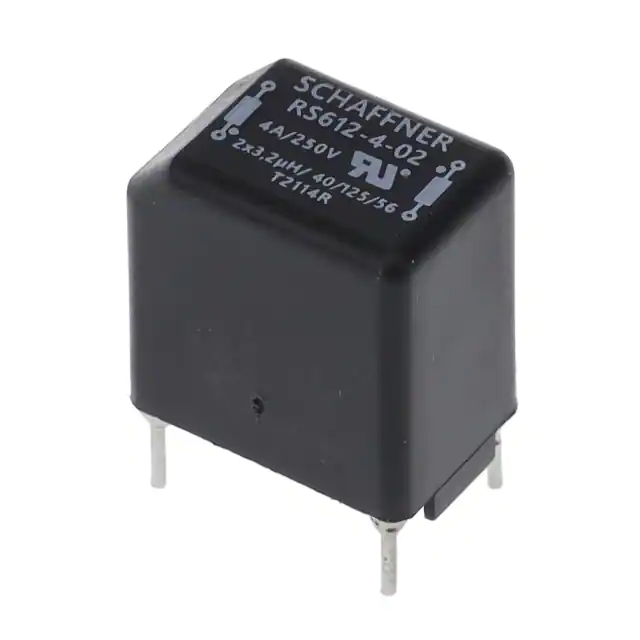

RS612-4-02CMC 3UH 4A 2LN TH |
494 | 3.40 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 3 µH @ 1 kHz | 4A (Typ) | 10mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.787 (20.00mm) |
