| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

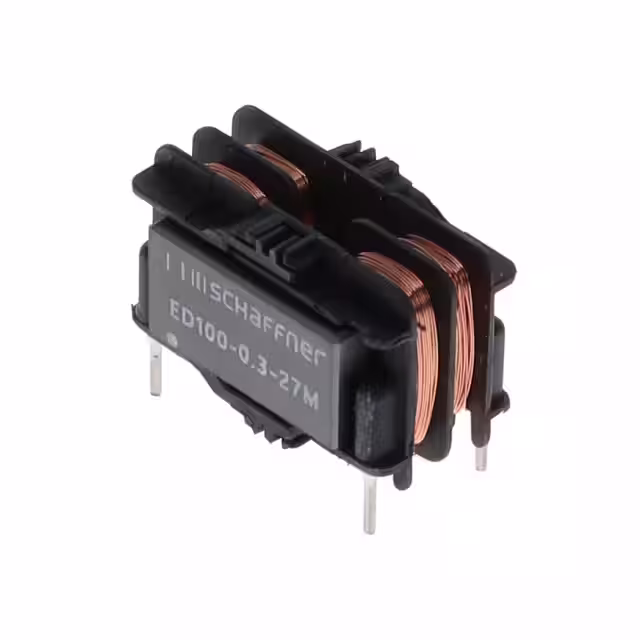

ED100-0.3-27MCOMMON MODE CHOKE |
450 | 3.40 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 300mA | 5.5Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
ED100-0.2-40MCOMMON MODE CHOKE |
450 | 3.40 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 40 mH @ 10 kHz | 200mA | 10Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

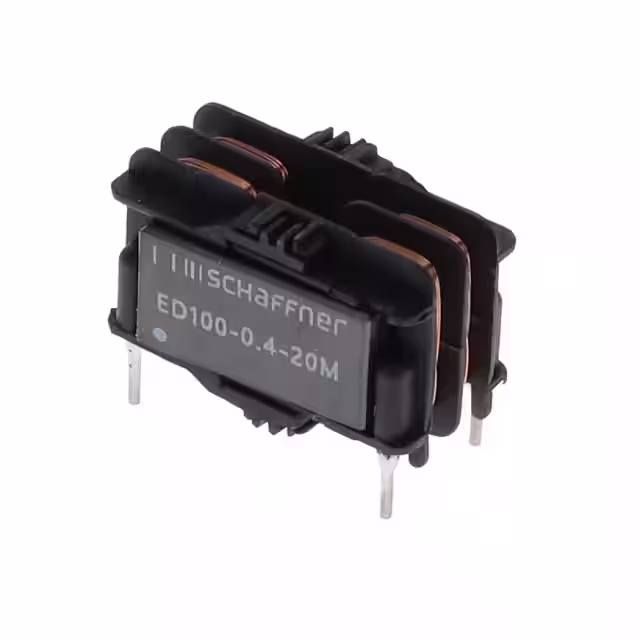

ED100-0.4-20MCOMMON MODE CHOKE |
447 | 3.40 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 20 mH @ 10 kHz | 400mA | 3.7Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

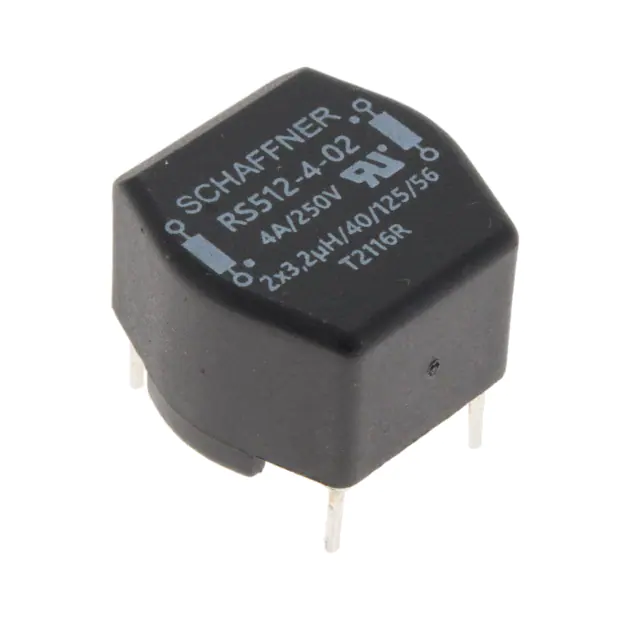

RS512-4-02CMC 3UH 4A 2LN TH |
294 | 3.40 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 3 µH @ 1 kHz | 4A (Typ) | 10mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.492 (12.50mm) |
|

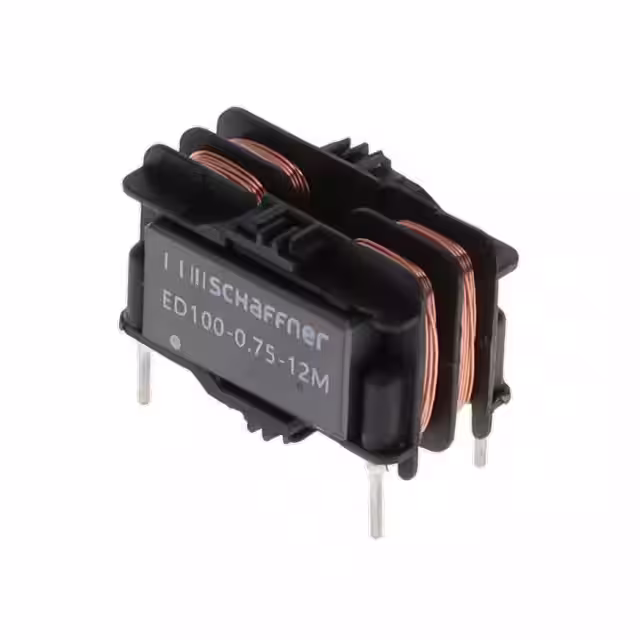

ED100-0.75-12MCOMMON MODE CHOKE |
450 | 3.46 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 12 mH @ 10 kHz | 750mA | 1.2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

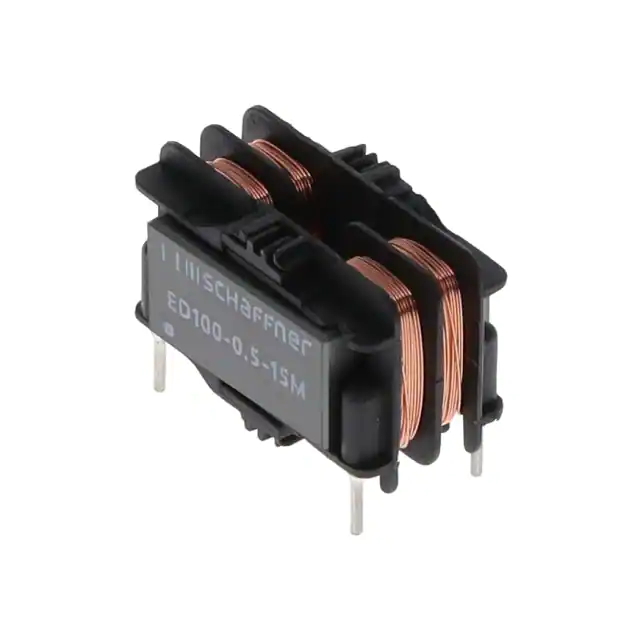

ED100-0.5-15MCOMMON MODE CHOKE |
450 | 3.46 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

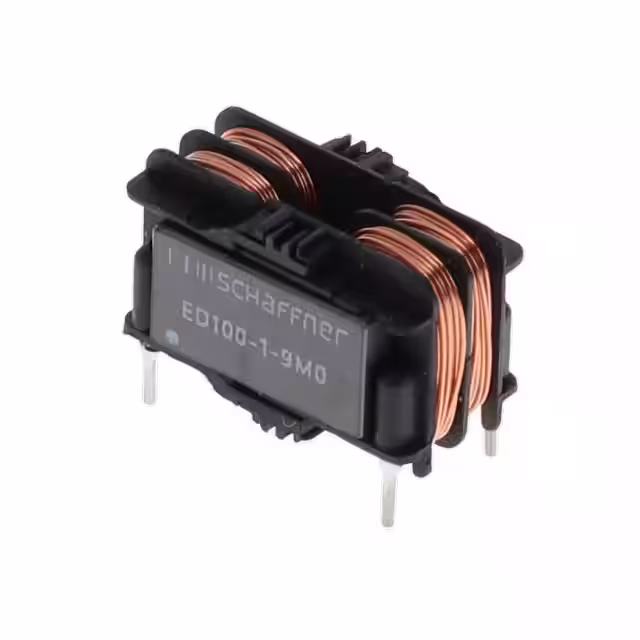

ED100-1-9M0COMMON MODE CHOKE |
450 | 3.48 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 9 mH @ 10 kHz | 1A | 600mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

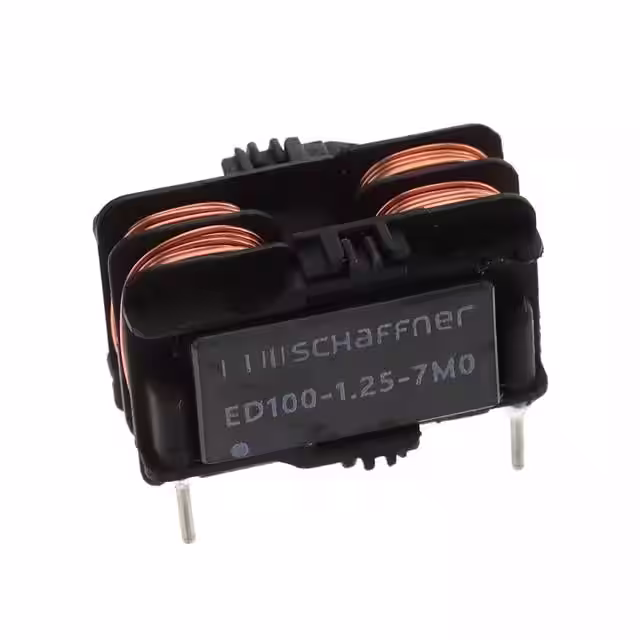

ED100-1.25-7M0COMMON MODE CHOKE |
450 | 3.51 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 7 mH @ 10 kHz | 1.25A | 400mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

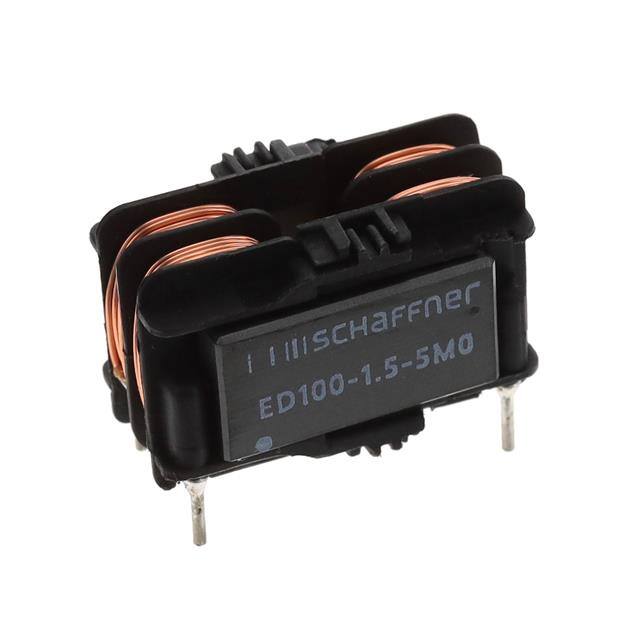

ED100-1.5-5M0COMMON MODE CHOKE |
450 | 3.56 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 5 mH @ 10 kHz | 1.5A | 300mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
|
ED100-2-3M0COMMON MODE CHOKE |
450 | 3.59 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 3 mH @ 10 kHz | 2A | 200mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

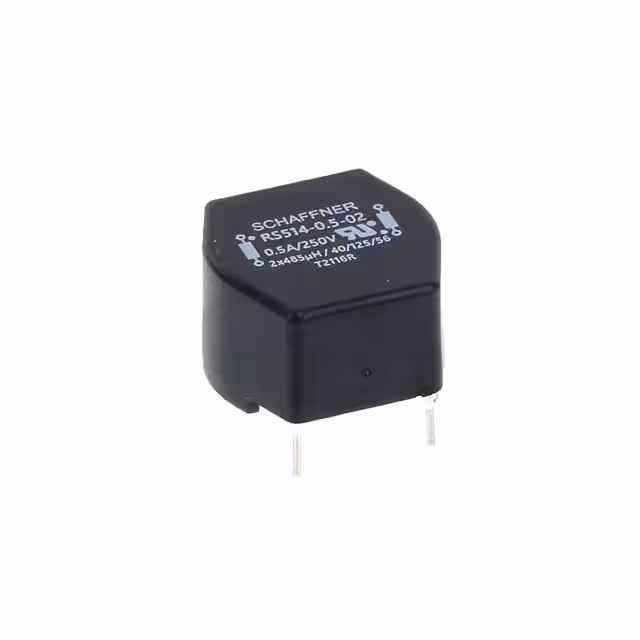

RS514-0.5-02CMC 480UH 500MA 2LN TH |
490 | 3.62 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 480 µH @ 1 kHz | 500mA (Typ) | 800mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.520 (13.20mm) |
|

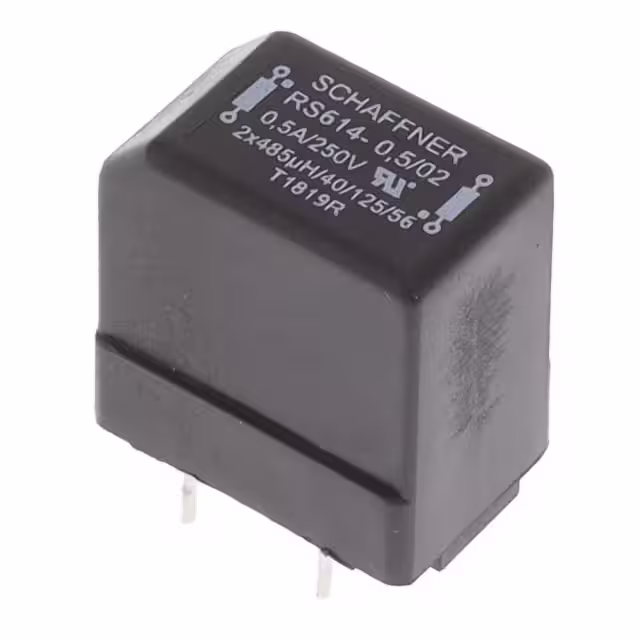

RS614-0.5-02CMC 480UH 500MA 2LN TH |
490 | 3.62 |
RFQ |
Datasheet |
Tube | RS | Active | Signal Line | 2 | - | 480 µH @ 1 kHz | 500mA (Typ) | 800mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.984 (25.00mm) |
|
|
ED101-0.4-20MCOMMON MODE CHOKE |
450 | 3.62 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 20 mH @ 10 kHz | 400mA | 3.7Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
|
ED101-0.3-27MCOMMON MODE CHOKE |
450 | 3.62 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 300mA | 5.5Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

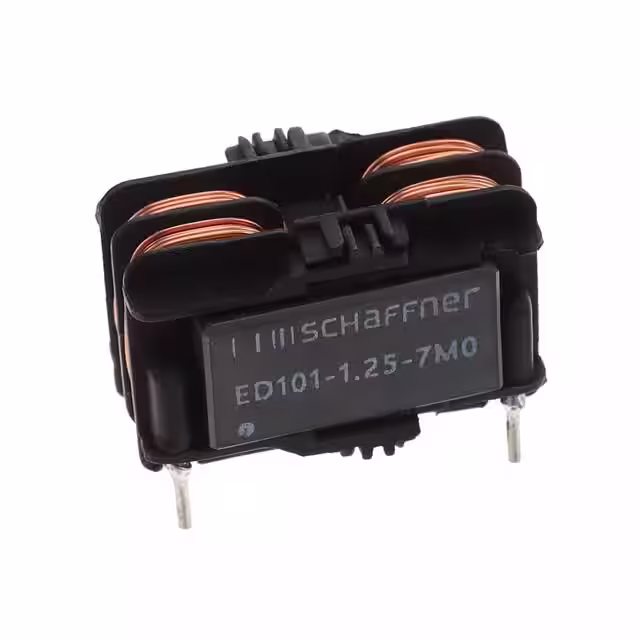

ED101-1.25-7M0COMMON MODE CHOKE |
450 | 3.73 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 7 mH @ 10 kHz | 1.25A | 400mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
|
ED101-1.5-5M0COMMON MODE CHOKE |
450 | 3.75 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 5 mH @ 10 kHz | 1.5A | 300mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
|
ED101-2-3M0COMMON MODE CHOKE |
450 | 3.78 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 3 mH @ 10 kHz | 2A | 200mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

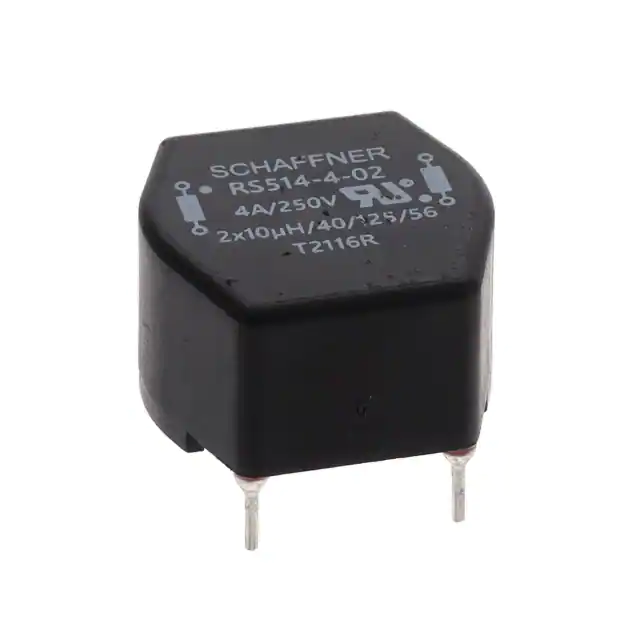

RS514-4-02CMC 8UH 4A 2LN TH |
458 | 3.83 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 8 µH @ 1 kHz | 4A (Typ) | 20mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.520 (13.20mm) |
|

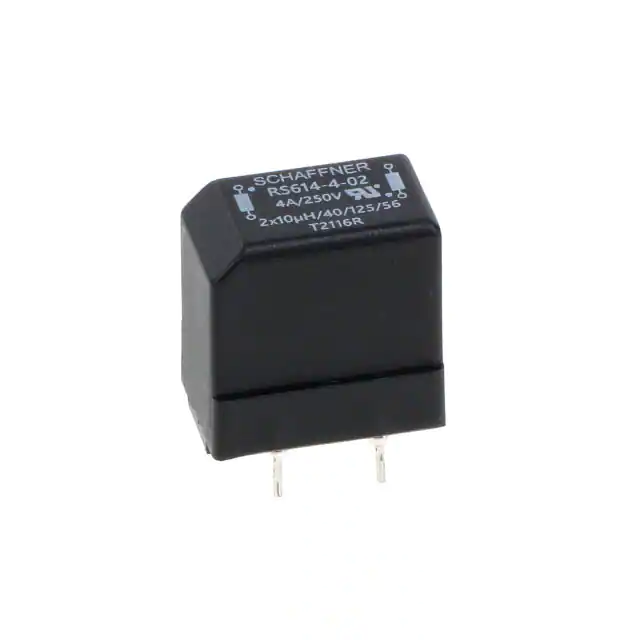

RS614-4-02CMC 8UH 4A 2LN TH |
278 | 3.83 |
RFQ |
Datasheet |
Tube | RS | Active | Signal Line | 2 | - | 8 µH @ 1 kHz | 4A (Typ) | 20mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.984 (25.00mm) |
|
EH28-1.0-02-75M-XCMC 75MH 1A 2LN TH |
483 | 4.05 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 75 mH @ 400 Hz | 1A | 880mOhm | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
