| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EH20-2.0-02-0M8CMC 820UH 2A 2LN TH |
447 | 2.57 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 820 µH @ 10 kHz | 2A | 38mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.740 (18.80mm) |
|
RN218-2.2-02-3M3CMC 3.3MH 2.2A 2LN TH |
2,845 | 2.57 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.2A | 100mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.799 (20.30mm) |
|
RN116-2-02-3M3CMC 3.3MH 2A 2LN TH |
936 | 2.63 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
EV20-1.2-02-3M3CMC 3.3MH 1.2A 2LN TH |
440 | 2.63 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 3.3 mH @ 400 Hz | 1.2A | 127mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.630 W (21.00mm x 16.00mm) | 1.024 (26.00mm) |
|
RN122-4-02-1M8CMC 1.8MH 4A 2LN TH |
3,799 | 2.73 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 1.8 mH @ 10 kHz | 4A | 42mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
RN204-0.3-02-12MCMC 12MH 300MA 2LN TH |
984 | 2.81 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 960mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.551 L x 0.354 W (14.00mm x 9.00mm) | 0.575 (14.61mm) |
|
|
RN122-0.8-02-39MCMC 39MH 800MA 2LN TH |
200 | 2.84 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 39 mH @ 10 kHz | 800mA | 1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
|
RN122-0.6-02-47MCMC 47MH 600MA 2LN TH |
2,934 | 2.84 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 47 mH @ 10 kHz | 600mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|

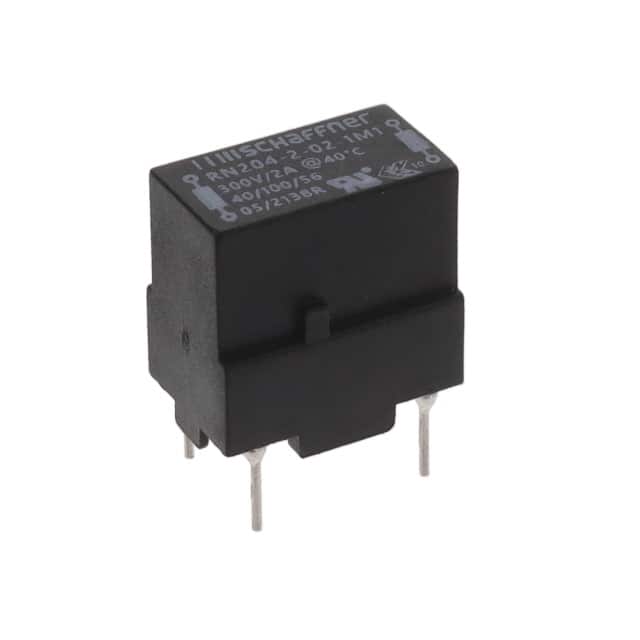

RN204-2-02-1M1CMC 1.1MH 2A 2LN TH |
812 | 2.86 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 57mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.551 L x 0.354 W (14.00mm x 9.00mm) | 0.575 (14.61mm) |
|
|
RN122-1.5-02-10MCMC 10MH 1.5A 2LN TH |
237 | 2.87 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1.5A | 250mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
|
RN222-3-02-4M5CMC 4.5MH 3A 2LN TH |
324 | 2.92 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 4.5 mH @ 10 kHz | 3A | 80mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
RN142-1.4-02-27MCMC 27MH 1.4A 2LN TH |
2,383 | 4.51 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 500mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
RT8532-8-4M8CMC 4.8MH 8A 3LN TH |
2,892 | 10.92 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 3 | - | 4.8 mH @ 100 kHz | 8A | 17mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | Through Hole | 1.732 L x 1.260 W (44.00mm x 32.00mm) | 1.850 (47.00mm) |
|
RT8522-20-3M0CMC 3MH 20A 2LN TH |
2,167 | 11.16 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 2 | - | 3 mH @ 100 kHz | 20A | 7mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | Through Hole | 2.205 L x 1.260 W (56.00mm x 32.00mm) | 2.244 (57.00mm) |
|
RT8132-16-3M0CMC 3MH 16A 3LN TH |
3,774 | 13.39 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 3 | - | 3 mH @ 100 kHz | 16A | 8mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | Through Hole | 2.244 Dia (57.00mm) | 1.457 (37.00mm) |
|
RD5132-6-5M0CMC 5MH 6A 3LN TH |
3,480 | 13.71 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 5 mH @ 400 Hz | 6A (Typ) | 38mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 1.969 L x 1.969 W (50.00mm x 50.00mm) | 1.398 (35.50mm) |
|
RB6122-16-1M0CMC 1MH 16A 2LN TH |
3,910 | 14.12 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 2 | - | 1 mH @ 400 Hz | 16A | 4.8mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.098 L x 2.020 W (53.29mm x 51.31mm) | 1.634 (41.50mm) |
|
RB6522-25-0M6CMC 640UH 25A 2LN TH |
2,566 | 17.64 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 2 | - | 640 µH @ 400 Hz | 25A | 2.6mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 1.846 L x 1.772 W (46.90mm x 45.00mm) | 2.047 (52.00mm) |
|
RB6532-16-0M8CMC 800UH 16A 3LN TH |
3,931 | 19.39 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 800 µH @ 1 kHz | 16A | 4.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.283 L x 2.165 W (58.00mm x 55.00mm) | 2.283 (58.00mm) |
|
RB8522-25-2M0CMC 2MH 25A 2LN TH |
3,427 | 23.70 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 2 | - | 2 mH @ 1 kHz | 25A | 4.2mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.165 L x 1.807 W (55.00mm x 45.90mm) | 2.677 (68.00mm) |
