| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

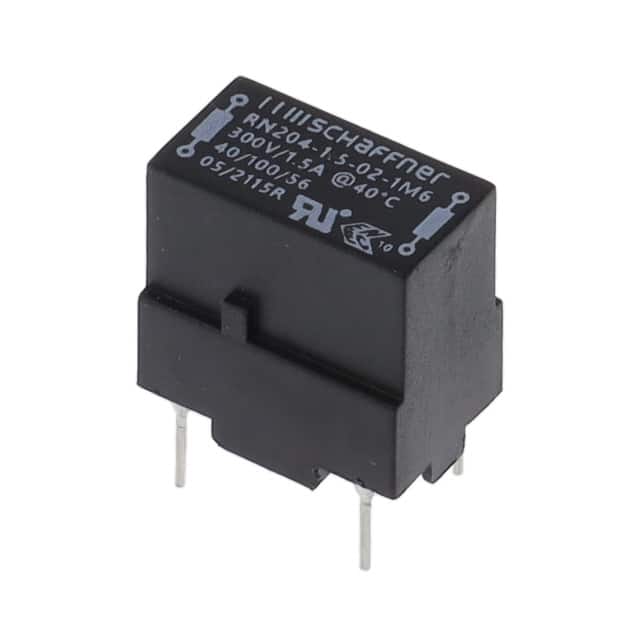

RN204-1.5-02-1M6CMC 1.6MH 1.5A 2LN TH |
331 | 2.84 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 1.6 mH @ 10 kHz | 1.5A | 96mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.551 L x 0.354 W (14.00mm x 9.00mm) | 0.575 (14.61mm) |
|
RN222-0.5-02-56MCMC 56MH 500MA 2LN TH |
200 | 2.84 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 1.8Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
|
RN222-0.6-02-47MCMC 47MH 600MA 2LN TH |
161 | 2.84 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 47 mH @ 10 kHz | 600mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
RN122-0.5-02-56MCMC 56MH 500MA 2LN TH |
119 | 2.84 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 1.8Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
|
RN222-1.5-02-10MCMC 10MH 1.5A 2LN TH |
268 | 2.86 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1.5A | 250mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
|
RN222-1-02-18MCMC 18MH 1A 2LN TH |
248 | 2.86 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 18 mH @ 10 kHz | 1A | 630mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
|
RN122-1-02-10MCMC 10MH 1A 2LN TH |
190 | 2.87 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 560mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
|
RN122-2-02-5M0CMC 5MH 2A 2LN TH |
3,008 | 2.90 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 5 mH @ 10 kHz | 2A | 140mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
|
RN222-1-02-33MCMC 33MH 1A 2LN TH |
3,671 | 3.00 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
RN232-2.5-02-5M6CMC 5.6MH 2.5A 2LN TH |
221 | 4.24 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2.5A | 86mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
RN142-0.5-02-82MCMC 82MH 500MA 2LN TH |
3,658 | 4.46 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 82 mH @ 10 kHz | 500mA | 2.7Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
RN143-0.5-02-100MCMC 100MH 500MA 2LN TH |
3,476 | 4.64 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 100 mH @ 10 kHz | 500mA | 2.9Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
|
RN142-4-02-3M3CMC 3.3MH 4A 2LN TH |
3,738 | 4.64 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 67mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
|
RN143-1-02-47MCMC 47MH 1A 2LN TH |
2,873 | 4.67 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 47 mH @ 10 kHz | 1A | 890mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
RN152-2-02-18MCMC 18MH 2A 2LN TH |
2,046 | 6.48 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 18 mH @ 10 kHz | 2A | 350mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.693 L x 1.646 W (43.00mm x 41.80mm) | 0.996 (25.30mm) |
|

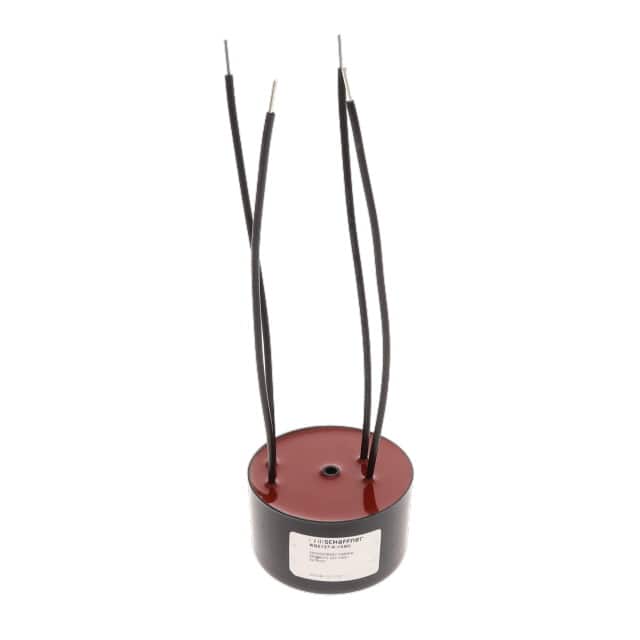

RD6127-6-15M0CMC 15MH 6A 2LN TH |
3,883 | 16.17 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 15 mH @ 400 Hz | 6A (Typ) | 66.65mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.362 L x 2.362 W (60.00mm x 60.00mm) | 1.398 (35.50mm) |
|

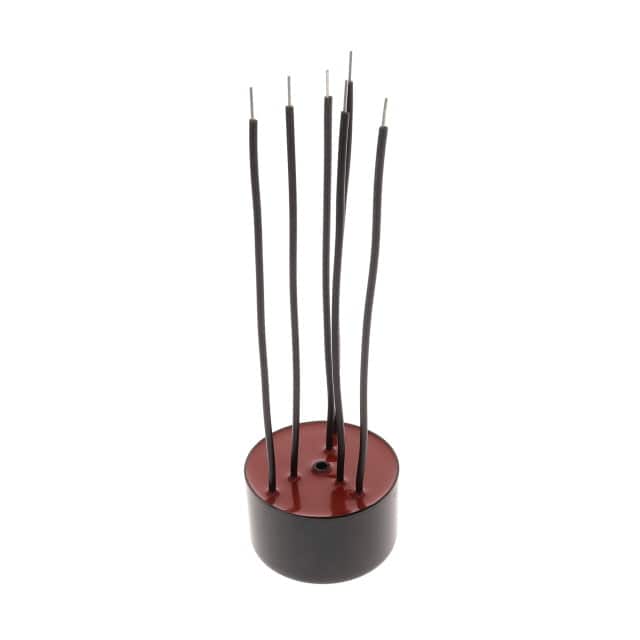

RD6137-6-7M5CMC 7.5MH 6A 3LN TH |
3,388 | 18.13 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 7.5 mH @ 400 Hz | 6A (Typ) | 49mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.362 L x 2.362 W (60.00mm x 60.00mm) | 1.398 (35.50mm) |
|
RD7127-6-25M0CMC 25MH 6A 2LN TH |
3,026 | 22.62 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 25 mH @ 400 Hz | 6A (Typ) | 84.2mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|
|
RD7127-10-14M0CMC 14MH 10A 2LN TH |
3,045 | 23.30 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 14 mH @ 1 kHz | 10A (Typ) | 33.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|
|
RD7127-16-5M7CMC 5.7MH 16A 2LN TH |
2,592 | 23.98 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 5.7 mH @ 400 Hz | 16A (Typ) | 14.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
