| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD7127-25-2M8CMC 2.8MH 25A 2LN TH |
2,288 | 24.88 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 2.8 mH @ 400 Hz | 25A (Typ) | 6.4mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|

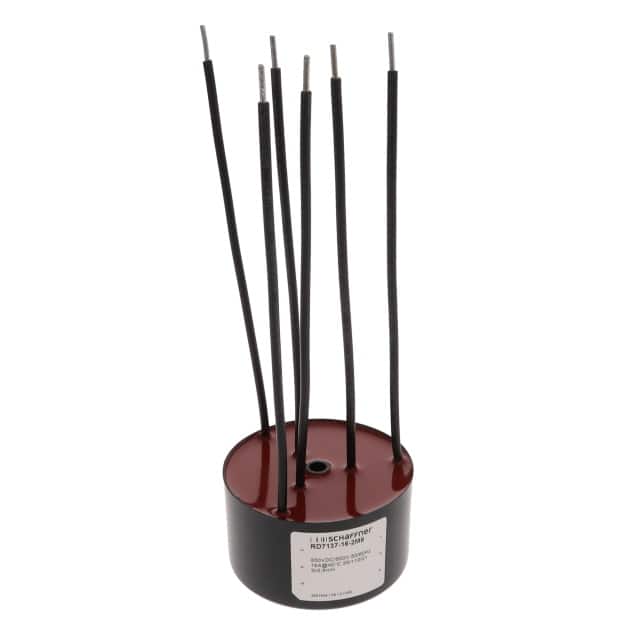

RD7137-16-2M8CMC 2.8MH 16A 3LN TH |
3,386 | 25.91 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 2.8 mH @ 1 kHz | 16A (Typ) | 10.7mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|

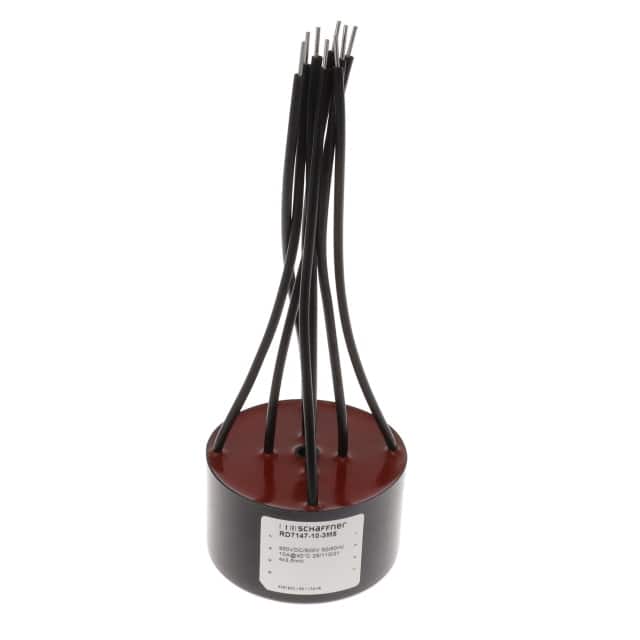

RD7147-10-3M5CMC 3.5MH 10A 4LN TH |
2,943 | 27.74 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 3.5 mH @ 400 Hz | 10A (Typ) | 19.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|
RD7147-16-1M5CMC 1.5MH 16A 4LN TH |
2,981 | 28.56 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 1.5 mH @ 400 Hz | 16A (Typ) | 8.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|

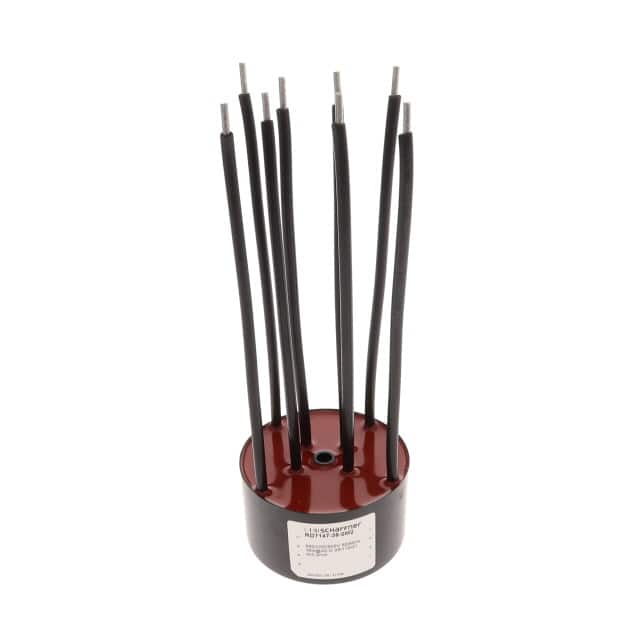

RD7147-36-0M2CMC 200UH 36A 4LN TH |
3,465 | 30.44 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 200 µH @ 400 Hz | 36A (Typ) | 2.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|
RD8137-16-5M0CMC 5MH 16A 3LN TH |
3,232 | 43.80 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 5 mH @ 400 Hz | 16A (Typ) | 11.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
|
RD8137-25-2M5CMC 2.5MH 25A 3LN TH |
3,506 | 45.11 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 2.5 mH @ 400 Hz | 25A (Typ) | 6.4mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
|
RD8137-50-0M6CMC 600UH 50A 3LN TH |
3,584 | 48.62 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 600 µH @ 400 Hz | 50A (Typ) | 2.15mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|

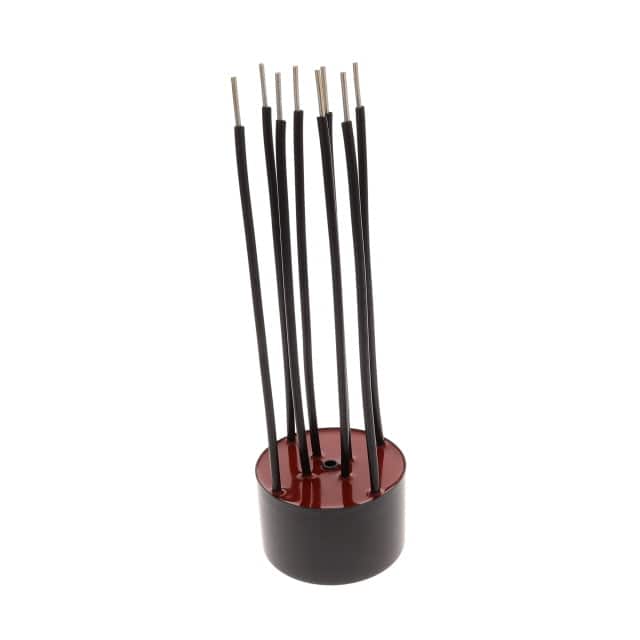

RD8147-25-1M3CMC 1.3MH 25A 4LN TH |
3,368 | 51.34 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 1.3 mH @ 400 Hz | 25A (Typ) | 5.05mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|

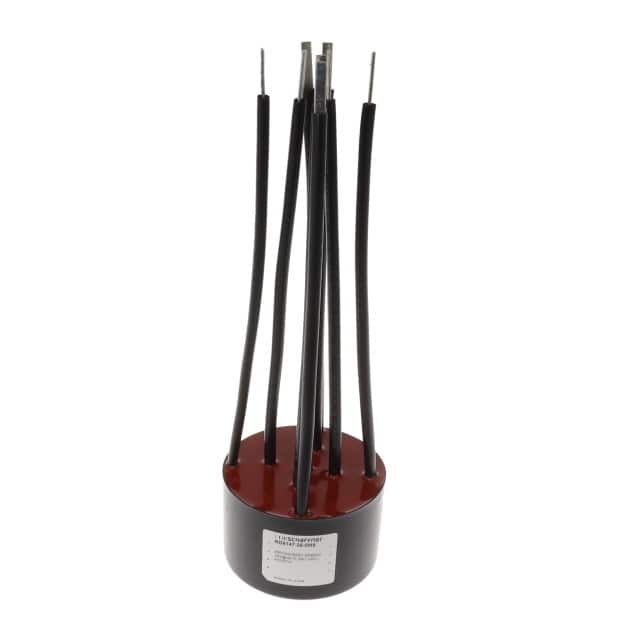

RD8147-36-0M8CMC 800UH 36A 4LN TH |
2,854 | 53.84 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 800 µH @ 1 kHz | 36A (Typ) | 3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|

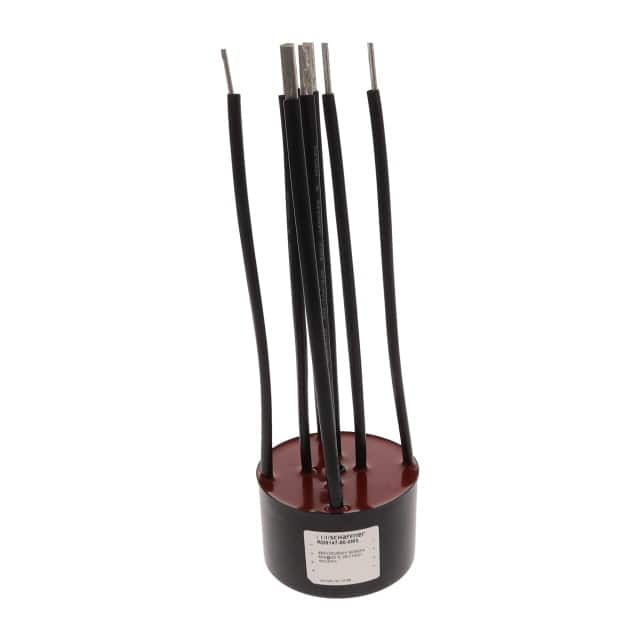

RD8147-50-0M3CMC 300UH 50A 4LN TH |
2,049 | 55.33 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 300 µH @ 400 Hz | 50A (Typ) | 1.75mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
|
RD8137-64-0M5CMC 500UH 64A 3LN TH |
2,571 | 55.63 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 500 µH @ 1 kHz | 64A (Typ) | 1.35mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|

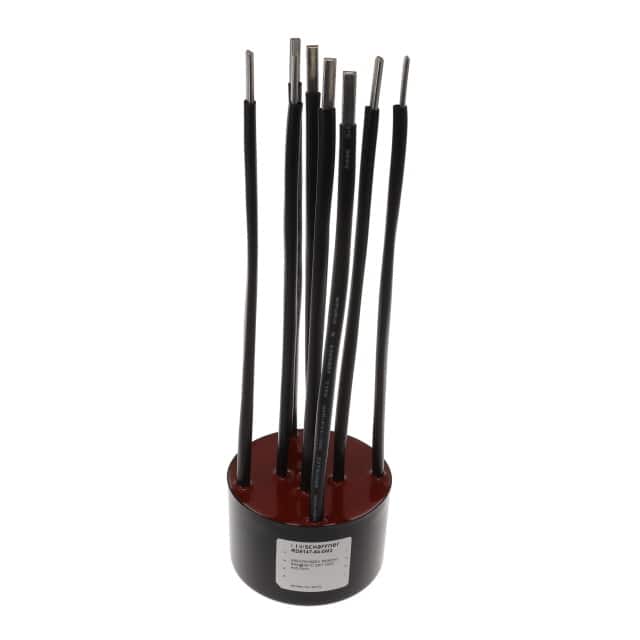

RD8147-64-0M2CMC 200UH 64A 4LN TH |
2,358 | 60.32 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 200 µH @ 1 kHz | 64A (Typ) | 1.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
RN214-1.5-02CMC 6.8MH 1.5A 2LN TH |
530 | 3.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.5A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.996 (25.30mm) |
|
EH24-0.8-02-18MCMC 18MH 800MA 2LN TH |
468 | 3.00 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 18 mH @ 400 Hz | 800mA | 438mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.945 L x 0.945 W (24.00mm x 24.00mm) | 0.827 (21.00mm) |
|
RN114-1.5-02CMC 6.8MH 1.5A 2LN TH |
2,292 | 3.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.5A (Typ) | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
EV24-0.5-02-44MCMC 44MH 500MA 2LN TH |
2,354 | 3.08 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 44 mH @ 400 Hz | 500mA | 1.25Ohm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.969 L x 0.685 W (24.60mm x 17.40mm) | 1.185 (30.10mm) |
|
RI111PCCMC 6A 2LN TH |
3,389 | 26.12 |
RFQ |
Datasheet |
Tray | RI | Active | Power Line | 2 | - | - | 6A (Typ) | 42mOhm (Typ) | - | 500V | -25°C ~ 110°C | - | - | - | Through Hole | 1.929 L x 1.378 W (49.00mm x 35.00mm) | 1.350 (34.30mm) |
|
RN242-6-02-1M8CMC 1.8MH 6A 2LN TH |
2,142 | 4.59 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 20mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
|
RN214-1-02-15MCMC 15MH 1A 2LN TH |
3,737 | 2.25 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 370mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.996 (25.30mm) |
