| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN212-0.5-02-18MCMC 18MH 500MA 2LN TH |
2,830 | 2.14 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 18 mH @ 10 kHz | 500mA | 1.1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.799 (20.30mm) |
|
|
RN212-2.6-02-0M4CMC 400UH 2.6A 2LN TH |
3,163 | 2.14 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 400 µH @ 10 kHz | 2.6A | 40mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.799 (20.30mm) |
|
|
RN212-0.4-02-27MCMC 27MH 400MA 2LN TH |
3,134 | 2.16 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.4Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.799 (20.30mm) |
|
|
RN212-3.6-02-0M4CMC 400UH 3.6A 2LN TH |
3,697 | 2.16 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 400 µH @ 10 kHz | 3.6A | 27mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.799 (20.30mm) |
|
EH28-1.5-02-27M-XCMC 27MH 1.5A 2LN TH |
3,911 | 4.05 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 27 mH @ 400 Hz | 1.5A | 282mOhm | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
RN232-1.6-02-10MCMC 10MH 1.6A 2LN TH |
2,902 | 4.21 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1.6A | 170mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
RN142-2-02-6M8CMC 6.8MH 2A 2LN TH |
2,568 | 4.56 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 192mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
RN242-2-02-6M8CMC 6.8MH 2A 2LN TH |
2,528 | 4.35 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 192mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|

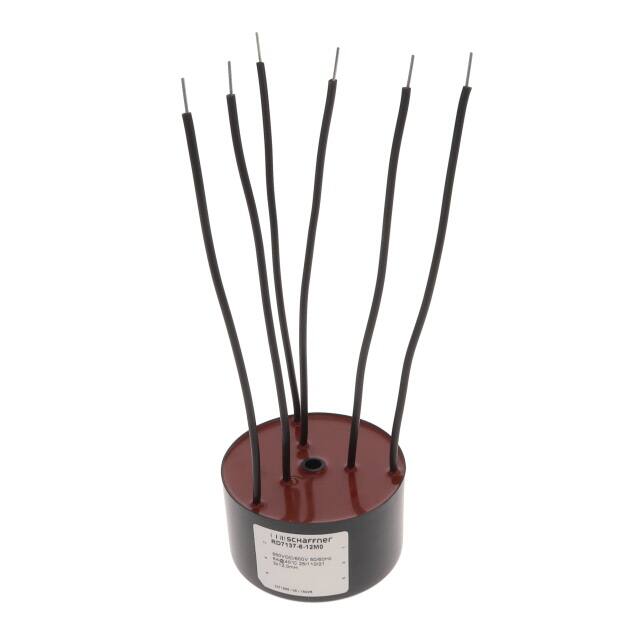

RD7137-6-12M0CMC 12MH 6A 3LN TH |
3,168 | 24.43 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 12 mH @ 1 kHz | 6A (Typ) | 60.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|
RD7147-6-6M0CMC 6MH 6A 4LN TH |
2,164 | 26.95 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 6 mH @ 400 Hz | 6A (Typ) | 45.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|

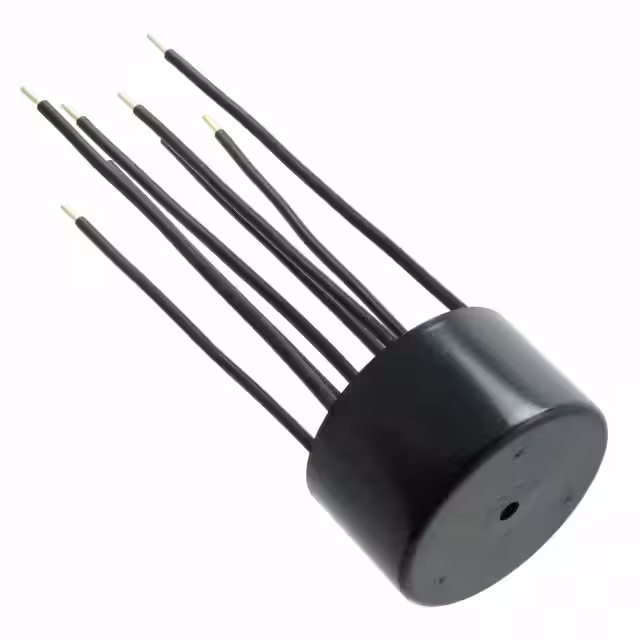

RD7147-25-0M7CMC 700UH 25A 4LN TH |
3,824 | 29.63 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 700 µH @ 1 kHz | 25A (Typ) | 3.65mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|

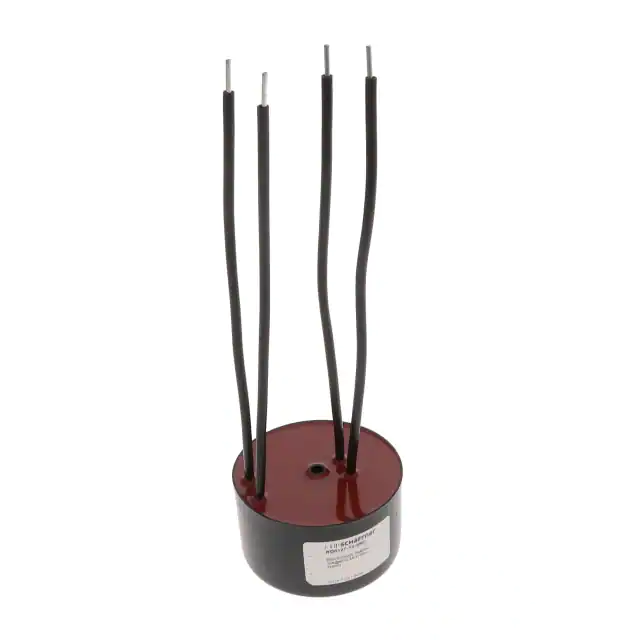

RD6127-10-9M0CMC 9MH 10A 2LN TH |
3,807 | 16.81 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 9 mH @ 400 Hz | 10A (Typ) | 25.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.362 L x 2.362 W (60.00mm x 60.00mm) | 1.398 (35.50mm) |
|

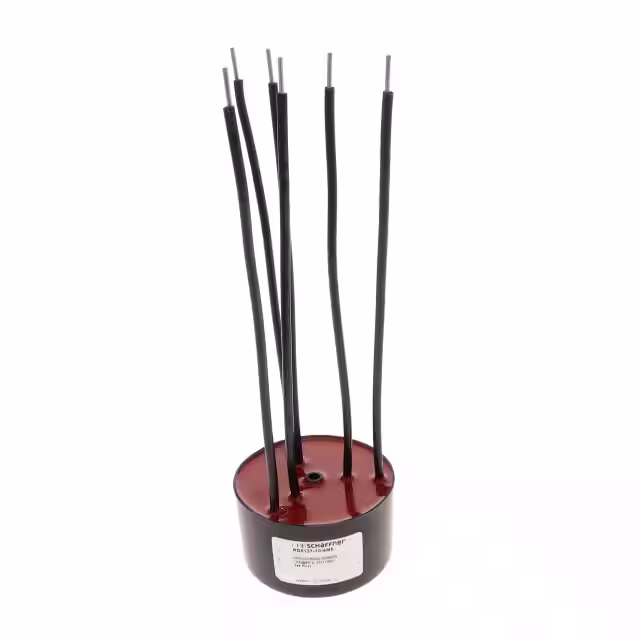

RD6137-10-4M5CMC 4.5MH 10A 3LN TH |
3,412 | 18.85 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 4.5 mH @ 400 Hz | 10A (Typ) | 18.35mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.362 L x 2.362 W (60.00mm x 60.00mm) | 1.398 (35.50mm) |
|

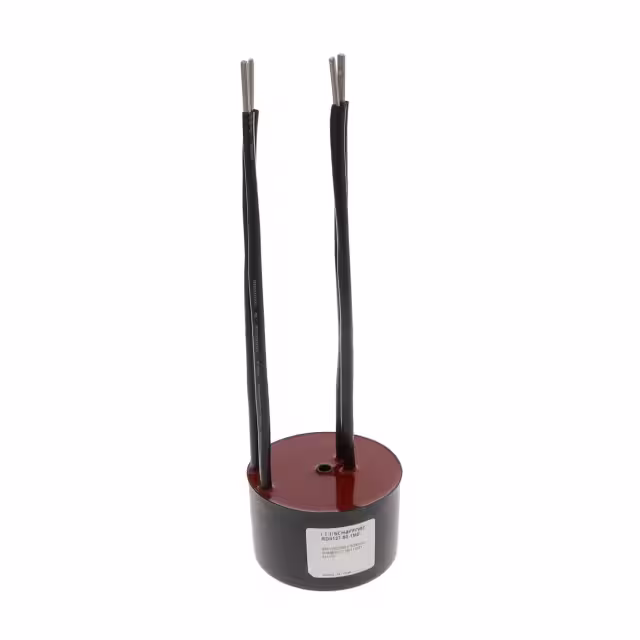

RD8127-50-1M0CMC 1MH 50A 2LN TH |
3,755 | 45.88 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 1 mH @ 1 kHz | 50A (Typ) | 2.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
RD8137-36-1M5CMC 1.5MH 36A 3LN TH |
3,923 | 47.31 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 1.5 mH @ 1 kHz | 36A (Typ) | 3.65mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
RD8147-16-3M0CMC 3MH 16A 4LN TH |
2,674 | 49.85 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 4 | - | 3 mH @ 400 Hz | 16A (Typ) | 9.25mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
EH20-0.5-02-18MCMC 18MH 500MA 2LN TH |
3,453 | 1.32 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 18 mH @ 400 Hz | 500mA | 725mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.740 (18.80mm) |
|
EH20-0.8-02-5M6CMC 5.6MH 800MA 2LN TH |
3,566 | 1.32 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 5.6 mH @ 400 Hz | 800mA | 245mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.740 (18.80mm) |
|
EH20-1.0-02-3M9CMC 3.9MH 1A 2LN TH |
2,648 | 1.33 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 3.9 mH @ 10 kHz | 1A | 168mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.740 (18.80mm) |
|
EH20-1.5-02-1M8CMC 1.8MH 1.5A 2LN TH |
2,831 | 1.33 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 1.8 mH @ 400 Hz | 1.5A | 72mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.740 (18.80mm) |
