| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EV20-0.5-02-18MCMC 18MH 500MA 2LN TH |
3,543 | 1.36 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 18 mH @ 400 Hz | 500mA | 725mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.630 W (21.00mm x 16.00mm) | 1.024 (26.00mm) |
|
EV20-0.8-02-5M6CMC 5.6MH 800MA 2LN TH |
3,494 | 1.36 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 5.6 mH @ 400 Hz | 800mA | 245mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.630 W (21.00mm x 16.00mm) | 1.024 (26.00mm) |
|
EV20-1.0-02-3M9CMC 3.9MH 1A 2LN TH |
2,064 | 1.38 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 3.9 mH @ 400 Hz | 1A | 168mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.630 W (21.00mm x 16.00mm) | 1.024 (26.00mm) |
|
EV20-1.5-02-1M8CMC 1.8MH 1.5A 2LN TH |
3,170 | 1.38 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 1.8 mH @ 10 kHz | 1.5A | 72mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.630 W (21.00mm x 16.00mm) | 1.024 (26.00mm) |
|
EH24-1.0-02-10MCMC 10MH 1A 2LN TH |
3,478 | 1.61 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 244mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.945 L x 0.945 W (24.00mm x 24.00mm) | 0.827 (21.00mm) |
|
EH24-2.0-02-2M5CMC 2.5MH 2A 2LN TH |
2,486 | 1.63 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 2.5 mH @ 400 Hz | 2A | 62mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.945 L x 0.945 W (24.00mm x 24.00mm) | 0.827 (21.00mm) |
|
EV24-0.8-02-18MCMC 18MH 800MA 2LN TH |
3,809 | 1.64 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 18 mH @ 10 kHz | 800mA | 438mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.969 L x 0.685 W (24.60mm x 17.40mm) | 1.185 (30.10mm) |
|
EV24-4.0-02-0M5CMC 500UH 4A 2LN TH |
3,528 | 2.09 |
RFQ |
Datasheet |
Bulk,Bulk | EV | Active | Power Line | 2 | - | 500 µH @ 400 Hz | 4A | 16mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.969 L x 0.685 W (24.60mm x 17.40mm) | 1.185 (30.10mm) |
|
EH28-1.0-02-36MCMC 36MH 1A 2LN TH |
3,272 | 2.07 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 36 mH @ 400 Hz | 1A | 591mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
EH28-3.0-02-5M0CMC 5MH 3A 2LN TH |
3,409 | 2.12 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 5 mH @ 400 Hz | 3A | 79mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
EH28-5.0-02-1M1CMC 1.1MH 5A 2LN TH |
2,816 | 2.16 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 1.1 mH @ 400 Hz | 5A | 27mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
EV28-1.0-02-36MCMC 36MH 1A 2LN TH |
2,472 | 2.26 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 36 mH @ 400 Hz | 1A | 591mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.150 L x 0.827 W (29.20mm x 21.00mm) | 1.406 (35.70mm) |
|

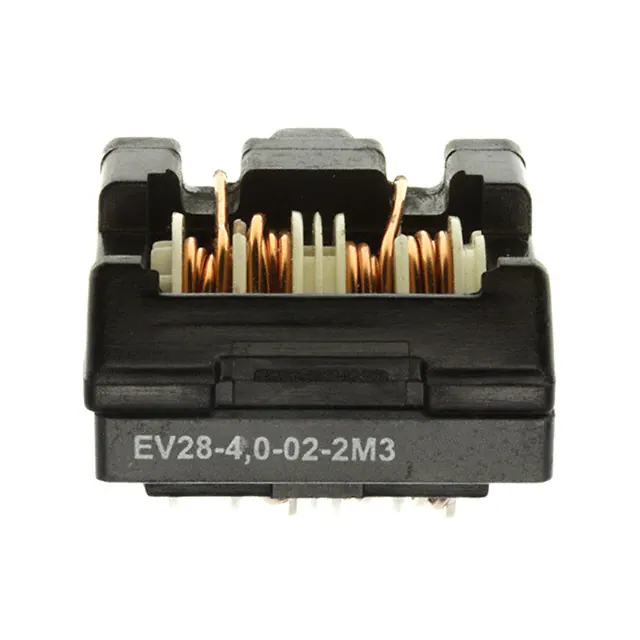

EV28-4.0-02-2M3CMC 2.3MH 4A 2LN TH |
2,449 | 2.33 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 2.3 mH @ 10 kHz | 4A | 40mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.150 L x 0.827 W (29.20mm x 21.00mm) | 1.406 (35.70mm) |
|
EV28-1.5-02-27M-XCMC 27MH 1.5A 2LN TH |
2,296 | 2.35 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 1.5A | 287mOhm | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.150 L x 0.827 W (29.20mm x 21.00mm) | 1.406 (35.70mm) |
|
EV28-5.0-02-1M1CMC 1.1MH 5A 2LN TH |
2,133 | 2.36 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 1.1 mH @ 400 Hz | 5A | 27mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.150 L x 0.827 W (29.20mm x 21.00mm) | 1.406 (35.70mm) |
|
RN112-0.5-02CMC 27MH 500MA 2LN TH |
3,631 | 2.83 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA (Typ) | 1.25Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.508 (12.90mm) |
|
RN114-2-02CMC 4.2MH 2A 2LN TH |
2,470 | 3.00 |
RFQ |
Datasheet |
Tray | RN | Obsolete | Power Line | 2 | - | 4.2 mH @ 1 kHz | 2A (Typ) | 102mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
RN214-0.8-02CMC 27MH 800MA 2LN TH |
2,360 | 3.15 |
RFQ |
Datasheet |
Tube | RN | Obsolete | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA (Typ) | 500mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.996 (25.30mm) |
|
EV35-4.0-02-5M0CMC 5MH 4A 2LN TH |
3,704 | 4.21 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 5 mH @ 10 kHz | 4A | 53mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.417 L x 0.965 W (36.00mm x 24.50mm) | 1.681 (42.70mm) |
|
EV35-1.0-02-90MCMC 90MH 1A 2LN TH |
2,392 | 4.22 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 90 mH @ 400 Hz | 1A | 628mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.417 L x 0.965 W (36.00mm x 24.50mm) | 1.681 (42.70mm) |
