| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

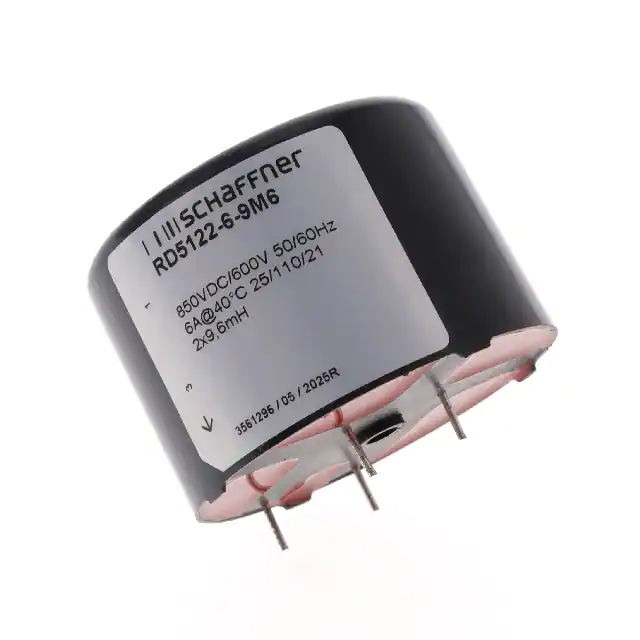

RD5122-6-9M6CMC 9.6MH 6A 2LN TH |
2,321 | 12.43 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 9.6 mH @ 1 kHz | 6A (Typ) | 52.55mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 1.969 L x 1.969 W (50.00mm x 50.00mm) | 1.398 (35.50mm) |
|
RT8122-20-3M0CMC 3MH 20A 2LN TH |
3,691 | 12.46 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 2 | - | 3 mH @ 100 kHz | 20A | 7mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | Through Hole | 2.244 Dia (57.00mm) | 1.457 (37.00mm) |
|

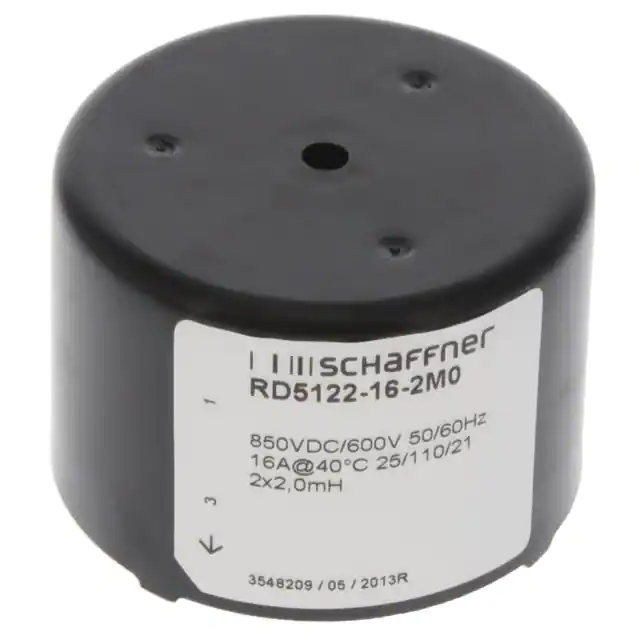

RD5122-16-2M0CMC 2MH 16A 2LN TH |
3,401 | 13.19 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 2 mH @ 400 Hz | 16A (Typ) | 9.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 1.969 L x 1.969 W (50.00mm x 50.00mm) | 1.398 (35.50mm) |
|
RT8532-16-3M0CMC 3MH 16A 3LN TH |
2,002 | 13.38 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 3 | - | 3 mH @ 100 kHz | 16A | 8mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | Through Hole | 2.205 L x 1.457 W (56.00mm x 37.00mm) | 2.362 (60.00mm) |
|
RB6122-25-0M6CMC 640UH 25A 2LN TH |
2,365 | 15.26 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 2 | - | 640 µH @ 400 Hz | 25A | 2.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.098 L x 2.020 W (53.29mm x 51.31mm) | 1.634 (41.50mm) |
|
RB6122-36-0M5CMC 450UH 36A 2LN TH |
3,717 | 18.65 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 2 | - | 450 µH @ 1 kHz | 36A | 1.5mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.402 L x 2.276 W (61.00mm x 57.80mm) | 1.496 (38.00mm) |
|
RB6132-50-0M2CMC 180UH 50A 3LN TH |
3,674 | 26.49 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 180 µH @ 1 kHz | 50A | 0.9mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.673 L x 2.634 W (67.90mm x 66.90mm) | 2.047 (52.00mm) |
|
RB6532-50-0M2CMC 180UH 50A 3LN TH |
2,965 | 27.15 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 180 µH @ 400 Hz | 50A | 0.8mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.441 L x 2.283 W (62.00mm x 58.00mm) | 2.756 (70.00mm) |
|
|
RB8532-25-0M9CMC 940UH 25A 3LN TH |
3,121 | 25.51 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 940 µH @ 400 Hz | 25A | 3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.441 L x 2.283 W (62.00mm x 58.00mm) | 2.756 (70.00mm) |
|
RN204-1-02-3M0CMC 3MH 1A 2LN TH |
2,642 | 2.84 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 192mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.551 L x 0.354 W (14.00mm x 9.00mm) | 0.575 (14.61mm) |
|
EH24-0.5-02-44MCMC 44MH 500MA 2LN TH |
3,831 | 3.00 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 44 mH @ 400 Hz | 500mA | 1.25Ohm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.945 L x 0.945 W (24.00mm x 24.00mm) | 0.827 (21.00mm) |
|
EV24-1.5-02-4M5CMC 4.5MH 1.5A 2LN TH |
2,098 | 3.10 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 4.5 mH @ 400 Hz | 1.5A | 116mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.969 L x 0.685 W (24.60mm x 17.40mm) | 1.185 (30.10mm) |
|
RN143-4-02-3M9CMC 3.9MH 4A 2LN TH |
3,986 | 4.81 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.9 mH @ 10 kHz | 4A | 59mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
RN222-0.8-02-39MCMC 39MH 800MA 2LN TH |
2,177 | 2.84 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 39 mH @ 10 kHz | 800mA | 1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
|
RT8532-12-3M6CMC 3.6MH 12A 3LN TH |
3,012 | 12.19 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 3 | - | 3.6 mH @ 100 kHz | 12A | 12mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | Through Hole | 1.929 L x 1.339 W (49.00mm x 34.00mm) | 2.087 (53.00mm) |
|

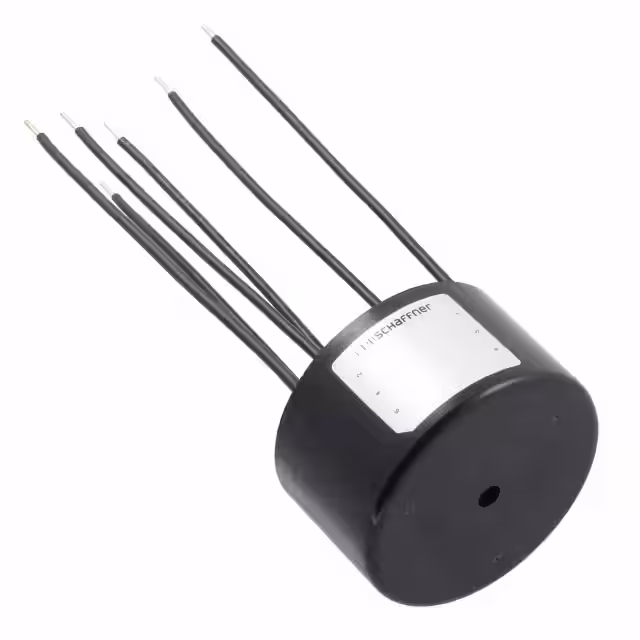

RD7137-10-6M6CMC 6.6MH 10A 3LN TH |
2,350 | 25.16 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 6.6 mH @ 400 Hz | 10A (Typ) | 21.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|

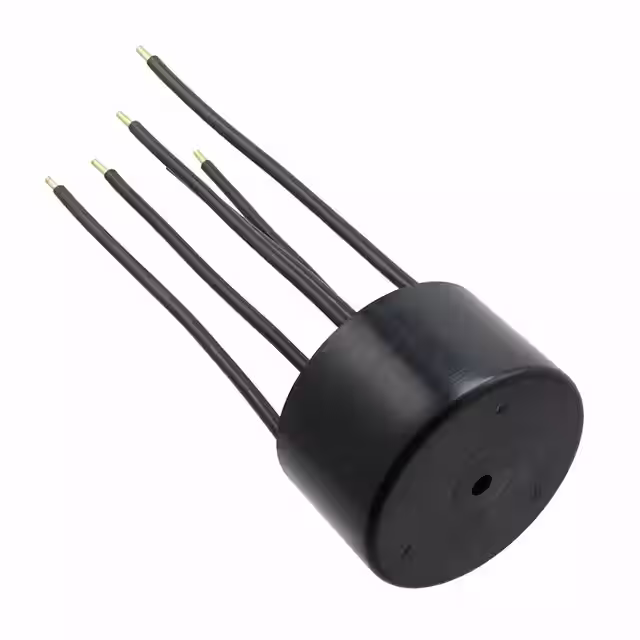

RD7137-36-0M5CMC 500UH 36A 3LN TH |
2,309 | 27.61 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 500 µH @ 400 Hz | 36A (Typ) | 2.75mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|
RB6522-36-0M5CMC 450UH 36A 2LN TH |
3,706 | 19.59 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 2 | - | 450 µH @ 400 Hz | 36A | 1.5mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 1.969 L x 1.709 W (50.00mm x 43.40mm) | 2.283 (58.00mm) |
|
RD7127-36-1M0CMC 1MH 36A 2LN TH |
3,001 | 25.56 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 1 mH @ 1 kHz | 36A (Typ) | 3.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|
RN112-0.5-02-18MCMC 18MH 500MA 2LN TH |
2,995 | 2.14 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 18 mH @ 10 kHz | 500mA | 1.1Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.508 (12.90mm) |
