| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

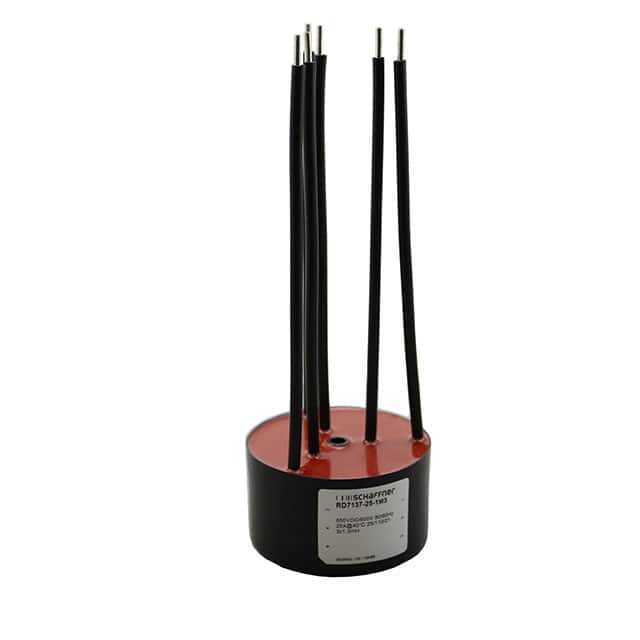

RD7137-25-1M3CMC 1.3MH 25A 3LN TH |
2,201 | 26.88 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 1.3 mH @ 400 Hz | 25A (Typ) | 4.45mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.756 L x 2.756 W (70.00mm x 70.00mm) | 1.594 (40.50mm) |
|
RB8522-36-1M5CMC 1.5MH 36A 2LN TH |
3,745 | 32.66 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 2 | - | 1.5 mH @ 400 Hz | 36A | 3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.362 L x 1.988 W (60.00mm x 50.50mm) | 3.150 (80.00mm) |
|
RD8127-16-12M0CMC 12MH 16A 2LN TH |
2,379 | 41.34 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 12 mH @ 1 kHz | 16A (Typ) | 20.05mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
|
RD8127-36-3M0CMC 3MH 36A 2LN TH |
2,574 | 44.63 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 3 mH @ 400 Hz | 36A (Typ) | 4.55mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
RD8127-64-0M8CMC 800UH 64A 2LN TH |
3,766 | 47.53 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 800 µH @ 400 Hz | 64A (Typ) | 1.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
RC112-0.4-15MCMC 15MH 400MA 2LN TH |
489 | 1.51 |
RFQ |
Datasheet |
Bulk | RC | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 400mA | 1.35Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | Through Hole | 0.689 L x 0.689 W (17.50mm x 17.50mm) | 0.315 (8.00mm) |
|
|
RC112-0.3-30MCMC 30MH 300MA 2LN TH |
444 | 1.51 |
RFQ |
Datasheet |
Bulk | RC | Active | Power Line | 2 | - | 30 mH @ 10 kHz | 300mA | 2.2Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | Through Hole | 0.689 L x 0.689 W (17.50mm x 17.50mm) | 0.315 (8.00mm) |
|
|
RC112-0.35-22MCMC 22MH 350MA 2LN TH |
252 | 1.51 |
RFQ |
Datasheet |
Bulk | RC | Active | Power Line | 2 | - | 22 mH @ 10 kHz | 350mA | 1.9Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | Through Hole | 0.689 L x 0.689 W (17.50mm x 17.50mm) | 0.315 (8.00mm) |
|
RN218-1.1-02-15MCMC 15MH 1.1A 2LN TH |
397 | 2.54 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 1.1A | 420mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.799 (20.30mm) |
|
RN116-1-02-15MCMC 15MH 1A 2LN TH |
334 | 2.60 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 260mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
RN152-1-02-68MCMC 68MH 1A 2LN TH |
3,376 | 6.44 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 68 mH @ 10 kHz | 1A | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.693 L x 1.646 W (43.00mm x 41.80mm) | 0.996 (25.30mm) |
|
RT8132-8-4M8CMC 4.8MH 8A 3LN TH |
3,530 | 10.61 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 3 | - | 4.8 mH @ 100 kHz | 8A | 17mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | Through Hole | - | 1.339 (34.00mm) |
|
RB6132-16-0M8CMC 800UH 16A 3LN TH |
2,505 | 18.93 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 800 µH @ 400 Hz | 16A | 4.6mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.315 L x 2.276 W (58.80mm x 57.80mm) | 1.890 (48.00mm) |
|

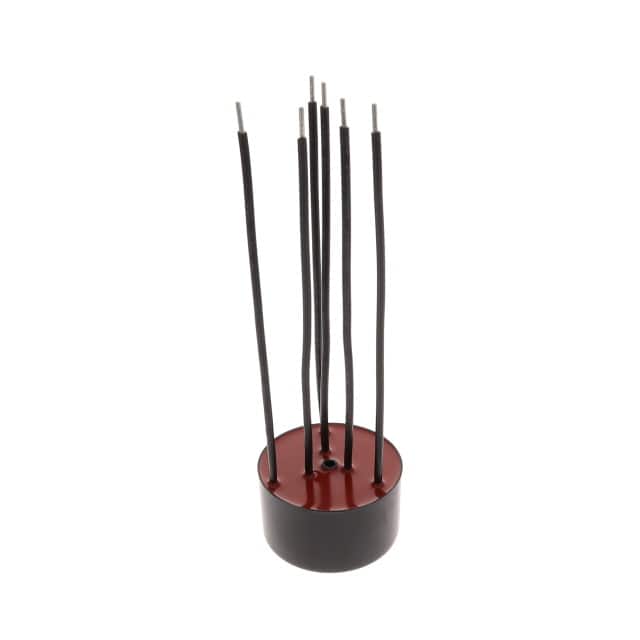

RD6137-16-1M5CMC 1.5MH 16A 3LN TH |
2,333 | 19.21 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 1.5 mH @ 400 Hz | 16A (Typ) | 8.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 2.362 L x 2.362 W (60.00mm x 60.00mm) | 1.398 (35.50mm) |
|

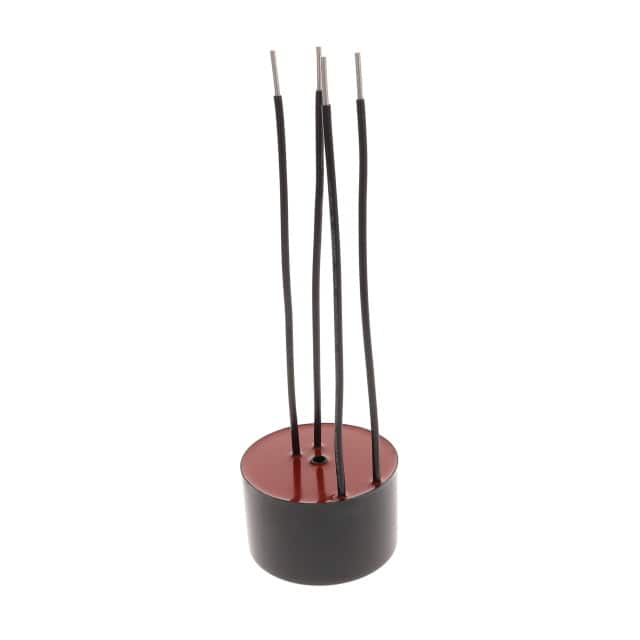

RD8127-25-5M0CMC 5MH 25A 2LN TH |
3,693 | 42.57 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 5 mH @ 400 Hz | 25A (Typ) | 8.45mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 3.150 L x 3.150 W (80.00mm x 80.00mm) | 1.988 (50.50mm) |
|
RN212-0.5-02-15MCMC 15MH 500MA 2LN TH |
496 | 2.11 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 700mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.799 (20.30mm) |
|
RN112-0.5-02-15MCMC 15MH 500MA 2LN TH |
173 | 2.11 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 700mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.508 (12.90mm) |
|
|
RN212-2-02-1M0CMC 1MH 2A 2LN TH |
508 | 2.14 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.799 (20.30mm) |
|
|
RN112-2.6-02-0M4CMC 400UH 2.6A 2LN TH |
336 | 2.14 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 400 µH @ 10 kHz | 2.6A | 40mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.508 (12.90mm) |
|
|
RN112-0.4-02-27MCMC 27MH 400MA 2LN TH |
398 | 2.16 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.4Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.508 (12.90mm) |
