| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

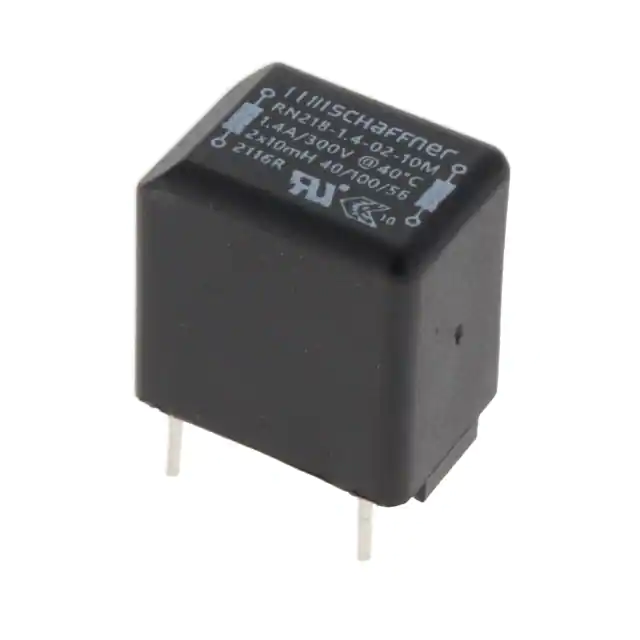

RN218-1.4-02-10MCMC 10MH 1.4A 2LN TH |
3,663 | 2.54 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1.4A | 330mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.709 L x 0.492 W (18.00mm x 12.50mm) | 0.799 (20.30mm) |
|

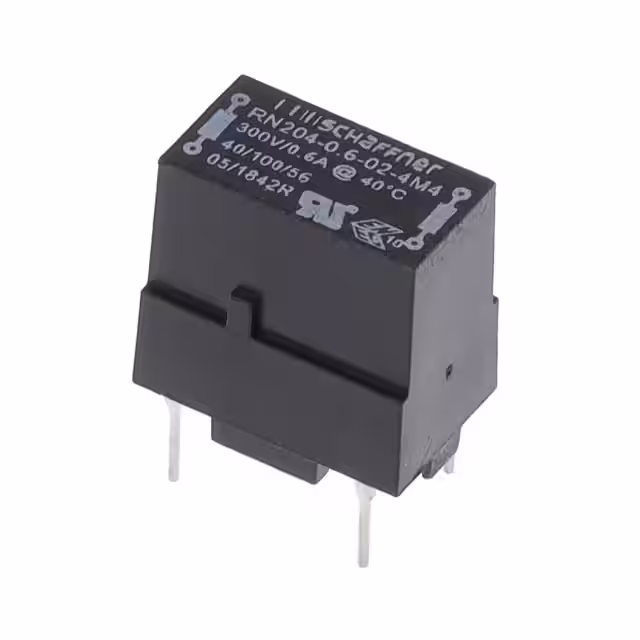

RN204-0.6-02-4M4CMC 4.4MH 600MA 2LN TH |
504 | 2.81 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 350mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.551 L x 0.354 W (14.00mm x 9.00mm) | 0.575 (14.61mm) |
|

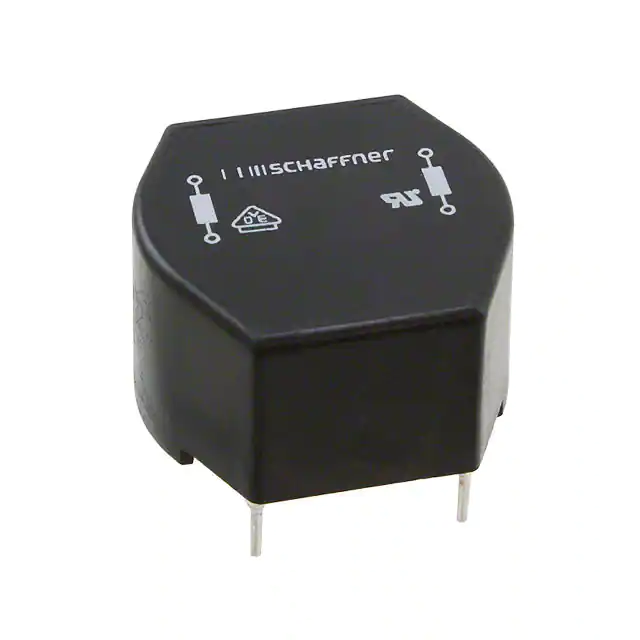

RN122-2.5-02-5M6CMC 5.6MH 2.5A 2LN TH |
2,584 | 2.90 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2.5A | 110mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|

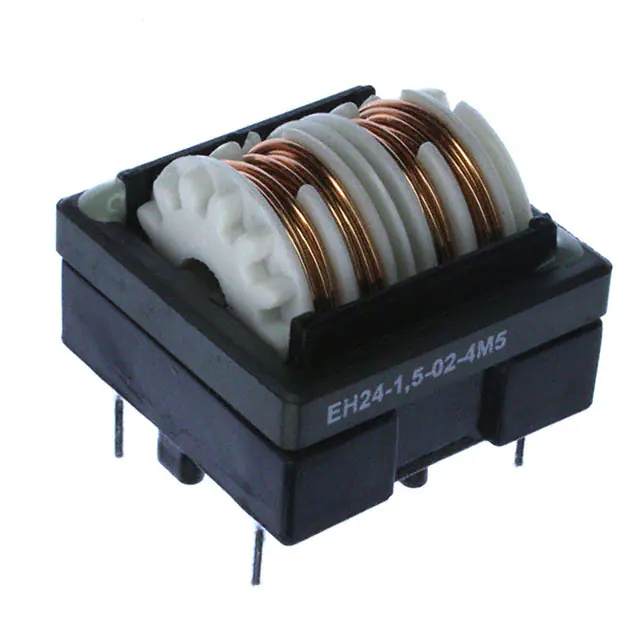

EH24-1.5-02-4M5CMC 4.5MH 1.5A 2LN TH |
2,146 | 3.02 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 4.5 mH @ 400 Hz | 1.5A | 116mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.945 L x 0.945 W (24.00mm x 24.00mm) | 0.827 (21.00mm) |
|
EV24-1.0-02-10MCMC 10MH 1A 2LN TH |
2,492 | 3.10 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 10 mH @ 400 Hz | 1A | 244mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.969 L x 0.685 W (24.60mm x 17.40mm) | 1.185 (30.10mm) |
|
EH24-4.0-02-0M5CMC 500UH 4A 2LN TH |
490 | 3.13 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 500 µH @ 10 kHz | 4A | 16mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.945 L x 0.945 W (24.00mm x 24.00mm) | 0.827 (21.00mm) |
|
EV24-3.0-02-1M2CMC 1.2MH 3A 2LN TH |
555 | 3.16 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 1.2 mH @ 400 Hz | 3A | 29mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.969 L x 0.685 W (24.60mm x 17.40mm) | 1.185 (30.10mm) |
|
EH28-4.0-02-2M3CMC 2.3MH 4A 2LN TH |
2,827 | 4.02 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 2.3 mH @ 10 kHz | 4A | 40mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
EH28-4.0-02-3M5-XCMC 3.5MH 4A 2LN TH |
185 | 4.16 |
RFQ |
Datasheet |
Tray | EH | Active | Power Line | 2 | - | 3.5 mH @ 400 Hz | 4A | 52mOhm | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.102 L x 1.102 W (28.00mm x 28.00mm) | 0.941 (23.90mm) |
|
EV28-1.5-02-20MCMC 20MH 1.5A 2LN TH |
2,683 | 4.24 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 20 mH @ 400 Hz | 1.5A | 282mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.150 L x 0.827 W (29.20mm x 21.00mm) | 1.406 (35.70mm) |
|
RN242-1-02-33MCMC 33MH 1A 2LN TH |
174 | 4.29 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 810mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
EV28-3.0-02-9M0-XCMC 9MH 3A 2LN TH |
357 | 4.48 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 9 mH @ 400 Hz | 3A | 115mOhm | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.150 L x 0.827 W (29.20mm x 21.00mm) | 1.406 (35.70mm) |
|

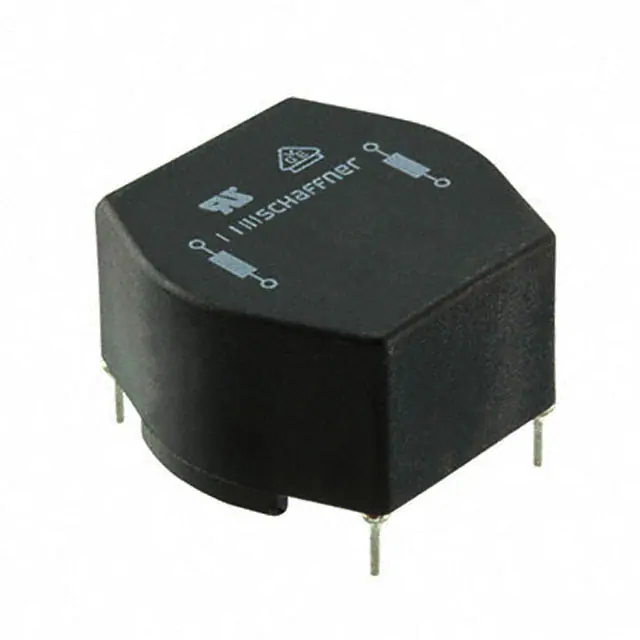

RN142-1-02-33MCMC 33MH 1A 2LN TH |
356 | 4.51 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 33 mH @ 10 kHz | 1A | 810mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
RN143-2-02-10MCMC 10MH 2A 2LN TH |
862 | 4.72 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 2A | 240mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
RN152-8-02-2M7CMC 2.7MH 8A 2LN TH |
466 | 6.95 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 22mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.693 L x 1.646 W (43.00mm x 41.80mm) | 0.996 (25.30mm) |
|
EH35-5.0-02-3M6CMC 3.6MH 5A 2LN TH |
3,263 | 7.36 |
RFQ |
Datasheet |
Tube | EH | Active | Power Line | 2 | - | 3.6 mH @ 400 Hz | 5A | 33mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.417 L x 1.417 W (36.00mm x 36.00mm) | 1.130 (28.70mm) |
|
RT8522-12-5M0CMC 5MH 12A 2LN TH |
101 | 10.48 |
RFQ |
Datasheet |
Tray | RT | Active | Power Line | 2 | - | 5 mH @ 100 kHz | 12A | 14mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | Through Hole | 1.969 L x 1.260 W (50.00mm x 32.00mm) | 2.047 (52.00mm) |
|

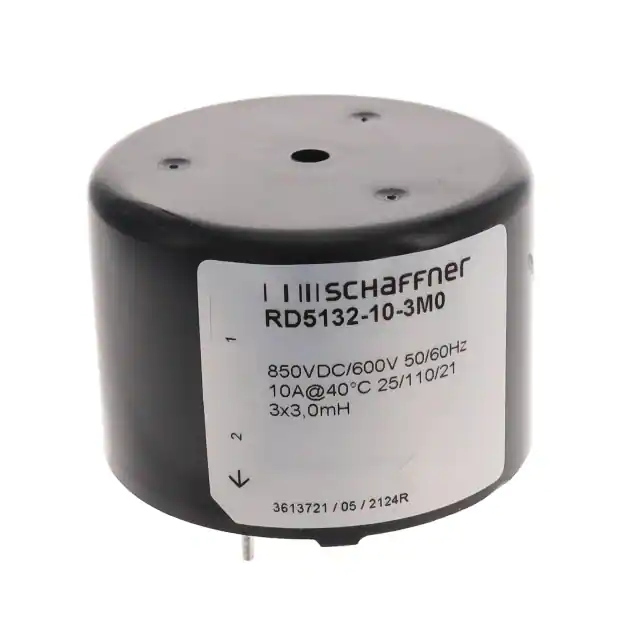

RD5132-10-3M0CMC 3MH 10A 3LN TH |
3,640 | 14.26 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 3 mH @ 400 Hz | 10A (Typ) | 17.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 1.969 L x 1.969 W (50.00mm x 50.00mm) | 1.398 (35.50mm) |
|

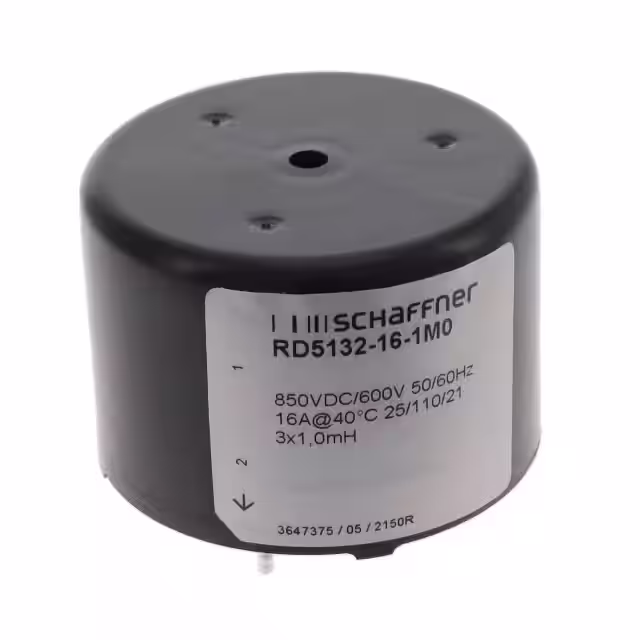

RD5132-16-1M0CMC 1MH 16A 3LN TH |
209 | 14.54 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 3 | - | 1 mH @ 400 Hz | 16A (Typ) | 6.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 1.969 L x 1.969 W (50.00mm x 50.00mm) | 1.398 (35.50mm) |
|
RB8522-16-3M0CMC 3MH 16A 2LN TH |
198 | 18.66 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 2 | - | 3 mH @ 400 Hz | 16A | 8.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 1.969 L x 1.709 W (50.00mm x 43.40mm) | 2.283 (58.00mm) |
