| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN114-3-02-2M0CMC 2MH 3A 2LN TH |
780 | 2.28 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 2 mH @ 10 kHz | 3A | 52mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
EV20-0.3-02-33MCMC 33MH 300MA 2LN TH |
2,551 | 2.60 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 33 mH @ 10 kHz | 300mA | 1.78Ohm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 0.827 L x 0.630 W (21.00mm x 16.00mm) | 1.024 (26.00mm) |
|
RN122-3-02-4M5CMC 4.5MH 3A 2LN TH |
3,984 | 2.70 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 4.5 mH @ 10 kHz | 3A | 80mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|
|
RN122-2-02-6M8CMC 6.8MH 2A 2LN TH |
2,937 | 2.73 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 156mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
|

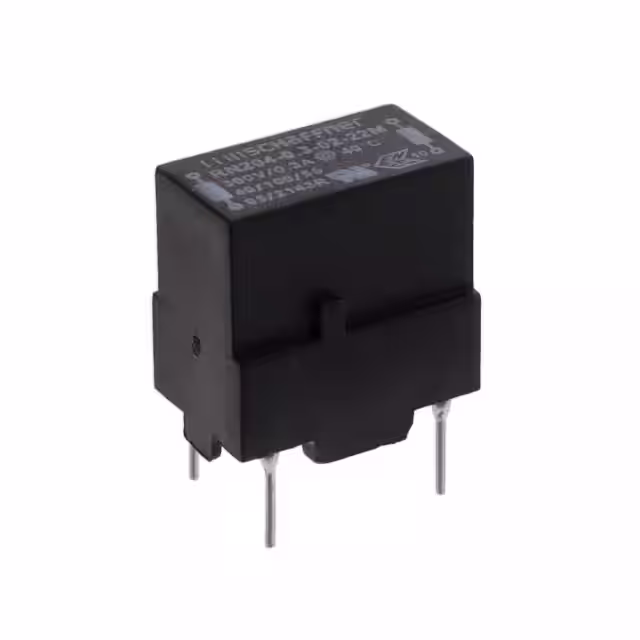

RN204-0.3-02-22MCMC 22MH 300MA 2LN TH |
977 | 2.86 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 22 mH @ 10 kHz | 300mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.551 L x 0.354 W (14.00mm x 9.00mm) | 0.575 (14.61mm) |
|
RN222-4-02-3M3CMC 3.3MH 4A 2LN TH |
3,845 | 3.19 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 46mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.165 (29.60mm) |
|
EV28-2.0-02-11MCMC 11MH 2A 2LN TH |
500 | 4.29 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 11 mH @ 400 Hz | 2A | 162mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.150 L x 0.827 W (29.20mm x 21.00mm) | 1.406 (35.70mm) |
|
EV28-3.0-02-5M0CMC 5MH 3A 2LN TH |
3,648 | 4.32 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 5 mH @ 400 Hz | 3A | 79mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.150 L x 0.827 W (29.20mm x 21.00mm) | 1.406 (35.70mm) |
|
RN242-4-02-3M3CMC 3.3MH 4A 2LN TH |
3,275 | 4.43 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 67mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.220 L x 0.709 W (31.00mm x 18.00mm) | 1.362 (34.60mm) |
|
RN142-6-02-1M8CMC 1.8MH 6A 2LN TH |
2,297 | 4.83 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 20mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.303 L x 1.280 W (33.10mm x 32.50mm) | 0.787 (20.00mm) |
|
RN152-4-02-6M8CMC 6.8MH 4A 2LN TH |
103 | 6.63 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4A | 87mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.693 L x 1.646 W (43.00mm x 41.80mm) | 0.996 (25.30mm) |
|
EV35-5.0-02-3M6CMC 3.6MH 5A 2LN TH |
138 | 6.86 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 3.6 mH @ 400 Hz | 5A | 33mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.417 L x 0.965 W (36.00mm x 24.50mm) | 1.681 (42.70mm) |
|
|
RN152-6-02-3M9CMC 3.9MH 6A 2LN TH |
478 | 6.88 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 3.9 mH @ 10 kHz | 6A | 42mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.693 L x 1.646 W (43.00mm x 41.80mm) | 0.996 (25.30mm) |
|
EV35-3.0-02-10MCMC 10MH 3A 2LN TH |
145 | 7.40 |
RFQ |
Datasheet |
Bulk | EV | Active | Power Line | 2 | - | 10 mH @ 400 Hz | 3A | 72mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | Through Hole | 1.417 L x 0.965 W (36.00mm x 24.50mm) | 1.681 (42.70mm) |
|
|
RN152-10-02-1M8CMC 1.8MH 10A 2LN TH |
2,783 | 7.52 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 1.8 mH @ 10 kHz | 10A | 14mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 1.693 L x 1.646 W (43.00mm x 41.80mm) | 0.996 (25.30mm) |
|

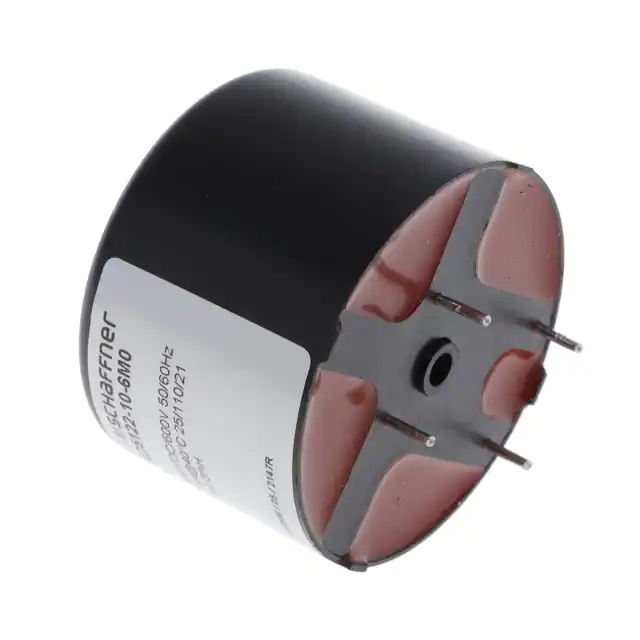

RD5122-10-6M0CMC 6MH 10A 2LN TH |
123 | 12.93 |
RFQ |
Datasheet |
Tray | RD | Active | Power Line | 2 | - | 6 mH @ 400 Hz | 10A (Typ) | 24.25mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | Through Hole | 1.969 L x 1.969 W (50.00mm x 50.00mm) | 1.398 (35.50mm) |
|
RB6522-50-0M3CMC 250UH 50A 2LN TH |
103 | 20.42 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 2 | - | 250 µH @ 400 Hz | 50A | 0.9mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 1.969 L x 1.709 W (50.00mm x 43.40mm) | 2.283 (58.00mm) |
|
RB6132-36-0M4CMC 420UH 36A 3LN TH |
126 | 25.55 |
RFQ |
Datasheet |
Bulk | RB | Active | Power Line | 3 | - | 420 µH @ 400 Hz | 36A | 1.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | Through Hole | 2.673 L x 2.634 W (67.90mm x 66.90mm) | 2.047 (52.00mm) |
|
RC212-0.7-4M7CMC 4.7MH 700MA 2LN TH |
3,252 | 1.51 |
RFQ |
Datasheet |
Bulk | RC | Active | Power Line | 2 | - | 4.7 mH @ 10 kHz | 700mA | 440mOhm | - | 250V | -40°C ~ 125°C | - | VDE | - | Through Hole | 0.602 L x 0.291 W (15.30mm x 7.40mm) | 0.693 (17.60mm) |
|
|
RN114-1-02-15MCMC 15MH 1A 2LN TH |
3,218 | 2.25 |
RFQ |
Datasheet |
Tube | RN | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 370mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.531 (13.50mm) |
