| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMW65R027M1HXKSA1MOSFET 650V NCH SIC TRENCH |
136 | 28.06 |
RFQ |
Tube | - | Active | - | - | - | 47A (Tc) | - | - | - | - | - | - | - | - | - | - | |
|

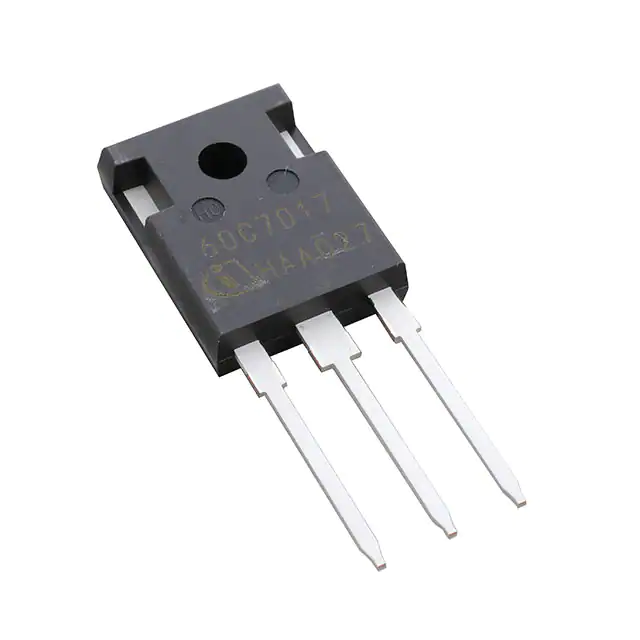

IPW60R017C7XKSA1HIGH POWER_NEW |
224 | 29.88 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 109A (Tc) | 10V | 17mOhm @ 58.2A, 10V | 4V @ 2.91mA | 240 nC @ 10 V | ±20V | 9890 pF @ 400 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPD50R2K0CEAUMA1MOSFET N-CH 500V 2.4A TO252-3 |
2,500 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ CE | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.4A (Tc) | 13V | 2Ohm @ 600mA, 13V | 3.5V @ 50µA | 6 nC @ 10 V | ±20V | 124 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSC0909NSATMA1MOSFET N-CH 34V 12A/44A TDSON |
9,772 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 34 V | 12A (Ta), 44A (Tc) | 4.5V, 10V | 9.2mOhm @ 20A, 10V | 2V @ 250µA | 15 nC @ 10 V | ±20V | 1110 pF @ 15 V | - | 2.5W (Ta), 27W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD25N06S4L30ATMA2MOSFET N-CH 60V 25A TO252-31 |
5,653 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 25A (Tc) | 4.5V, 10V | 30mOhm @ 25A, 10V | 2.2V @ 8µA | 16.3 nC @ 10 V | ±16V | 1220 pF @ 25 V | - | 29W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFR024NTRLPBFMOSFET N-CH 55V 17A DPAK |
5,765 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 17A (Tc) | 10V | 75mOhm @ 10A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 370 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
BSZ0909NSATMA1MOSFET N-CH 34V 9A/36A 8TSDSON |
54,990 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 34 V | 9A (Ta), 36A (Tc) | 4.5V, 10V | 12mOhm @ 20A, 10V | 2V @ 250µA | 17 nC @ 10 V | ±20V | 1310 pF @ 15 V | - | 2.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SPD08P06PGBTMA1MOSFET P-CH 60V 8.83A TO252-3 |
1,355 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 8.83A (Ta) | 6.2V | 300mOhm @ 10A, 6.2V | 4V @ 250µA | 13 nC @ 10 V | ±20V | 420 pF @ 25 V | - | 42W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
BSC097N06NSATMA1MOSFET N-CH 60V 46A TDSON-8-6 |
39,720 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 46A (Tc) | 6V, 10V | 9.7mOhm @ 40A, 10V | 3.3V @ 14µA | 15 nC @ 10 V | ±20V | 1075 pF @ 30 V | - | 2.5W (Ta), 36W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLHM620TRPBFMOSFET N-CH 20V 26A/40A PQFN |
29,875 | 1.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 26A (Ta), 40A (Tc) | 2.5V, 10V | 2.5mOhm @ 20A, 4.5V | 1.1V @ 50µA | 78 nC @ 4.5 V | ±12V | 3620 pF @ 10 V | - | 2.7W (Ta), 37W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSZ0589NSATMA1MOSFET N-CH 30V 17A TSDSON |
10,000 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 17A (Ta) | 4.5V, 10V | 4.4mOhm @ 8A, 10V | 2V @ 250µA | 15 nC @ 10 V | ±20V | 950 pF @ 15 V | - | 2.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD5N25S3430ATMA1MOSFET N-CH 250V 5A TO252-3 |
2,500 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 5A (Tc) | 10V | 430mOhm @ 5A, 10V | 4V @ 13µA | 6.2 nC @ 10 V | ±20V | 422 pF @ 25 V | - | 41W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF2804STRLPBFMOSFET N-CH 40V 75A D2PAK |
2,799 | 4.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 2mOhm @ 75A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6450 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRLU3636PBFMOSFET N-CH 60V 50A IPAK |
7,195 | 2.65 |
RFQ |
Datasheet |
Tube | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 4.5V, 10V | 6.8mOhm @ 50A, 10V | 2.5V @ 100µA | 49 nC @ 4.5 V | ±16V | 3779 pF @ 50 V | - | 143W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
BSC030N03MSGATMA1MOSFET N-CH 30V 21A/100A TDSON |
152 | 1.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta), 100A (Tc) | 4.5V, 10V | 3mOhm @ 30A, 10V | 2V @ 250µA | 73 nC @ 10 V | ±20V | 5700 pF @ 15 V | - | 2.5W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRF6665TRPBFMOSFET N-CH 100V 4.2A DIRECTFET |
28,532 | 1.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.2A (Ta), 19A (Tc) | 10V | 62mOhm @ 5A, 10V | 5V @ 250µA | 13 nC @ 10 V | ±20V | 530 pF @ 25 V | - | 2.2W (Ta), 42W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BSC0901NSIATMA1MOSFET N-CH 30V 28A/100A TDSON |
5,000 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Ta), 100A (Tc) | 4.5V, 10V | 2mOhm @ 30A, 10V | 2.2V @ 250µA | 20 nC @ 15 V | ±20V | 2600 pF @ 15 V | - | 2.5W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD25CN10NGATMA1MOSFET N-CH 100V 35A TO252-3 |
3,427 | 1.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 10V | 25mOhm @ 35A, 10V | 4V @ 39µA | 31 nC @ 10 V | ±20V | 2070 pF @ 50 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPD35N10S3L26ATMA1MOSFET N-CH 100V 35A TO252-31 |
22,334 | 1.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 4.5V, 10V | 24mOhm @ 35A, 10V | 2.4V @ 39µA | 39 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
BSZ031NE2LS5ATMA1MOSFET N-CH 25V 19A/40A TSDSON |
5,000 | 1.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 19A (Ta), 40A (Tc) | 4.5V, 10V | 3.1mOhm @ 20A, 10V | 2V @ 250µA | 18.3 nC @ 10 V | ±16V | 1230 pF @ 12 V | - | 2.1W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
