| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPW60R125C6FKSA1MOSFET N-CH 600V 30A TO247-3 |
360 | 7.78 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 125mOhm @ 14.5A, 10V | 3.5V @ 960µA | 96 nC @ 10 V | ±20V | 2127 pF @ 100 V | - | 219W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPP60R070CFD7XKSA1MOSFET N-CH 650V 31A TO220-3 |
4,880 | 8.10 |
RFQ |
Datasheet |
Tube | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 31A (Tc) | 10V | 70mOhm @ 15.1A, 10V | 4.5V @ 760µA | 67 nC @ 10 V | ±20V | 2721 pF @ 400 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SPW24N60C3FKSA1MOSFET N-CH 650V 24.3A TO247-3 |
2,535 | 8.56 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24.3A (Tc) | 10V | 160mOhm @ 15.4A, 10V | 3.9V @ 1.2mA | 135 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPW60R099CPAFKSA1MOSFET N-CH 600V 31A TO247-3 |
143 | 10.54 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 31A (Tc) | 10V | 105mOhm @ 18A, 10V | 3.5V @ 1.2mA | 80 nC @ 10 V | ±20V | 2800 pF @ 100 V | - | 255W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IMZ120R350M1HXKSA1SICFET N-CH 1.2KV 4.7A TO247-4 |
234 | 11.18 |
RFQ |
Datasheet |
Tube | CoolSiC™ | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 4.7A (Tc) | 15V, 18V | 350mOhm @ 2A, 18V | 5.7V @ 1mA | 5.3 nC @ 18 V | +23V, -7V | 182 pF @ 800 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPP410N30NAKSA1MOSFET N-CH 300V 44A TO220-3 |
292 | 11.53 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 44A (Tc) | 10V | 41mOhm @ 44A, 10V | 4V @ 270µA | 87 nC @ 10 V | ±20V | 7180 pF @ 100 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

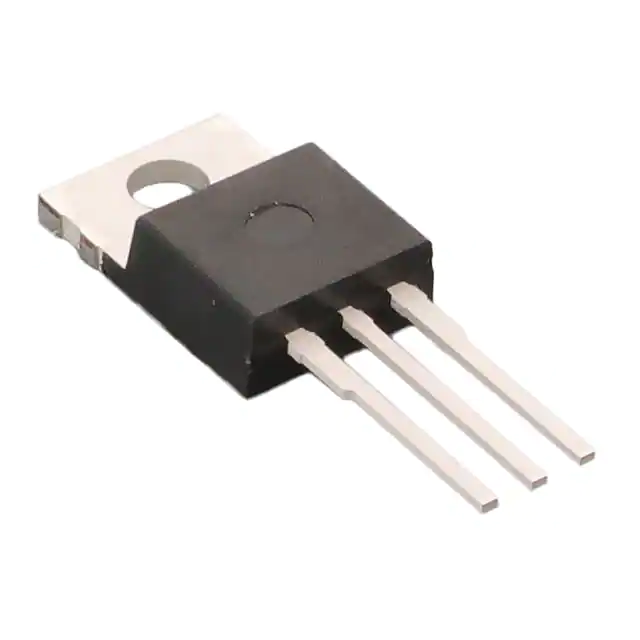

IPP65R115CFD7AAKSA1MOSFET N-CH 650V 21A TO220-3 |
432 | 7.57 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 21A (Tc) | 10V | 115mOhm @ 9.7A, 10V | 4.5V @ 490µA | 41 nC @ 10 V | ±20V | 1950 pF @ 400 V | - | 114W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|

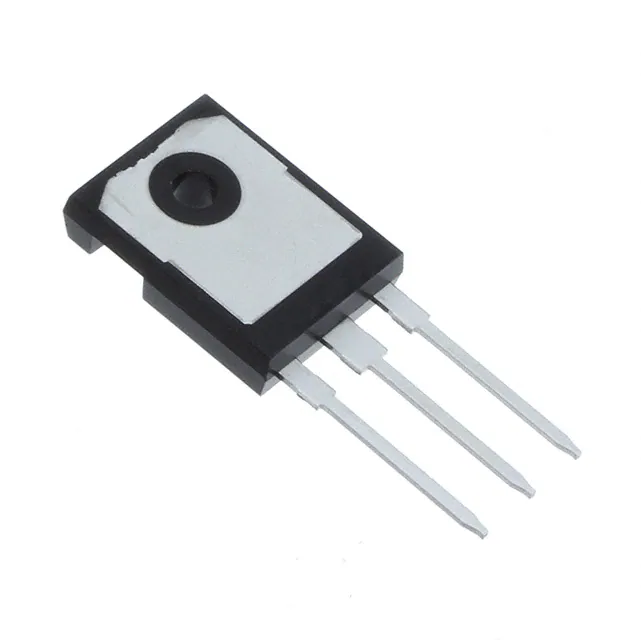

IPW60R090CFD7XKSA1MOSFET N-CH 600V 25A TO247-3 |
119 | 7.90 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 90mOhm @ 11.4A, 10V | 4.5V @ 570µA | 51 nC @ 10 V | ±20V | 2103 pF @ 400 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPP65R099CFD7AAKSA1MOSFET N-CH 650V 24A TO220-3 |
346 | 8.46 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 99mOhm @ 12.5A, 10V | 4.5V @ 630µA | 53 nC @ 10 V | ±20V | 2513 pF @ 400 V | - | 127W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
|
IPP60R022S7XKSA1MOSFET N-CH 600V 23A TO220-3 |
964 | 18.10 |
RFQ |
Tube | CoolMOS™S7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 12V | 22mOhm @ 23A, 12V | 4.5V @ 1.44mA | 150 nC @ 12 V | ±20V | 5639 pF @ 300 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
IMZ120R060M1HXKSA1SICFET N-CH 1.2KV 36A TO247-4 |
1,074 | 18.32 |
RFQ |
Datasheet |
Tube | CoolSiC™ | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 36A (Tc) | 15V, 18V | 78mOhm @ 13A, 18V | 5.7V @ 5.6mA | 31 nC @ 18 V | +23V, -7V | 1060 pF @ 800 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

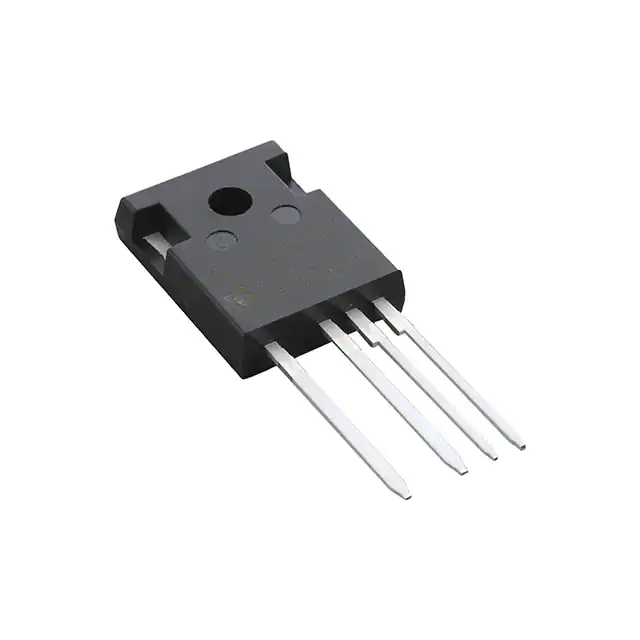

IMZA65R048M1HXKSA1MOSFET 650V NCH SIC TRENCH |
1,432 | 19.20 |
RFQ |
Tube | - | Active | - | - | - | 39A (Tc) | - | - | - | - | - | - | - | - | - | - | |
|
|
IPW65R048CFDAFKSA1MOSFET N-CH 650V 63.3A TO247-3 |
221 | 21.49 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 63.3A (Tc) | 10V | 48mOhm @ 29.4A, 10V | 4.5V @ 2.9mA | 270 nC @ 10 V | ±20V | 7440 pF @ 100 V | - | 500W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPWS65R075CFD7AXKSA1MOSFET N-CH 650V 32A TO247-3-41 |
208 | 12.67 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 75mOhm @ 16.4A, 10V | 4.5V @ 820µA | 68 nC @ 10 V | ±20V | 3288 pF @ 400 V | - | 171W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
|

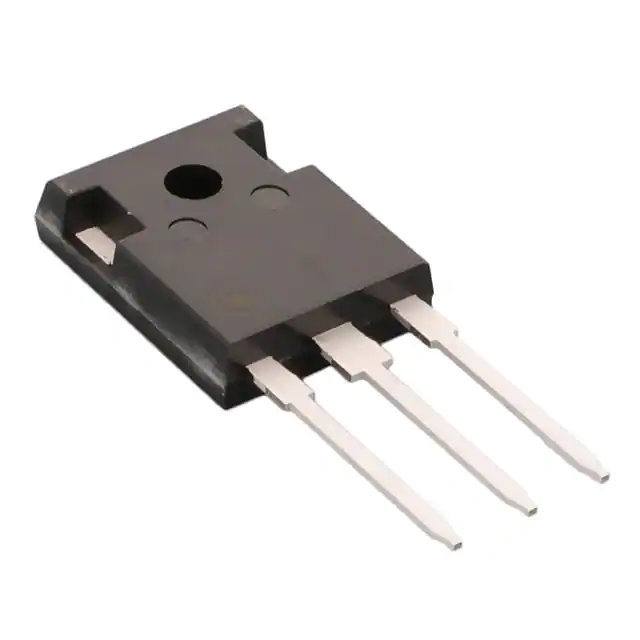

IPWS65R050CFD7AXKSA1MOSFET N-CH 650V 45A TO247-3-41 |
106 | 14.39 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 45A (Tc) | 10V | 50mOhm @ 24.8A, 10V | 4.5V @ 1.24mA | 102 nC @ 10 V | ±20V | 4975 pF @ 400 V | - | 227W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPW65R035CFD7AXKSA1MOSFET N-CH 650V 63A TO247-3-41 |
239 | 22.29 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 63A (Tc) | 10V | 35mOhm @ 35.8A, 10V | 4.5V @ 1.79mA | 145 nC @ 10 V | ±20V | 7149 pF @ 400 V | - | 305W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IRF6712STRPBFMOSFET N-CH 25V 17A DIRECTFET |
4,876 | 1.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 17A (Ta), 68A (Tc) | 4.5V, 10V | 4.9mOhm @ 17A, 10V | 2.4V @ 50µA | 18 nC @ 4.5 V | ±20V | 1570 pF @ 13 V | - | 2.2W (Ta), 36W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IPD80R2K0P7ATMA1MOSFET N-CH 800V 3A TO252-3 |
2,000 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 3A (Tc) | 10V | 2Ohm @ 940mA, 10V | 3.5V @ 50µA | 9 nC @ 10 V | ±20V | 175 pF @ 500 V | - | 24W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPU80R1K4P7AKMA1MOSFET N-CH 800V 4A TO251-3 |
1,455 | 1.43 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.4Ohm @ 1.4A, 10V | 3.5V @ 700µA | 10.05 nC @ 10 V | ±20V | 250 pF @ 500 V | Super Junction | 32W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF6662TRPBFMOSFET N-CH 100V 8.3A DIRECTFET |
7,560 | 2.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 8.3A (Ta), 47A (Tc) | 10V | 22mOhm @ 8.2A, 10V | 4.9V @ 100µA | 31 nC @ 10 V | ±20V | 1360 pF @ 25 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
