| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPP057N08N3GXKSA1MOSFET N-CH 80V 80A TO220-3 |
1,473 | 2.90 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 80A (Tc) | 6V, 10V | 5.7mOhm @ 80A, 10V | 3.5V @ 90µA | 69 nC @ 10 V | ±20V | 4750 pF @ 40 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPP052N08N5AKSA1MOSFET N-CH 80V 80A TO220-3 |
3,760 | 2.93 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 80A (Tc) | 6V, 10V | 5.2mOhm @ 80A, 10V | 3.8V @ 66µA | 53 nC @ 10 V | ±20V | 3770 pF @ 40 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPA60R385CPXKSA1MOSFET N-CH 600V 9A TO220-FP |
230 | 3.21 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 385mOhm @ 5.2A, 10V | 3.5V @ 340µA | 22 nC @ 10 V | ±20V | 790 pF @ 100 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPA60R180P7XKSA1MOSFET N-CHANNEL 650V 18A TO220 |
1,500 | 3.24 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Tc) | 10V | 180mOhm @ 5.6A, 10V | 4V @ 280µA | 25 nC @ 10 V | ±20V | 1081 pF @ 400 V | - | 26W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPA80R360P7XKSA1MOSFET N-CHANNEL 800V 13A TO220 |
500 | 3.25 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 13A (Tc) | 10V | 360mOhm @ 5.6A, 10V | 3.5V @ 280µA | 30 nC @ 10 V | ±20V | 930 pF @ 500 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPAN60R125PFD7SXKSA1MOSFET N-CH 650V 25A TO220 |
5,203 | 3.29 |
RFQ |
Tube | CoolMOS™PFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 25A (Tc) | 10V | 125mOhm @ 7.8A, 10V | 4.5V @ 390µA | 36 nC @ 10 V | ±20V | 1503 pF @ 400 V | - | 32W (Tc) | -40°C ~ 150°C (TJ) | Through Hole | |
|
|
IPA60R280CFD7XKSA1MOSFET N-CH 650V 6A TO220 |
639 | 3.32 |
RFQ |
Datasheet |
Tube | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 6A (Tc) | 10V | 280mOhm @ 3.6A, 10V | 4.5V @ 180µA | 18 nC @ 10 V | ±20V | 807 pF @ 400 V | - | 24W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPA50R250CPXKSA1MOSFET N-CH 500V 13A TO220-FP |
820 | 3.44 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 500 V | 13A (Tc) | 10V | 250mOhm @ 7.8A, 10V | 3.5V @ 520µA | 36 nC @ 10 V | ±20V | 1420 pF @ 100 V | Super Junction | 33W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFB3256PBFMOSFET N-CH 60V 75A TO220AB |
314 | 3.50 |
RFQ |
Datasheet |
Tube | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 75A (Tc) | 10V | 3.4mOhm @ 75A, 10V | 4V @ 150µA | 195 nC @ 10 V | ±20V | 6600 pF @ 48 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

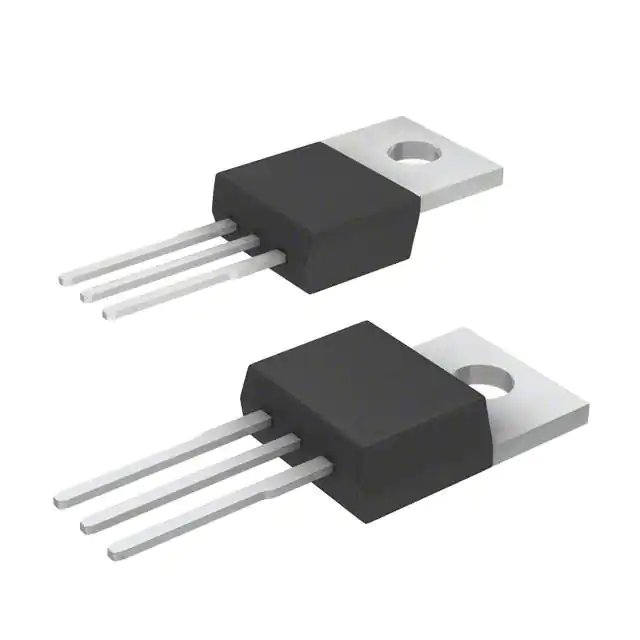

IPP60R210CFD7XKSA1MOSFET N CH |
437 | 3.74 |
RFQ |
Datasheet |
Tube | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 210mOhm @ 4.9A, 10V | 4.5V @ 240µA | 23 nC @ 10 V | ±20V | 1015 pF @ 400 V | - | 64W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF3703PBFMOSFET N-CH 30V 210A TO220AB |
2,875 | 3.97 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 210A (Tc) | 7V, 10V | 2.8mOhm @ 76A, 10V | 4V @ 250µA | 209 nC @ 10 V | ±20V | 8250 pF @ 25 V | - | 3.8W (Ta), 230W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRF2204SPBFMOSFET N-CH 40V 170A D2PAK |
872 | 4.10 |
RFQ |
Datasheet |
Tube | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 170A (Tc) | 10V | 3.6mOhm @ 130A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 5890 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPP034NE7N3GXKSA1MOSFET N-CH 75V 100A TO220-3 |
1,480 | 4.32 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 100A (Tc) | 10V | 3.4mOhm @ 100A, 10V | 3.8V @ 155µA | 117 nC @ 10 V | ±20V | 8130 pF @ 37.5 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPBE65R230CFD7AATMA1MOSFET N-CH 650V 11A TO263-7 |
3,476 | 6.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 230mOhm @ 5.2A, 10V | 4.5V @ 260µA | 23 nC @ 10 V | ±20V | 1044 pF @ 400 V | - | 63W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IPP65R190E6XKSA1MOSFET N-CH 650V 20.2A TO220-3 |
326 | 4.61 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 20.2A (Tc) | 10V | 190mOhm @ 7.3A, 10V | 3.5V @ 730µA | 73 nC @ 10 V | ±20V | 1620 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPP60R120P7XKSA1MOSFET N-CH 600V 26A TO220-3 |
1,307 | 4.76 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 120mOhm @ 8.2A, 10V | 4V @ 410µA | 36 nC @ 10 V | ±20V | 1544 pF @ 400 V | - | 95W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPP60R199CPXKSA1MOSFET N-CH 650V 16A TO220-3 |
412 | 5.25 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 16A (Tc) | 10V | 199mOhm @ 9.9A, 10V | 3.5V @ 660µA | 43 nC @ 10 V | ±20V | 1520 pF @ 100 V | - | 139W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPP80N08S2L07AKSA1MOSFET N-CH 75V 80A TO220-3 |
565 | 5.32 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 4.5V, 10V | 7.1mOhm @ 80A, 10V | 2V @ 250µA | 233 nC @ 10 V | ±20V | 5400 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SPP21N50C3XKSA1MOSFET N-CH 500V 21A TO220-3 |
438 | 5.67 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 500 V | 21A (Tc) | 10V | 190mOhm @ 13.1A, 10V | 3.9V @ 1mA | 95 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPA105N15N3GXKSA1MOSFET N-CH 150V 37A TO220-FP |
318 | 5.96 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 37A (Tc) | 8V, 10V | 10.5mOhm @ 37A, 10V | 4V @ 160µA | 55 nC @ 10 V | ±20V | 4300 pF @ 75 V | - | 40.5W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
