| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPSA70R900P7SAKMA1MOSFET N-CH 700V 6A TO251-3 |
1,488 | 0.97 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 6A (Tc) | 10V | 900mOhm @ 1.1A, 10V | 3.5V @ 60µA | 6.8 nC @ 400 V | ±16V | 211 pF @ 400 V | - | 30.5W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPS70R900P7SAKMA1MOSFET N-CH 700V 6A TO251-3 |
1,107 | 0.97 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 6A (Tc) | 10V | 900mOhm @ 1.1A, 10V | 3.5V @ 60µA | 6.8 nC @ 10 V | ±16V | 211 pF @ 400 V | - | 30.5W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|

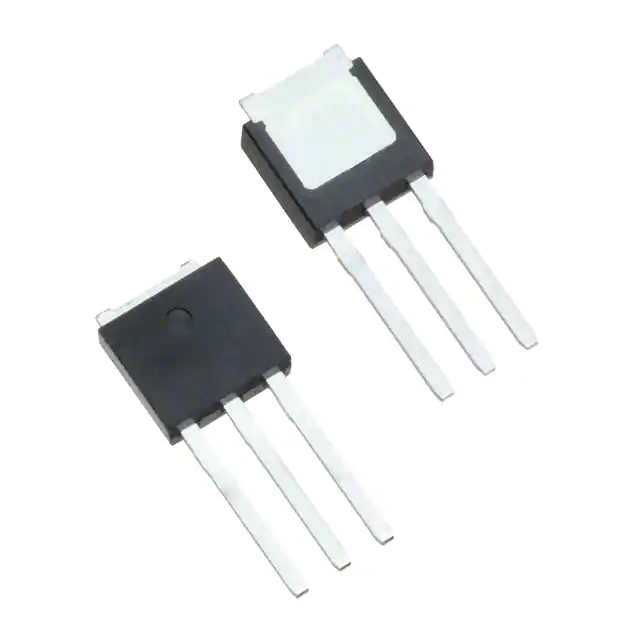

IPU80R4K5P7AKMA1MOSFET N-CH 800V 1.5A TO251-3 |
2,122 | 1.08 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.5A (Tc) | 10V | 4.5Ohm @ 400mA, 10V | 3.5V @ 200µA | 4 nC @ 10 V | ±20V | 250 pF @ 500 V | Super Junction | 13W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPD80R600P7ATMA1MOSFET N-CH 800V 8A TO252-3 |
9,642 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 600mOhm @ 3.4A, 10V | 3.5V @ 170µA | 20 nC @ 10 V | ±20V | 570 pF @ 500 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSC0803LSATMA1MOSFET N-CH 100V 10A/44A TDSON-6 |
4,745 | 1.78 |
RFQ |
Datasheet |
Cut Tape (CT) | OptiMOS™ 5 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Ta), 44A (Tc) | 4.5V, 10V | 14.6mOhm @ 22A, 10V | 2.3V @ 23µA | 10 nC @ 4.5 V | ±20V | 1300 pF @ 50 V | - | 2.5W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFH5007TRPBFMOSFET N-CH 75V 17A/100A 8PQFN |
12,000 | 2.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 17A (Ta), 100A (Tc) | 10V | 5.9mOhm @ 50A, 10V | 4V @ 150µA | 98 nC @ 10 V | ±20V | 4290 pF @ 25 V | - | 3.6W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPSA70R450P7SAKMA1MOSFET N-CH 700V 10A TO251-3 |
3,066 | 1.25 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 10A (Tc) | 10V | 450mOhm @ 2.3A, 10V | 3.5V @ 120µA | 13.1 nC @ 400 V | ±16V | 424 pF @ 400 V | - | 50W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IRF6795MTRPBFMOSFET N-CH 25V 32A DIRECTFET |
4,800 | 2.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 32A (Ta), 160A (Tc) | 4.5V, 10V | 1.8mOhm @ 32A, 10V | 2.35V @ 100µA | 53 nC @ 4.5 V | ±20V | 4280 pF @ 13 V | - | 2.8W (Ta), 75W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRF6775MTRPBFMOSFET N-CH 150V 4.9A DIRECTFET |
15,331 | 2.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 4.9A (Ta), 28A (Tc) | 10V | 56mOhm @ 5.6A, 10V | 5V @ 100µA | 36 nC @ 10 V | ±20V | 1411 pF @ 25 V | - | 2.8W (Ta), 89W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRF40B207MOSFET N-CH 40V 95A TO220AB |
2,705 | 1.51 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 6V, 10V | 4.5mOhm @ 57A, 10V | 3.9V @ 50µA | 68 nC @ 10 V | ±20V | 2110 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
AUIRFR5305TRLMOSFET P-CH 55V 31A DPAK |
23,481 | 3.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 55 V | 31A (Tc) | 10V | 65mOhm @ 16A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BSC042NE7NS3GATMA1MOSFET N-CH 75V 19A/100A TDSON |
32,506 | 3.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 19A (Ta), 100A (Tc) | 10V | 4.2mOhm @ 50A, 10V | 3.8V @ 91µA | 69 nC @ 10 V | ±20V | 4800 pF @ 37.5 V | - | 2.5W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRL1404ZSTRLPBFMOSFET N-CH 40V 75A D2PAK |
7,675 | 2.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 4.5V, 10V | 3.1mOhm @ 75A, 10V | 2.7V @ 250µA | 110 nC @ 5 V | ±16V | 5080 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPD60R210CFD7ATMA1MOSFET N CH |
4,996 | 3.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 210mOhm @ 4.9A, 10V | 4.5V @ 240µA | 23 nC @ 10 V | ±20V | 1015 pF @ 400 V | - | 64W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF6785MTRPBFMOSFET N-CH 200V 3.4A DIRECTFET |
9,600 | 1.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 3.4A (Ta), 19A (Tc) | 10V | 100mOhm @ 4.2A, 10V | 5V @ 100µA | 36 nC @ 10 V | ±20V | 1500 pF @ 25 V | - | 2.8W (Ta), 57W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IRL7833PBFMOSFET N-CH 30V 150A TO220AB |
1,970 | 2.20 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 150A (Tc) | 4.5V, 10V | 3.8mOhm @ 38A, 10V | 2.3V @ 250µA | 47 nC @ 4.5 V | ±20V | 4170 pF @ 15 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF1104PBFMOSFET N-CH 40V 100A TO220AB |
11,121 | 2.30 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 9mOhm @ 60A, 10V | 4V @ 250µA | 93 nC @ 10 V | ±20V | 2900 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPB60R190C6ATMA1MOSFET N-CH 600V 20.2A D2PAK |
3,000 | 4.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 20.2A (Tc) | 10V | 190mOhm @ 9.5A, 10V | 3.5V @ 630µA | 63 nC @ 10 V | ±20V | 1400 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD60R145CFD7ATMA1MOSFET N CH |
9,969 | 4.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 145mOhm @ 6.8A, 10V | 4.5V @ 340µA | 31 nC @ 10 V | ±20V | 1330 pF @ 400 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPP032N06N3GXKSA1MOSFET N-CH 60V 120A TO220-3 |
3,990 | 2.82 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.2mOhm @ 100A, 10V | 4V @ 118µA | 165 nC @ 10 V | ±20V | 13000 pF @ 30 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
