| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

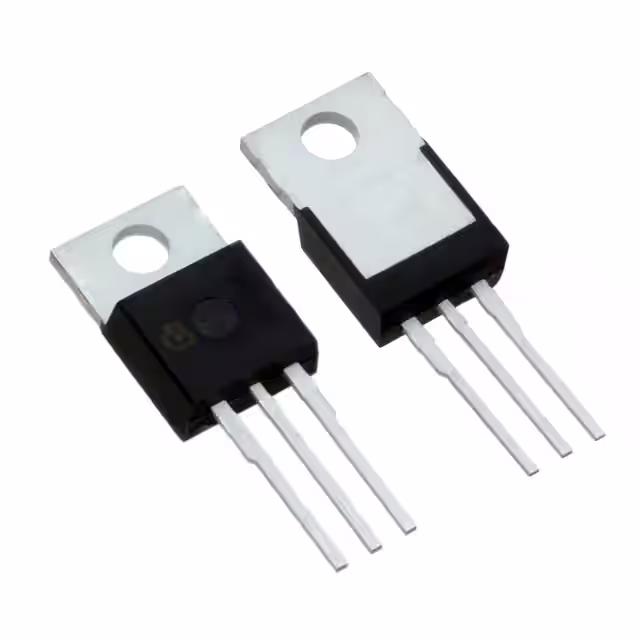

IPP60R180P7XKSA1MOSFET N-CH 650V 18A TO220-3 |
2,000 | 3.24 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Tc) | 10V | 180mOhm @ 5.6A, 10V | 4V @ 280µA | 25 nC @ 10 V | ±20V | 1081 pF @ 400 V | - | 72W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFP064NPBFMOSFET N-CH 55V 110A TO247AC |
7,733 | 3.25 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 110A (Tc) | 10V | 8mOhm @ 59A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPP80P03P4L04AKSA1MOSFET P-CH 30V 80A TO220-3 |
457 | 3.30 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 4.4mOhm @ 80A, 10V | 2V @ 253µA | 160 nC @ 10 V | +5V, -16V | 11300 pF @ 25 V | - | 137W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRL1004PBFMOSFET N-CH 40V 130A TO220AB |
2,206 | 3.31 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 130A (Tc) | 4.5V, 10V | 6.5mOhm @ 78A, 10V | 1V @ 250µA | 100 nC @ 4.5 V | ±16V | 5330 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB4410PBFMOSFET N-CH 100V 88A TO220AB |
7,510 | 3.44 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 88A (Tc) | 10V | 10mOhm @ 58A, 10V | 4V @ 150µA | 180 nC @ 10 V | ±20V | 5150 pF @ 50 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB5620PBFMOSFET N-CH 200V 25A TO220AB |
2,383 | 3.51 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 25A (Tc) | 10V | 72.5mOhm @ 15A, 10V | 5V @ 100µA | 38 nC @ 10 V | ±20V | 1710 pF @ 50 V | - | 144W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

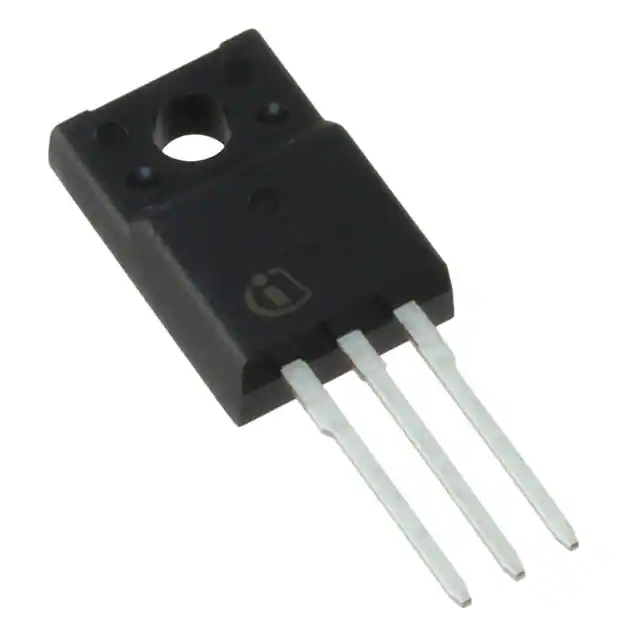

IRFI4227PBFMOSFET N-CH 200V 26A TO220AB FP |
12,445 | 3.63 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 26A (Tc) | 10V | 25mOhm @ 17A, 10V | 5V @ 250µA | 110 nC @ 10 V | ±30V | 4600 pF @ 25 V | - | 46W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
|
IRF2907ZPBFMOSFET N-CH 75V 160A TO220AB |
900 | 3.67 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 160A (Tc) | 10V | 4.5mOhm @ 75A, 10V | 4V @ 250µA | 270 nC @ 10 V | ±20V | 7500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF2804PBFMOSFET N-CH 40V 75A TO220AB |
11,442 | 3.69 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 2.3mOhm @ 75A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 6450 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFP1405PBFMOSFET N-CH 55V 95A TO247AC |
8,206 | 3.73 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 95A (Tc) | 10V | 5.3mOhm @ 95A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 5600 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPB80N08S2L07ATMA1MOSFET N-CH 75V 80A TO263-3 |
5,725 | 5.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 4.5V, 10V | 6.8mOhm @ 80A, 10V | 2V @ 250µA | 233 nC @ 10 V | ±20V | 5400 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SPA11N80C3XKSA2MOSFET N-CH 800V 11A TO220-3 |
301 | 3.79 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 11A (Tc) | 10V | 450mOhm @ 7.1A, 10V | 3.9V @ 680µA | 85 nC @ 10 V | ±20V | 1600 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFB4321PBFMOSFET N-CH 150V 85A TO220AB |
2,260 | 3.80 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 85A (Tc) | 10V | 15mOhm @ 33A, 10V | 5V @ 250µA | 110 nC @ 10 V | ±30V | 4460 pF @ 50 V | - | 350W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPP60R160P7XKSA1MOSFET N-CH 650V 20A TO220-3-1 |
3,137 | 3.80 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 160mOhm @ 6.3A, 10V | 4V @ 350µA | 31 nC @ 10 V | ±20V | 1317 pF @ 400 V | - | 81W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPP80N06S2L07AKSA2MOSFET N-CH 55V 80A TO220-3 |
789 | 3.81 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 4.5V, 10V | 7mOhm @ 60A, 10V | 2V @ 150µA | 130 nC @ 10 V | ±20V | 3160 pF @ 25 V | - | 210W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFP3415PBFMOSFET N-CH 150V 43A TO247AC |
3,428 | 3.84 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 43A (Tc) | 10V | 42mOhm @ 22A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFI4321PBFMOSFET N-CH 150V 34A TO220AB FP |
15,061 | 4.12 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 34A (Tc) | 10V | 16mOhm @ 20A, 10V | 5V @ 250µA | 110 nC @ 10 V | ±30V | 4440 pF @ 50 V | - | 46W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFI4229PBFMOSFET N-CH 250V 19A TO220AB |
4,452 | 4.32 |
RFQ |
Datasheet |
Tube | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 250 V | 19A (Tc) | 10V | 46mOhm @ 11A, 10V | 5V @ 250µA | 110 nC @ 10 V | ±30V | 4480 pF @ 25 V | - | 46W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
|
IRLB3034PBFMOSFET N-CH 40V 195A TO220AB |
1,353 | 4.34 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 4.5V, 10V | 1.7mOhm @ 195A, 10V | 2.5V @ 250µA | 162 nC @ 4.5 V | ±20V | 10315 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
AUIRF3205MOSFET N-CH 55V 75A TO220AB |
560 | 4.36 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 8mOhm @ 62A, 10V | 4V @ 250µA | 146 nC @ 10 V | ±20V | 3247 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
