| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFS7437TRLPBFMOSFET N CH 40V 195A D2PAK |
7,201 | 2.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET®, StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.8mOhm @ 100A, 10V | 3.9V @ 150µA | 225 nC @ 10 V | ±20V | 7330 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF1018EPBFMOSFET N-CH 60V 79A TO220AB |
6,871 | 1.45 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 79A (Tc) | 10V | 8.4mOhm @ 47A, 10V | 4V @ 100µA | 69 nC @ 10 V | ±20V | 2290 pF @ 50 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRL3803STRLPBFMOSFET N-CH 30V 140A D2PAK |
6,861 | 2.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 140A (Tc) | 4.5V, 10V | 6mOhm @ 71A, 10V | 1V @ 250µA | 140 nC @ 4.5 V | ±16V | 5000 pF @ 25 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFZ48NPBFMOSFET N-CH 55V 64A TO220AB |
9,110 | 1.51 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 64A (Tc) | 10V | 14mOhm @ 32A, 10V | 4V @ 250µA | 81 nC @ 10 V | ±20V | 1970 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFZ44VPBFMOSFET N-CH 60V 55A TO220AB |
3,219 | 1.56 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 55A (Tc) | 10V | 16.5mOhm @ 31A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1812 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF3415STRLPBFMOSFET N-CH 150V 43A D2PAK |
4,029 | 2.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 43A (Tc) | 10V | 42mOhm @ 22A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFZ44EPBFMOSFET N-CH 60V 48A TO220AB |
6,847 | 1.61 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 48A (Tc) | 10V | 23mOhm @ 29A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±20V | 1360 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF1010EPBFMOSFET N-CH 60V 84A TO220AB |
7,574 | 1.67 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 84A (Tc) | 10V | 12mOhm @ 50A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±20V | 3210 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB7446PBFMOSFET N-CH 40V 120A TO220AB |
4,904 | 1.68 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 6V, 10V | 3.3mOhm @ 70A, 10V | 3.9V @ 100µA | 93 nC @ 10 V | ±20V | 3183 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
BSC037N08NS5ATMA1MOSFET N-CH 80V 100A TDSON |
11,623 | 3.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 6V, 10V | 3.7mOhm @ 50A, 10V | 3.8V @ 72µA | 58 nC @ 10 V | ±20V | 4200 pF @ 40 V | - | 2.5W (Ta), 114W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPD65R225C7ATMA1MOSFET N-CH 650V 11A TO252-3 |
15,936 | 3.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 225mOhm @ 4.8A, 10V | 4V @ 240µA | 20 nC @ 10 V | ±20V | 996 pF @ 400 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF1010NPBFMOSFET N-CH 55V 85A TO220AB |
7,762 | 1.81 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 85A (Tc) | 10V | 11mOhm @ 43A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 3210 pF @ 25 V | - | 180W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

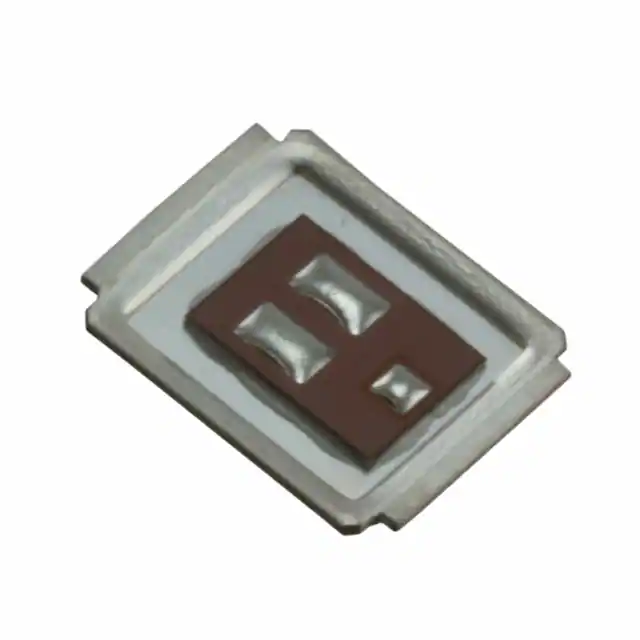

IRF6717MTRPBFMOSFET N-CH 25V 38A DIRECTFET |
30,188 | 3.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 38A (Ta), 200A (Tc) | 4.5V, 10V | 1.25mOhm @ 38A, 10V | 2.35V @ 150µA | 69 nC @ 4.5 V | ±20V | 6750 pF @ 13 V | - | 2.8W (Ta), 96W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRFZ44NLPBFMOSFET N-CH 55V 49A TO262 |
9,590 | 1.84 |
RFQ |
Datasheet |
Tube | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 55 V | 49A (Tc) | 10V | 17.5mOhm @ 25A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1470 pF @ 25 V | - | 3.8W (Ta), 94W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF1405STRLPBFMOSFET N-CH 55V 131A D2PAK |
600 | 3.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 131A (Tc) | 10V | 5.3mOhm @ 101A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 5480 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF3710PBFMOSFET N-CH 100V 57A TO220AB |
1,359 | 1.96 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 57A (Tc) | 10V | 23mOhm @ 28A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±20V | 3130 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF2807PBFMOSFET N-CH 75V 82A TO220AB |
5,621 | 1.98 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 82A (Tc) | 10V | 13mOhm @ 43A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 3820 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFB7440PBFMOSFET N-CH 40V 120A TO220AB |
1,306 | 1.98 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 6V, 10V | 2.5mOhm @ 100A, 10V | 3.9V @ 100µA | 135 nC @ 10 V | ±20V | 4730 pF @ 25 V | - | 143W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
;;3.jpg)
|
IRLU3110ZPBFMOSFET N-CH 100V 42A IPAK |
5,165 | 2.11 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 4.5V, 10V | 14mOhm @ 38A, 10V | 2.5V @ 100µA | 48 nC @ 4.5 V | ±16V | 3980 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRFI1310NPBFMOSFET N-CH 100V 24A TO220AB FP |
1,228 | 2.17 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 24A (Tc) | 10V | 36mOhm @ 13A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 1900 pF @ 25 V | - | 56W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
