| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

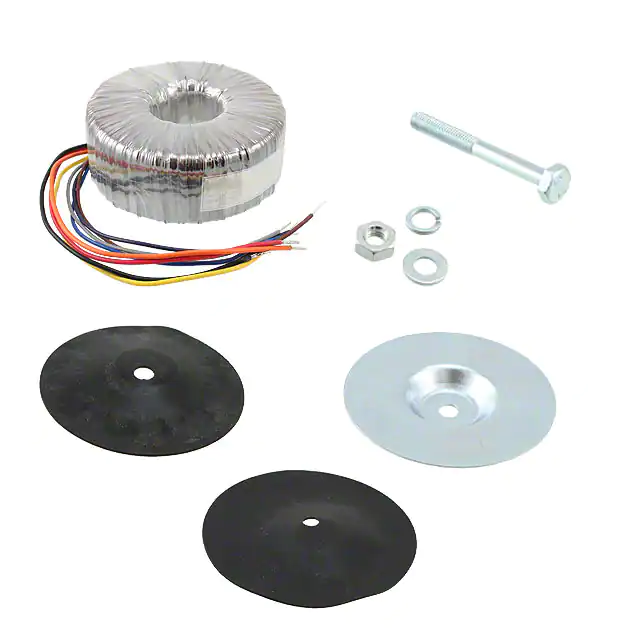

VPT100-5000PWR XFMR TORO 500VA CHAS MT |
3,984 | 105.69 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 50V, Series 100V | Parallel 10A, Series 5A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 140.00mm Dia x 60.00mm W | 66.0mm | 4000Vrms |
|

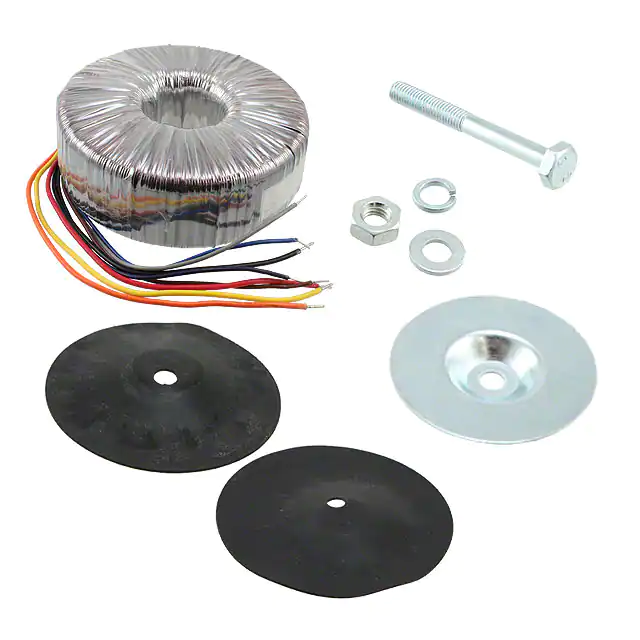

VPT100-10000PWR XFMR TORO 1000VA CHAS MT |
3,586 | 149.16 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 50V, Series 100V | Parallel 20A, Series 10A | Dual | Dual | No | 1000VA | Chassis Mount | Wire Leads | 175.00mm Dia x 68.00mm W | 76.0mm | 4000Vrms |
|
VPM48-10400PWR XFMR TORO 500VA CHAS MT |
3,687 | 155.50 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 20.8A, Series 10.4A | Dual, Multiple Taps | Dual | No | 500VA | Chassis Mount | Wire Leads | 147.00mm Dia | 64.00mm | 4000Vrms |
|
|
VPM48-20830PWR XFMR TORO 1000VA CHAS MT |
3,597 | 199.49 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 41.66A, Series 20.83A | Dual, Multiple Taps | Dual | No | 1000VA | Chassis Mount | Wire Leads | 183.00mm Dia | 74.00mm | 4000Vrms |
|
|
VPM100-10000PWR XFMR TORO 1000VA CHAS MT |
3,875 | 199.49 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 50V, Series 100V | Parallel 20A, Series 10A | Dual, Multiple Taps | Dual | No | 1000VA | Chassis Mount | Wire Leads | 183.00mm Dia | 74.00mm | 4000Vrms |
|
|
VPM100-25000PWR XFMR TORO 2500VA CHAS MT |
3,365 | 362.18 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 50V, Series 100V | Parallel 50A, Series 25A | Dual, Multiple Taps | Dual | No | 2500VA | Chassis Mount | Wire Leads | 215.00mm Dia | 120.00mm | 4000Vrms |
|
VPP28-090-BPWR XFMR LAMINATED 2.5VA TH |
2,772 | 8.82 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 180mA, Series 90mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms |
|
F28-200-C2PWR XFMR LAMINATED 6VA TH |
3,566 | 9.30 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 400mA, Series 200mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
F-149XPPWR XFMR LAMINATED 4.5VA CHAS MT |
3,323 | 10.59 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 700mA, Series 350mA | Single | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms |
|
|
F16-800-C2PWR XFMR LAMINATED 12VA TH |
2,859 | 11.11 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 1.6A, Series 800mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
|
F56-220-C2PWR XFMR LAMINATED 12VA TH |
2,967 | 11.11 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 440mA, Series 220mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
FS28-200PWR XFMR LAMINATED 6VA TH |
3,397 | 11.25 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
F-367PPWR XFMR LAMINATED 1.5VA TH |
2,086 | 11.84 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 13mA, Series 6.5mA | Dual | Dual | No | 1.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 28.58mm | 1500Vrms |
|
FS36-350-C2PWR XFMR LAMINATED 12VA TH |
3,246 | 12.60 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 4200Vrms |
|
FS36-1000-C2PWR XFMR LAMINATED 36VA TH |
3,190 | 17.27 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms |
|
F36-1000PWR XFMR LAMINATED 36VA TH |
2,262 | 17.93 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
|
|
VPM18-5560PWR XFMR TORO 100VA CHAS MT |
2,084 | 65.25 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 9V, Series 18V | Parallel 11.12A, Series 5.56A | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms |
|
|
VPM24-4170PWR XFMR TORO 100VA CHAS MT |
2,151 | 65.25 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 12V, Series 24V | Parallel 8.34A, Series 4.17A | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms |
|

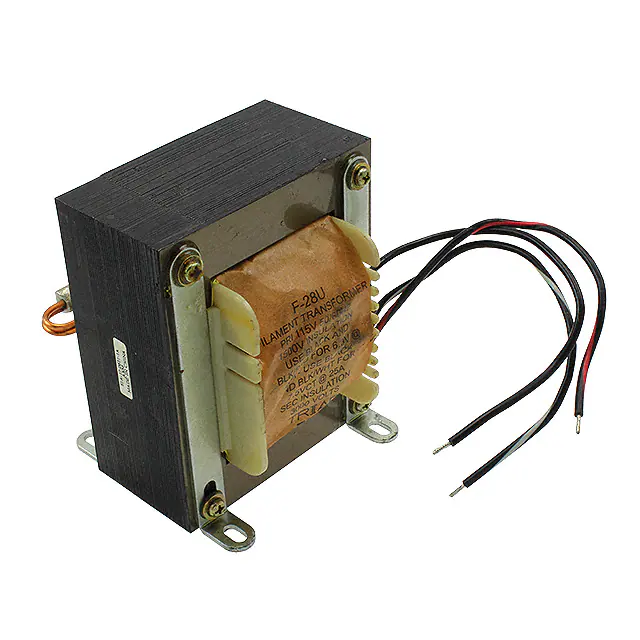

F-28UPWR XFMR LAMINATED 187.5VA CHAS |
2,728 | 68.39 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 6.3V, 7.5V | 25A | Single | Single | Yes | 187.5VA | Chassis Mount | Wire Leads | 96.82mm L x 92.07mm W | 117.48mm | 3000Vrms |
|
|
VPM12-20800PWR XFMR TORO 250VA CHAS MT |
2,478 | 111.87 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 6V, Series 12V | Parallel 41.6A, Series 20.8A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms |
