| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS24-045PWR XFMR LAMINATED 1.1VA TH |
3,644 | 9.90 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 90mA, Series 45mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms |
|
FS10-600-C2PWR XFMR LAMINATED 6VA TH |
120 | 9.87 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 4200Vrms |
|
TCT3-04E07AEPWR XFMR LAMINATED 2.5VA CHAS MT |
2,210 | 10.02 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 240V | 12V | 208mA | Single | Single | No | 2.5VA | Chassis Mount | Solder, Quick Connect | 60.00mm L x 42.50mm W | 54.10mm | 1500Vrms |
|
|
TCT3-12E07AEPWR XFMR LAMINATED 2.5VA CHAS MT |
2,919 | 10.02 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 240V | 10V | 250mA | Single | Single | No | 2.5VA | Chassis Mount | Solder, Quick Connect | 60.00mm L x 42.50mm W | 54.10mm | 1500Vrms |
|

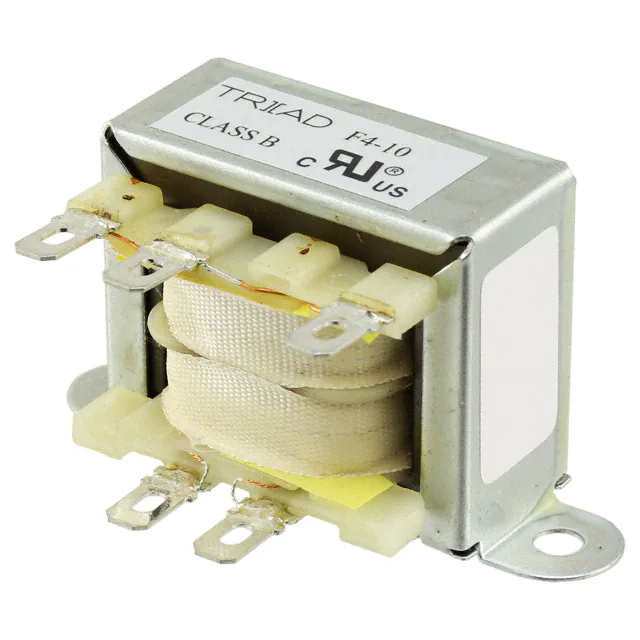

F4-10PWR XFMR LAMINATED 6VA CHAS MT |
2,005 | 10.59 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 10V | 600mA | Single | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 60.33mm L x 31.75mm W | 34.93mm | 2500VAC |
|
FS36-65PWR XFMR LAMINATED 2.4VA TH |
3,766 | 10.66 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.15mm | 2500Vrms |
|
F-162XPPWR XFMR LAMINATED 4.5VA CHAS MT |
2,555 | 10.59 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 264mA, Series 132mA | Single | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms |
|
F4-12PWR XFMR LAMINATED 6VA CHAS MT |
2,163 | 10.59 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 12.6V | 500mA | Single | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 60.33mm L x 31.75mm W | 34.93mm | 2500VAC |
|
F-143XPPWR XFMR LAMINATED 4.5VA CHAS MT |
3,494 | 10.59 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 15V, Series 30V | Parallel 300mA, Series 150mA | Single | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms |
|
F12-500PWR XFMR LAMINATED 6VA TH |
2,459 | 10.82 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 1A, Series 500mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
|
F20-300PWR XFMR LAMINATED 6VA TH |
2,202 | 10.82 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
F16-400PWR XFMR LAMINATED 6VA TH |
2,265 | 10.82 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
F28-420-C2-BPWR XFMR LAMINATED 12VA TH |
3,829 | 11.11 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 840mA, Series 420mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
|
F36-350-C2PWR XFMR LAMINATED 12VA TH |
2,651 | 11.11 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
FS12-500PWR XFMR LAMINATED 6VA TH |
3,340 | 11.25 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1A, Series 500mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|

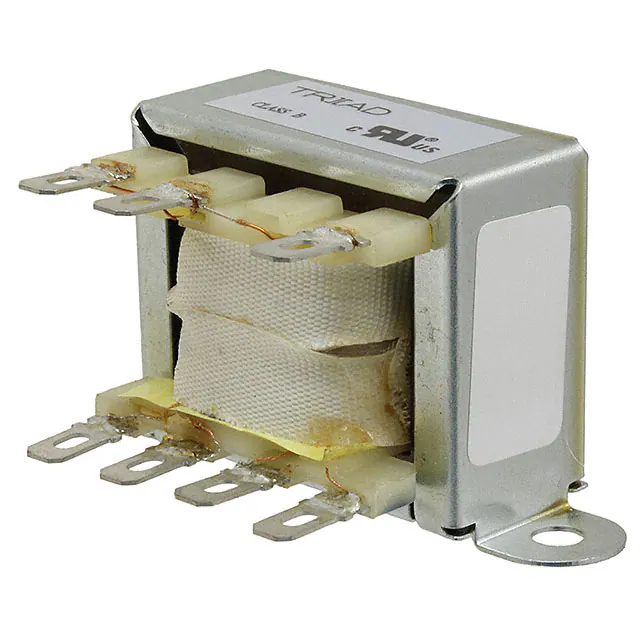

FD4-20PWR XFMR LAMINATED 6VA CHAS MT |
2,401 | 11.61 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 20V | 300mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC |
|
VPP20-500PWR XFMR LAMINATED 10VA TH |
2,009 | 11.73 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1A, Series 500mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 34.93mm | 4000Vrms |
|
FD4-28PWR XFMR LAMINATED 6VA CHAS MT |
2,774 | 11.73 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 28V | 200mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC |
|
F-153XPPWR XFMR LAMINATED 7.5VA CHAS MT |
2,872 | 11.82 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 15V, Series 30V | Parallel 500mA, Series 250mA | Single | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|

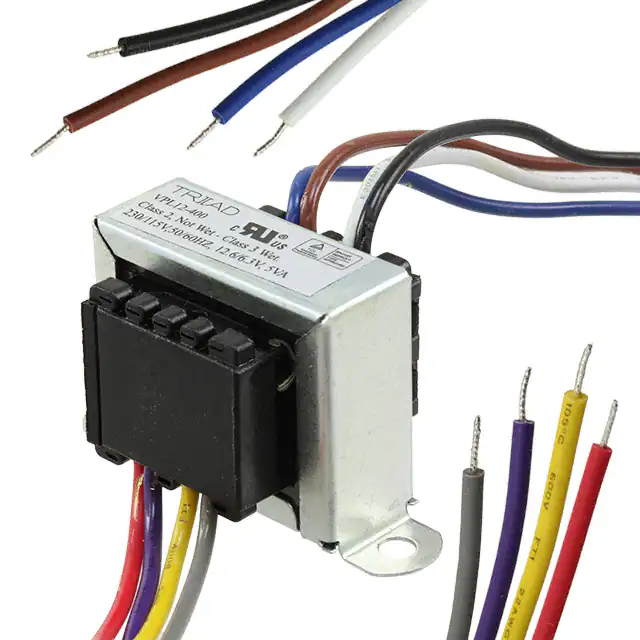

VPL12-400PWR XFMR LAMINATED 5.0VA CHAS MT |
3,835 | 12.02 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 12.6V | 390mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms |
