| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

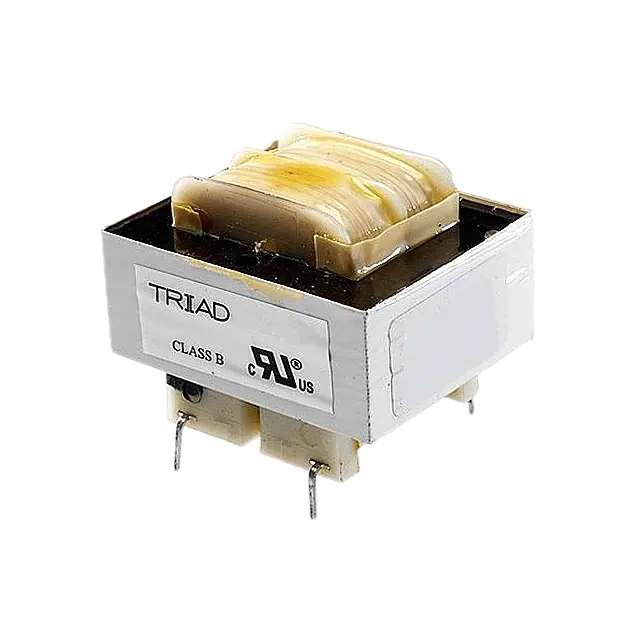

F16-150PWR XFMR LAMINATED 2.5VA TH |
3,198 | 8.54 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
VPP12-200PWR XFMR LAMINATED 2.5VA TH |
1,601 | 8.82 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms |
|
|
VPP28-090PWR XFMR LAMINATED 2.5VA TH |
2,127 | 8.82 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 180mA, Series 90mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms |
|
VPP12-400PWR XFMR LAMINATED 5VA TH |
3,753 | 9.37 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 800mA, Series 400mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 34.93mm | 4000Vrms |
|
FS24-250-C2PWR XFMR LAMINATED 6VA TH |
4,990 | 9.87 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 4200Vrms |
|

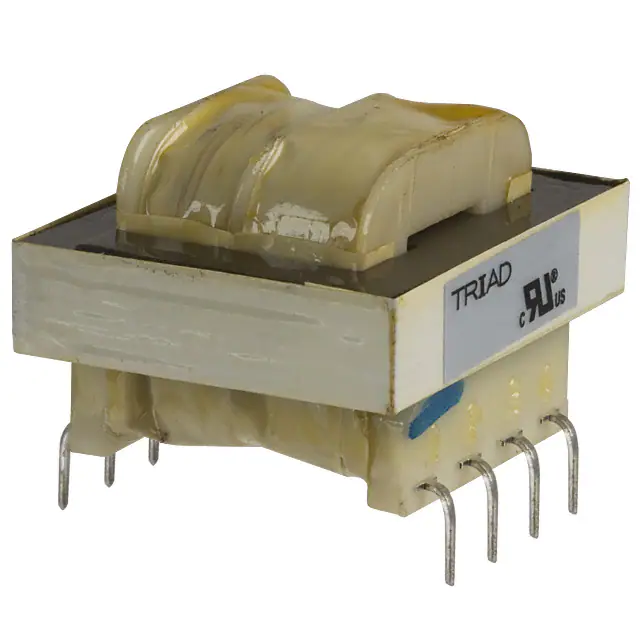

FS12-090PWR XFMR LAMINATED 1.1VA TH |
1,254 | 9.90 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms |
|
FS10-250PWR XFMR LAMINATED 2.5VA TH |
520 | 10.66 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.15mm | 2500Vrms |
|

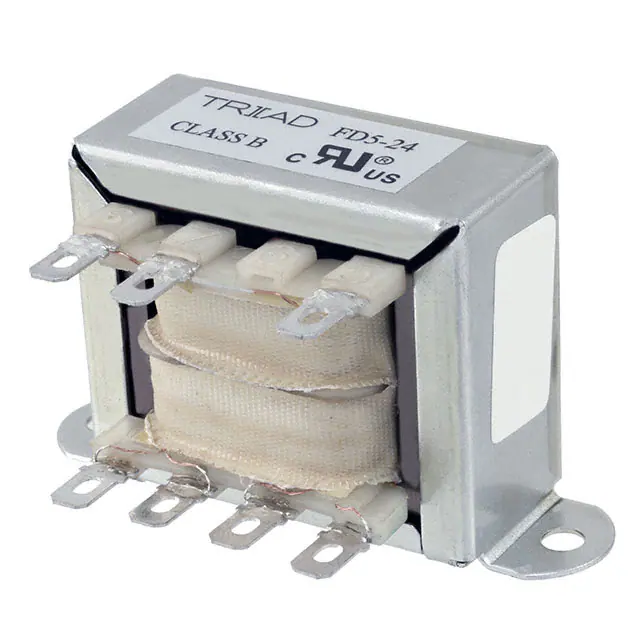

FD5-24PWR XFMR LAMINATED 12VA CHAS MT |
2,898 | 13.55 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 24V | 500mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|

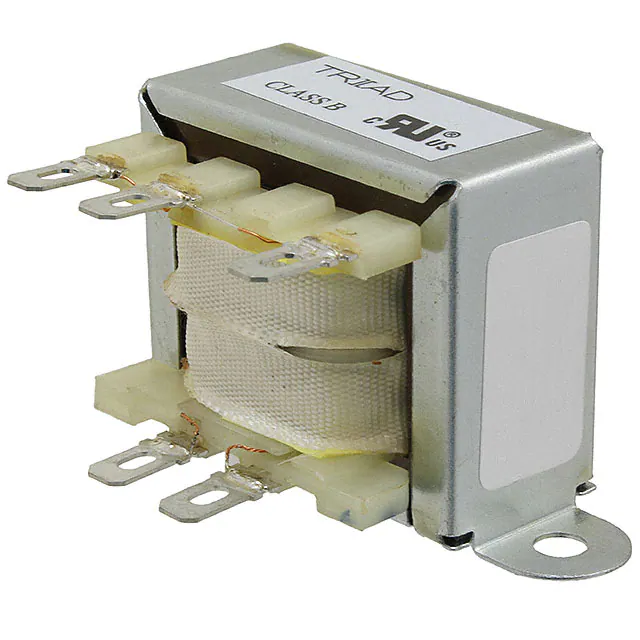

F4-24PWR XFMR LAMINATED 6VA CHAS MT |
411 | 10.59 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 24V | 250mA | Single | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 60.33mm L x 31.75mm W | 34.93mm | 2500VAC |
|
FP24-100PWR XFMR LAMINATED 2.5VA TH |
276 | 11.71 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms |
|

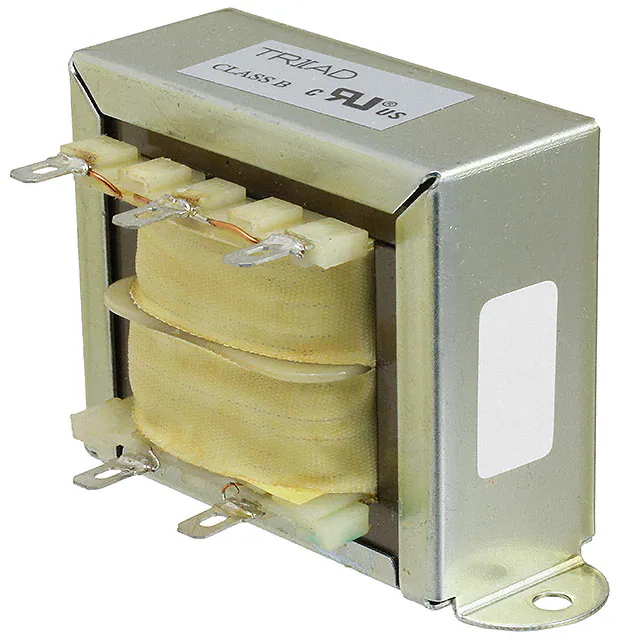

F7-24PWR XFMR LAMINATED 56VA CHAS MT |
2,526 | 18.44 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
TCT50-05E07ABPWR XFMR LAMINATED 50VA CHAS MT |
3,705 | 18.87 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V, 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT40-01E07ABPWR XFMR LAMINATED 40VA CHAS MT |
891 | 19.43 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|

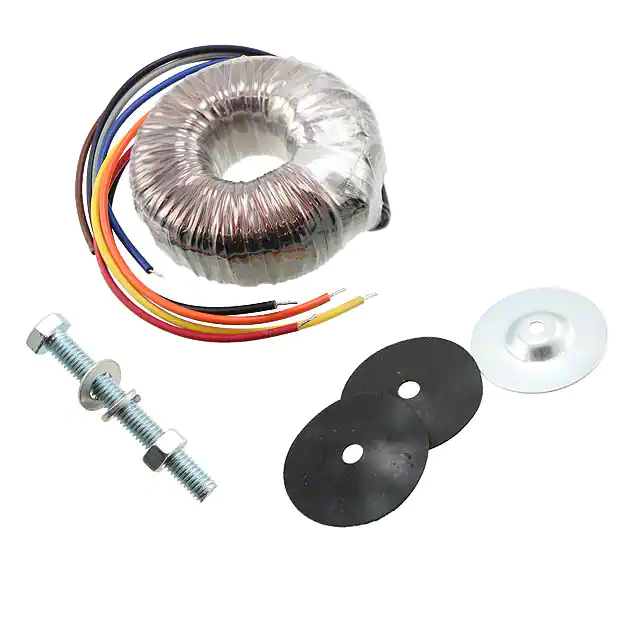

VPT30-830PWR XFMR TORO 25VA CHAS MT |
146 | 20.38 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.66A, Series 830mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms |
|

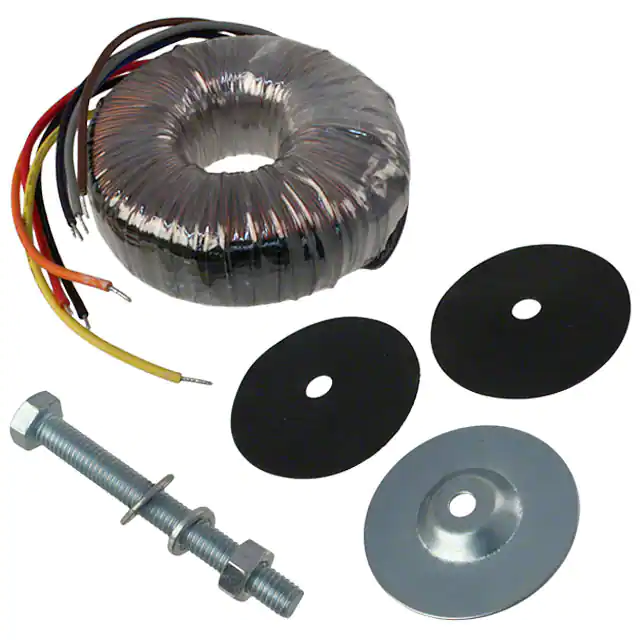

VPT18-2780PWR XFMR TORO 50VA CHAS MT |
3,740 | 32.14 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 5.56A, Series 2.78A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms |
|

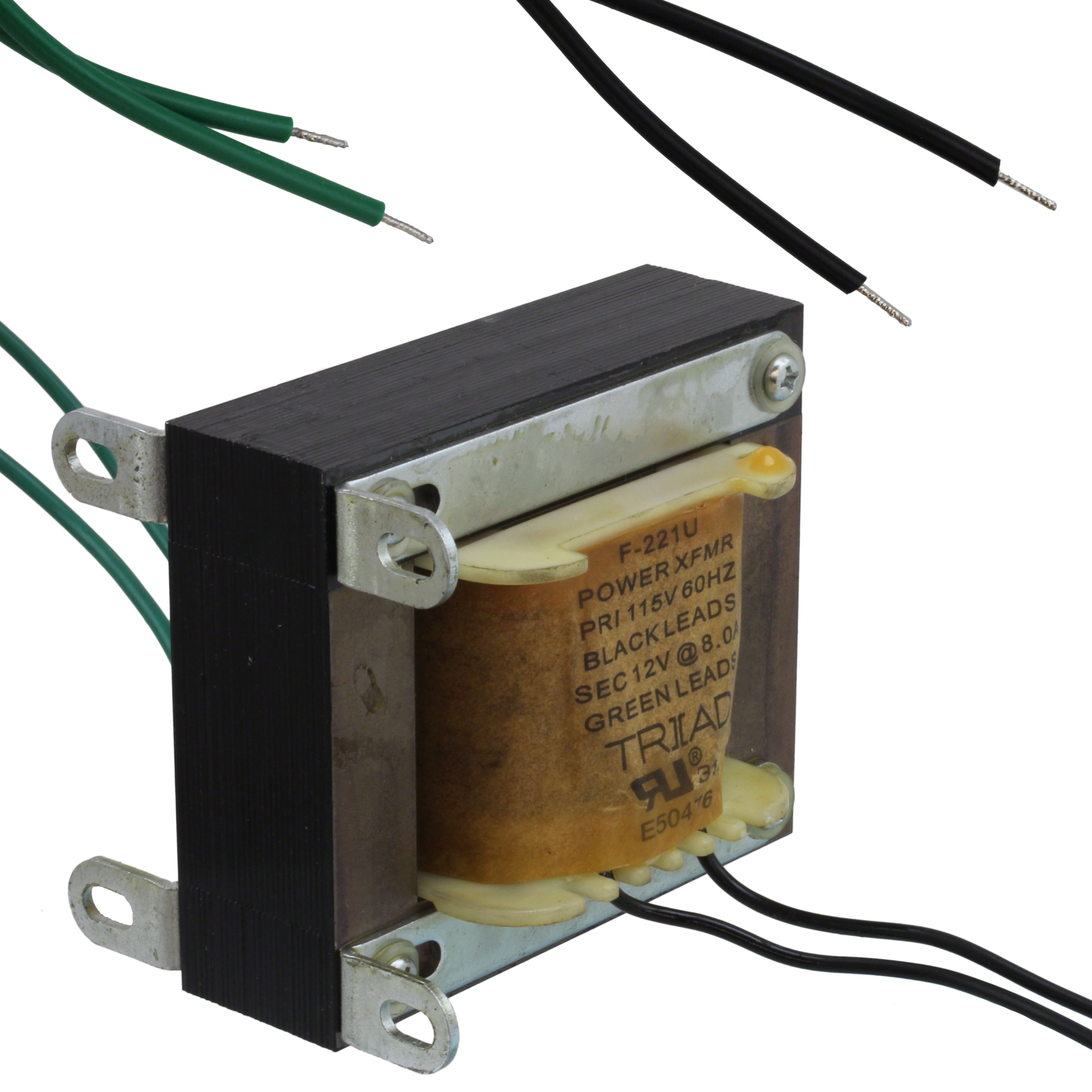

F-221UPWR XFMR LAMINATED 96VA CHAS MT |
2,244 | 37.86 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12V | 8A | Single | Single | No | 96VA | Chassis Mount | Wire Leads | 79.38mm L x 63.50mm W | 96.82mm | 1500Vrms |
|
VPS24-7300PWR XFMR LAMINATED 175VA CHAS MT |
3,002 | 40.47 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 14.6A, Series 7.3A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|

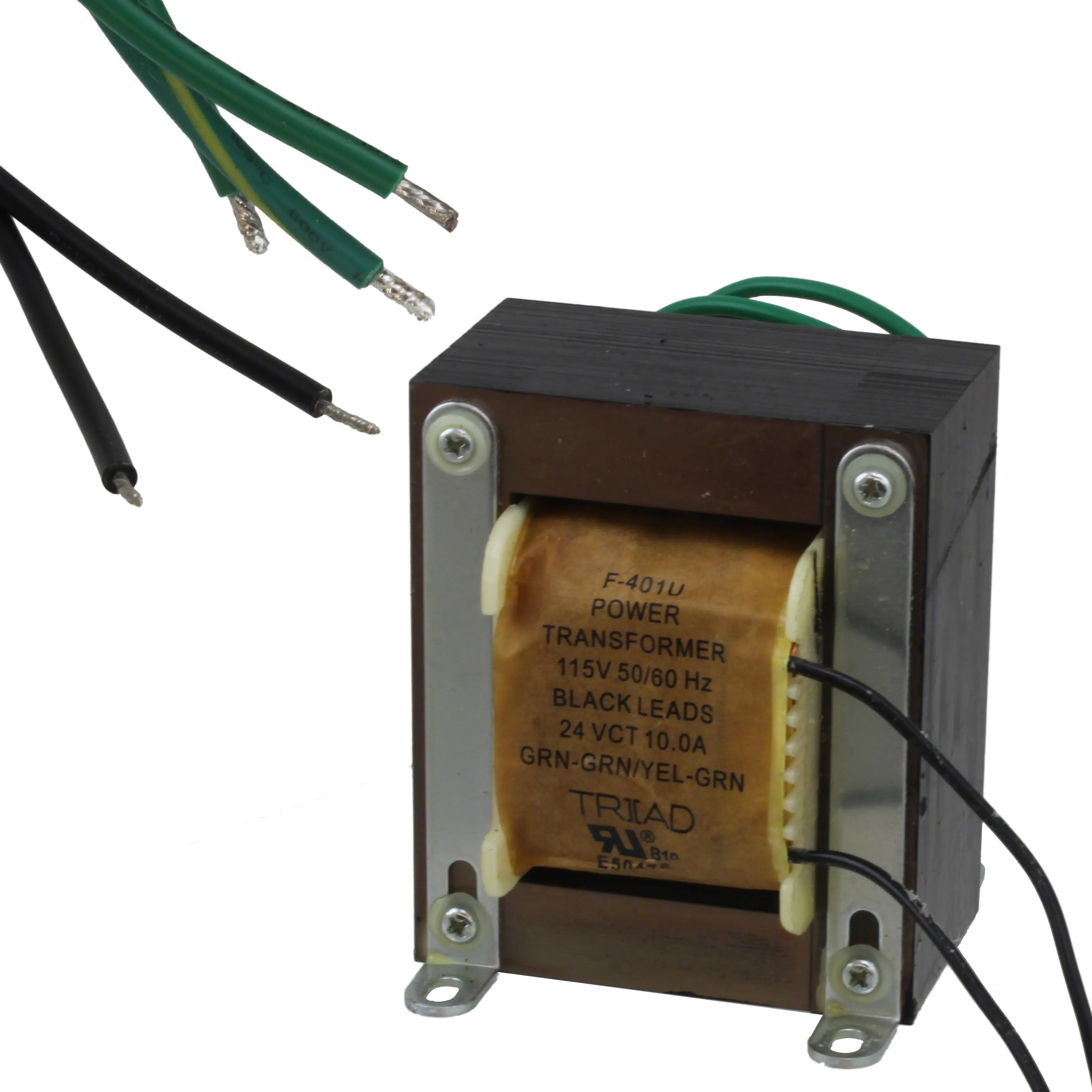

F-401UPWR XFMR LAMINATED 240VA CHAS MT |
3,817 | 48.66 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 10A | Single | Single | Yes | 240VA | Chassis Mount | Wire Leads | 87.30mm L x 95.25mm W | 104.77mm | 1500Vrms |
|

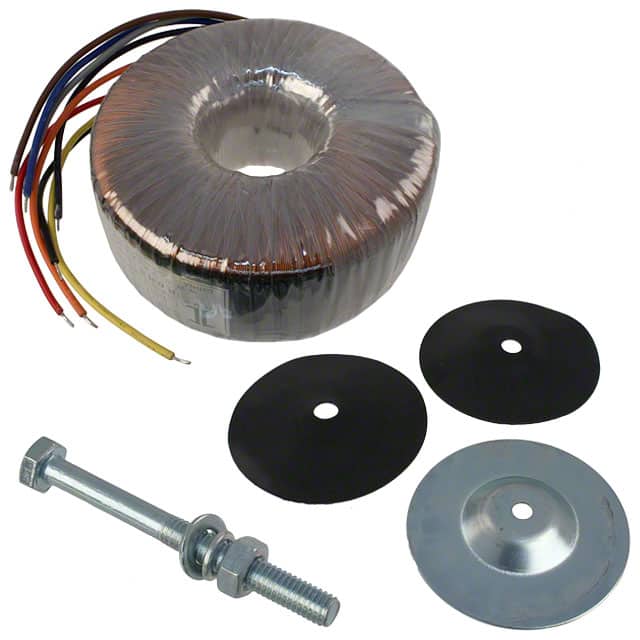

VPT230-700PWR XFMR TORO 160VA CHAS MT |
2,302 | 51.28 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms |
|
F-359XPPWR XFMR LAMINATED 10VA CHAS MT |
3,808 | 13.27 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 900mA, Series 450mA | Dual | Dual | No | 10VA | Chassis Mount | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms |
