| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-16XPWR XFMR LAMINATED 18.9VA CHAS |
2,144 | 16.47 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 6.3V | 3A | Single | Single | Yes | 18.9VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 2500Vrms |
|
FP230-50PWR XFMR LAMINATED 12VA TH |
2,518 | 16.54 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 120V, Series 230V | Parallel 100mA, Series 50mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
FP30-400PWR XFMR LAMINATED 12VA TH |
2,293 | 16.54 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 800mA, Series 400mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|

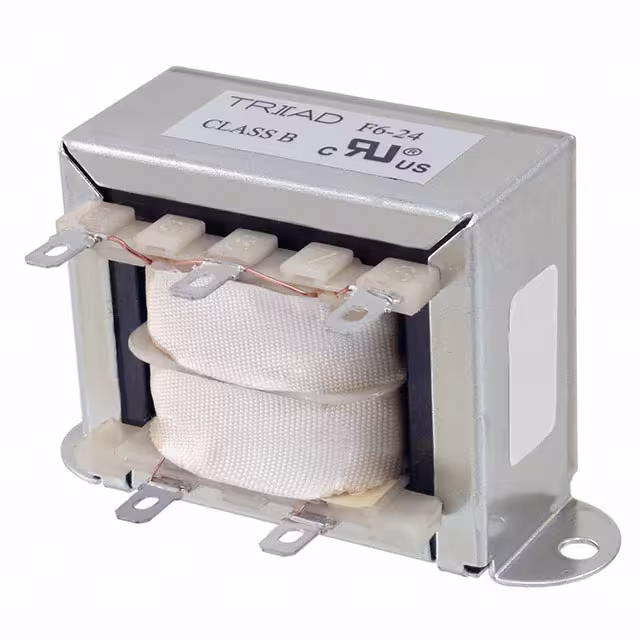

F6-24PWR XFMR LAMINATED 30VA CHAS MT |
3,123 | 16.62 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 24V | 1.25A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|

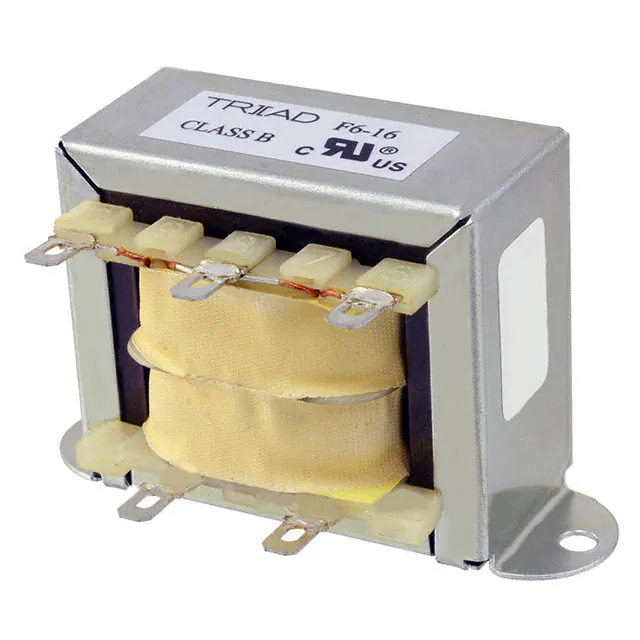

F6-16PWR XFMR LAMINATED 30VA CHAS MT |
3,316 | 16.62 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 16V | 2A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|

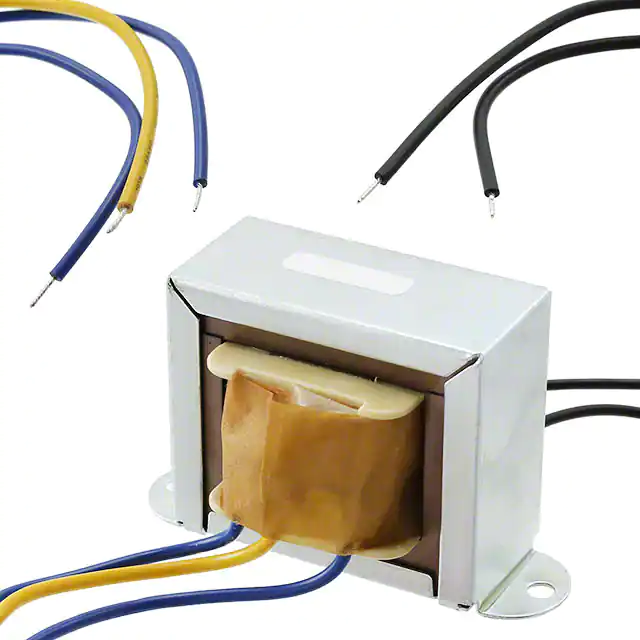

F-25XPWR XFMR LAMINATED 18.9VA CHAS |
3,379 | 16.47 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12.6V | 1.5A | Single | Single | Yes | 18.9VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
|
FP24-500PWR XFMR LAMINATED 12VA TH |
2,613 | 16.54 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
F-373PPWR XFMR LAMINATED 24VA TH |
3,543 | 16.57 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms |
|
FS20-1800-C2PWR XFMR LAMINATED 36VA TH |
2,527 | 17.27 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms |
|
|
FS28-1300-C2PWR XFMR LAMINATED 36VA TH |
2,586 | 17.27 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms |
|
FD6-24PWR XFMR LAMINATED 30VA CHAS MT |
3,944 | 18.02 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 24V | 1.25A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
VPP10-3000PWR XFMR LAMINATED 30VA TH |
3,802 | 18.58 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 6A, Series 3A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms |
|
|
VPP20-1500PWR XFMR LAMINATED 30VA TH |
3,996 | 18.58 |
RFQ |
Datasheet |
Box | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3A, Series 1.5A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms |
|

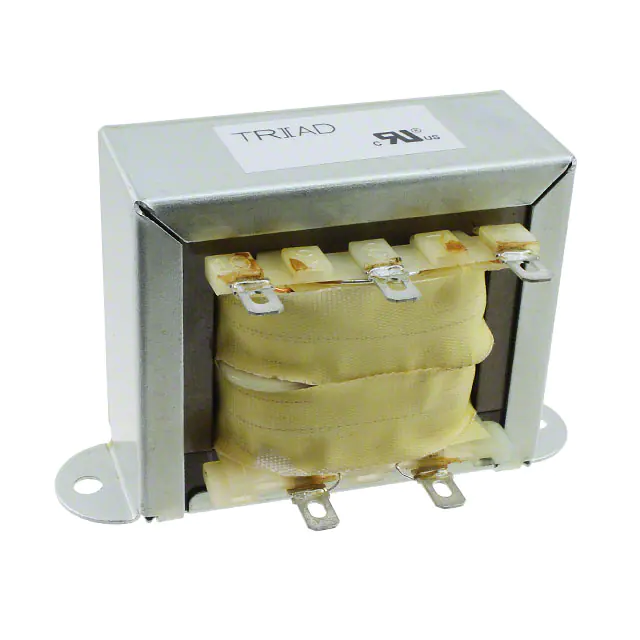

F7-20PWR XFMR LAMINATED 56VA CHAS MT |
3,953 | 18.44 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 20V | 2.8A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
F7-16PWR XFMR LAMINATED 56VA CHAS MT |
2,937 | 18.44 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 16V | 3.5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
TCT50-09E07ABPWR XFMR LAMINATED 50VA CHAS MT |
3,564 | 18.87 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|

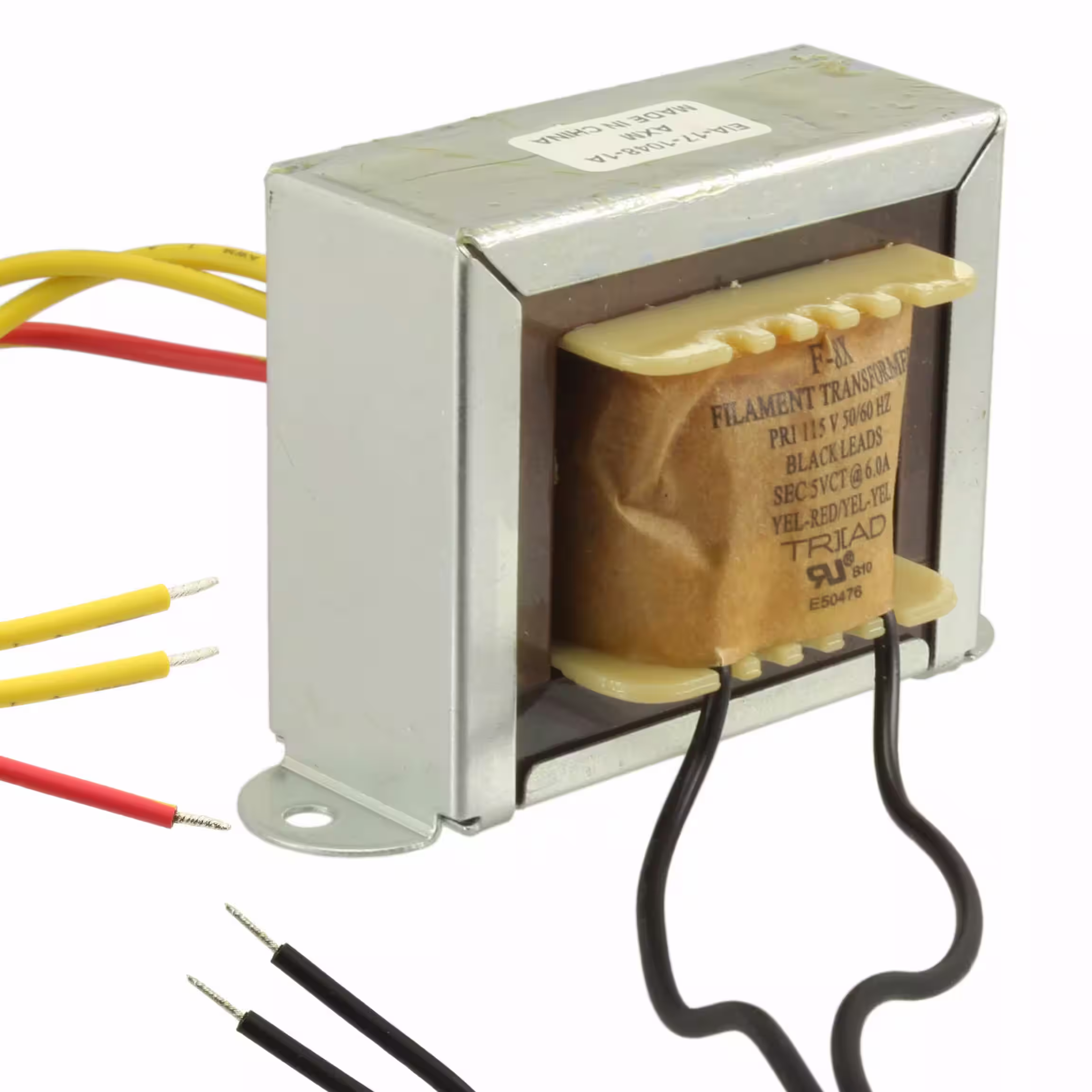

F-8XPWR XFMR LAMINATED 30VA CHAS MT |
3,886 | 19.06 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 5V | 6A | Single | Single | Yes | 30VA | Chassis Mount | Wire Leads | 95.25mm L x 53.97mm W | 57.94mm | 1500Vrms |
|

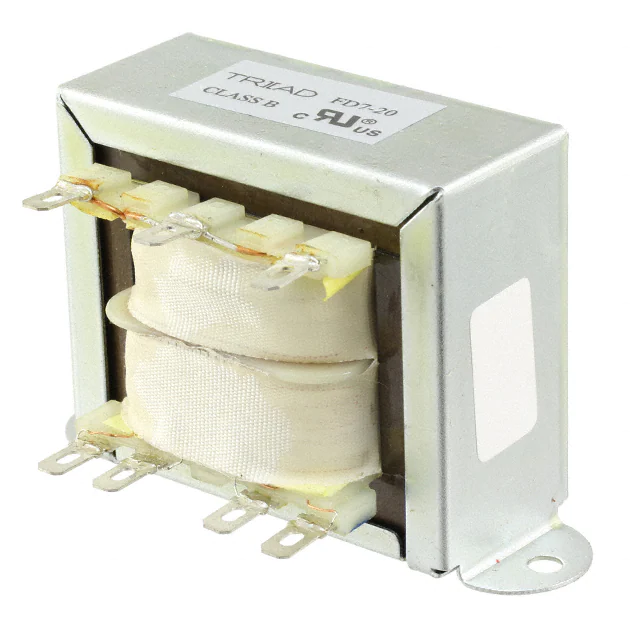

FD7-20PWR XFMR LAMINATED 56VA CHAS MT |
2,327 | 19.08 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 20V | 2.8A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|

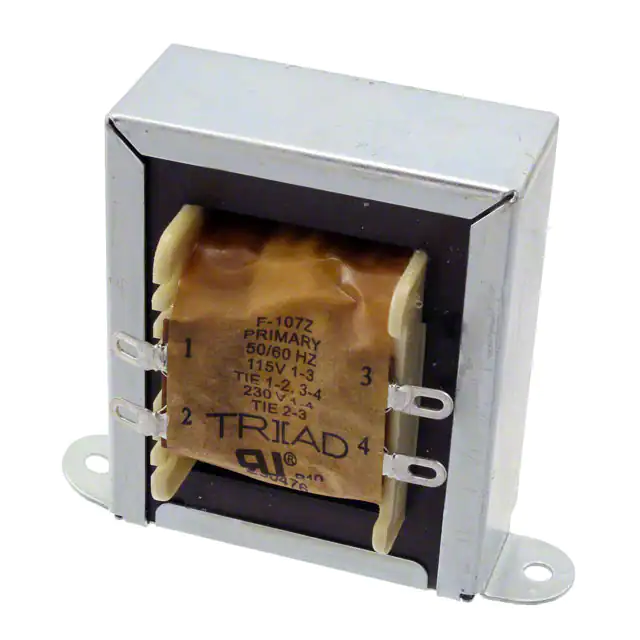

F-107ZPWR XFMR LAMINATED 48VA CHAS MT |
2,476 | 21.02 |
RFQ |
Datasheet |
Box | Control Transformers | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Chassis Mount | Solder Lug | 92.07mm L x 60.32mm W | 85.73mm | 1500Vrms |
|

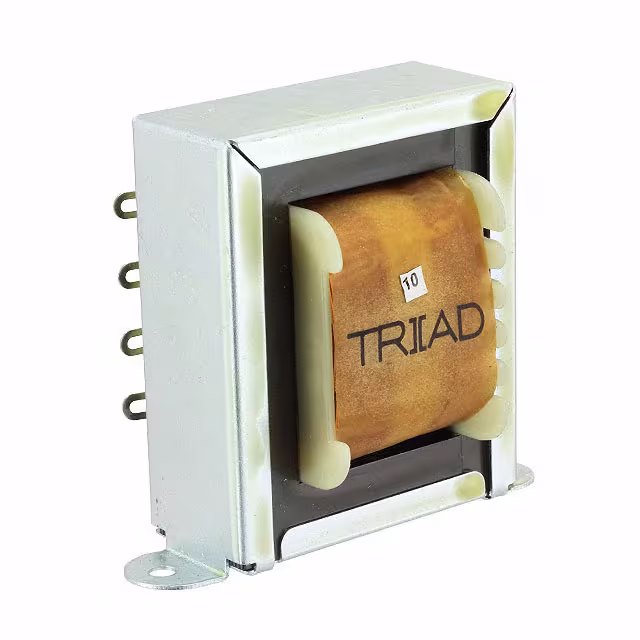

F-213ZPWR XFMR LAMINATED 48VA CHAS MT |
3,906 | 21.36 |
RFQ |
Datasheet |
Box | Control Transformers | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 2A, Series 1A | Single | Dual | No | 48VA | Chassis Mount | Solder Lug | 92.07mm L x 60.32mm W | 79.38mm | 1500Vrms |
