| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS48-050-C2PWR XFMR LAMINATED 2.4VA TH |
3,688 | 5.83 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 100mA, Series 50mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms |
|
F24-045PWR XFMR LAMINATED 1.1VA TH |
3,954 | 8.34 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 90mA, Series 45mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms |
|
F20-120PWR XFMR LAMINATED 2.5VA TH |
2,074 | 8.63 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 240mA, Series 120mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
F-138PPWR XFMR LAMINATED 1.5VA TH |
3,508 | 8.75 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 12.6V, Series 25.2V | Parallel 120mA, Series 60mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms |
|
F12-500-C2PWR XFMR LAMINATED 6VA TH |
2,983 | 9.30 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 1A, Series 500mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
TCT3-03E07AEPWR XFMR LAMINATED 2.5VA CHAS MT |
2,257 | 10.02 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V | 12V | 250mA | Single | Single | No | 2.5VA | Chassis Mount | Solder, Quick Connect | 60.00mm L x 42.50mm W | 54.10mm | 1500Vrms |
|
F-113XPWR XFMR LAMINATED 1.8VA CHAS MT |
3,641 | 10.13 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12V | 150mA | Single | Single | No | 1.8VA | Chassis Mount | Wire Leads | 60.32mm L x 34.93mm W | 34.93mm | 1500Vrms |
|
F12-1000-C2PWR XFMR LAMINATED 12VA TH |
2,500 | 11.11 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 4200Vrms |
|
|
F24-500-C2PWR XFMR LAMINATED 12VA TH |
3,422 | 11.11 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
FS36-170PWR XFMR LAMINATED 6VA TH |
467 | 11.25 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
|
FS10-600PWR XFMR LAMINATED 6VA TH |
3,161 | 11.25 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|

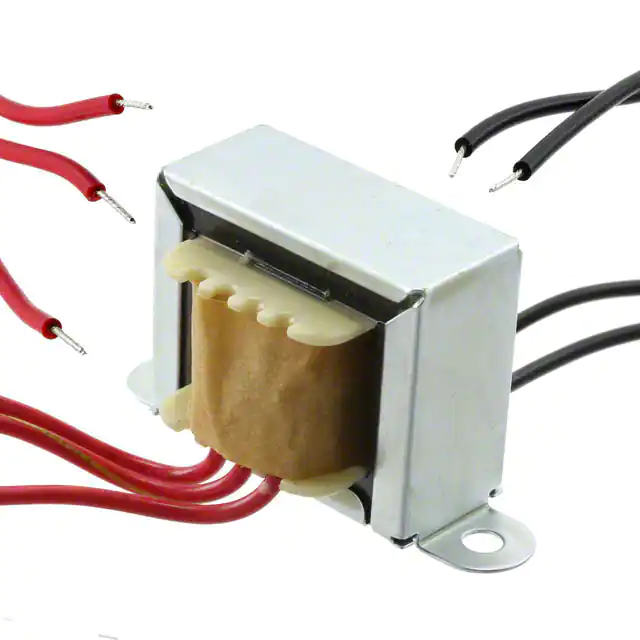

F-116XPWR XFMR LAMINATED 4.8VA CHAS MT |
3,500 | 11.95 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 200mA | Single | Single | Yes | 4.8VA | Chassis Mount | Wire Leads | 60.32mm L x 38.10mm W | 34.93mm | 1500Vrms |
|
F-1XPWR XFMR LAMINATED 7.5VA CHAS MT |
3,658 | 13.00 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 2.5V | 3A | Single | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms |
|

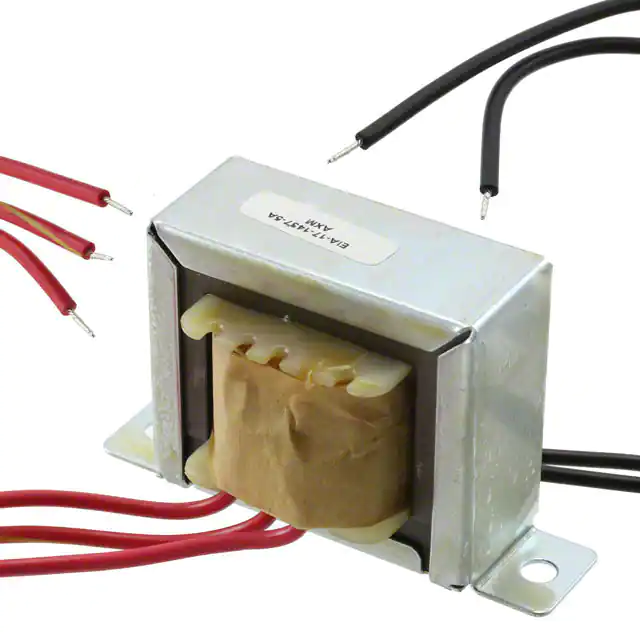

F-117XPWR XFMR LAMINATED 9.6VA CHAS MT |
107 | 13.00 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 400mA | Single | Single | Yes | 9.6VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms |
|

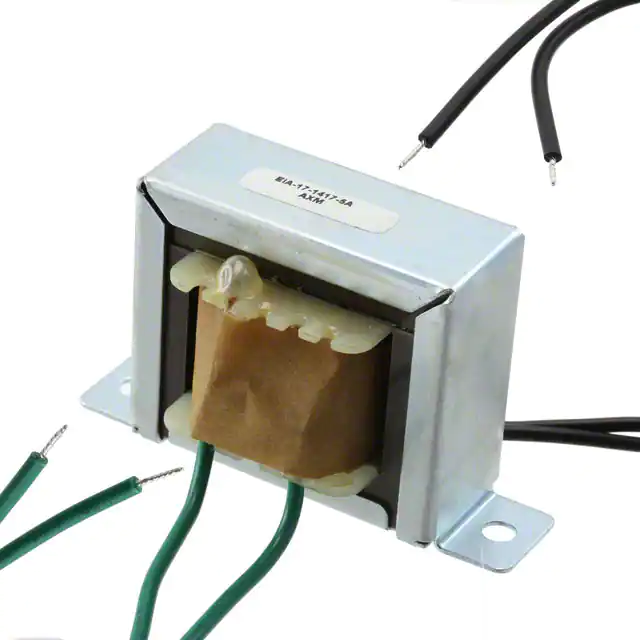

F-114XPWR XFMR LAMINATED 8.4VA CHAS MT |
2,944 | 13.00 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12V | 700mA | Single | Single | No | 8.4VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms |
|
FP20-300PWR XFMR LAMINATED 6VA TH |
113 | 13.42 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms |
|

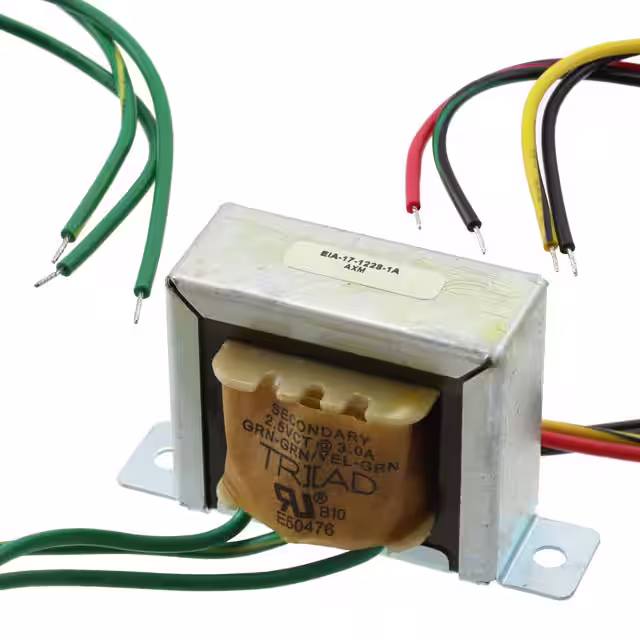

F-301XPWR XFMR LAMINATED 7.5VA CHAS MT |
2,185 | 14.18 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 2.5V | 3A | Dual | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.45mm L x 41.28mm W | 41.28mm | 1500Vrms |
|
F24-800-C2PWR XFMR LAMINATED 20VA TH |
2,180 | 15.00 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1.6A, Series 800mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
VPS36-700PWR XFMR LAMINATED 25VA CHAS MT |
3,003 | 16.44 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 71.37mm | 4000Vrms |
|
|
VPS20-1250PWR XFMR LAMINATED 25VA CHAS MT |
2,288 | 16.28 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 58.67mm | 4000Vrms |
