| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP12-475PWR XFMR LAMINATED 6VA TH |
3,513 | 13.42 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 950mA, Series 475mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms |
|
FD5-12PWR XFMR LAMINATED 12VA CHAS MT |
2,915 | 13.55 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 12.6V | 1A | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|

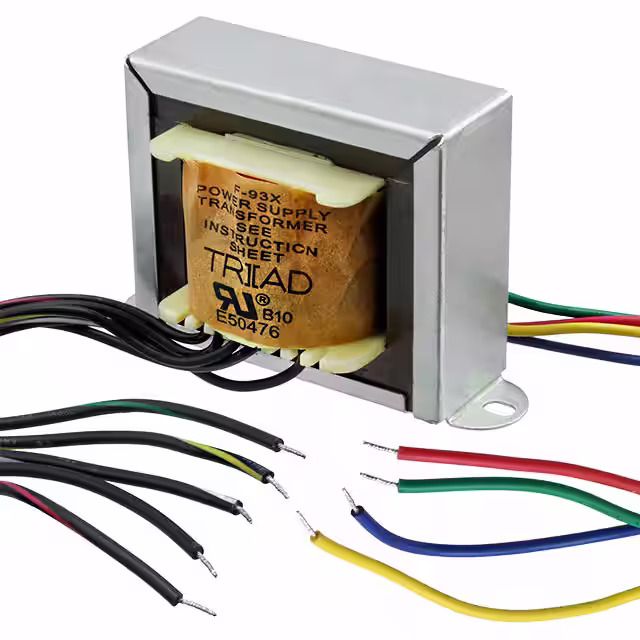

F-93XPWR XFMR LAMINATED CHASSIS MT |
3,734 | 30.32 |
RFQ |
Datasheet |
Box | Universal | Active | Laminated Core | 115V | 10V, 20V, 40V | 750mA | Single, Multiple Taps | Single, Multiple Taps | No | Varies | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 66.04mm | 1500Vrms |
|
F-325XPWR XFMR LAMINATED 18.9VA CHAS |
3,249 | 17.14 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 12.6V | 1.5A | Dual | Single | Yes | 18.9VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
F120-300PWR XFMR LAMINATED 36VA TH |
2,753 | 18.11 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 600mA, Series 300mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
F48-750PWR XFMR LAMINATED 36VA TH |
2,991 | 18.11 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 1.5A, Series 750mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
VPM240-10400PWR XFMR TORO 2500VA CHAS MT |
2,969 | 362.18 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 120V, Series 240V | Parallel 21.8A, Series 10.4A | Dual, Multiple Taps | Dual | No | 2500VA | Chassis Mount | Wire Leads | 215.00mm Dia | 120.00mm | 4000Vrms |
|
|
F10-250-C2PWR XFMR LAMINATED 2.5VA TH |
2,411 | 5.33 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
F16-070-C2PWR XFMR LAMINATED 1.1VA TH |
2,600 | 5.80 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms |
|

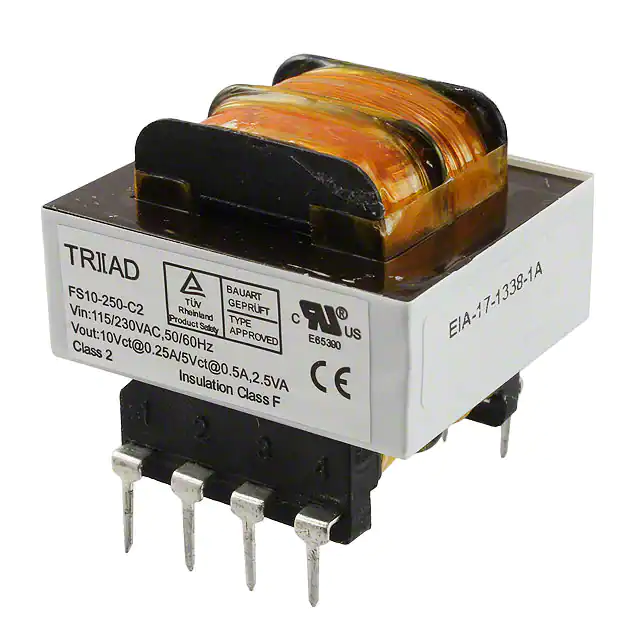

FS10-250-C2PWR XFMR LAMINATED 2.4VA TH |
3,306 | 5.83 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms |
|
FS28-085-C2PWR XFMR LAMINATED 2.4VA TH |
108 | 5.83 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms |
|
F48-023PWR XFMR LAMINATED 1.1VA TH |
2,750 | 8.34 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 46mA, Series 23mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms |
|
F3-120PWR XFMR LAMINATED 2.4VA CHAS MT |
3,763 | 8.65 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 120V | 20mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC |
|
|
F120-020PWR XFMR LAMINATED 2.5VA TH |
2,274 | 8.63 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 40mA, Series 20mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
|
F24-100PWR XFMR LAMINATED 2.5VA TH |
2,995 | 8.63 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
F3-12PWR XFMR LAMINATED 2.4VA CHAS MT |
3,522 | 8.65 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 12.6V | 200mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC |
|
F3-24PWR XFMR LAMINATED 2.4VA CHAS MT |
3,081 | 8.65 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 24V | 100mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC |
|
|
F3-36PWR XFMR LAMINATED 2.4VA CHAS MT |
3,328 | 8.65 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 36V | 65mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC |
|

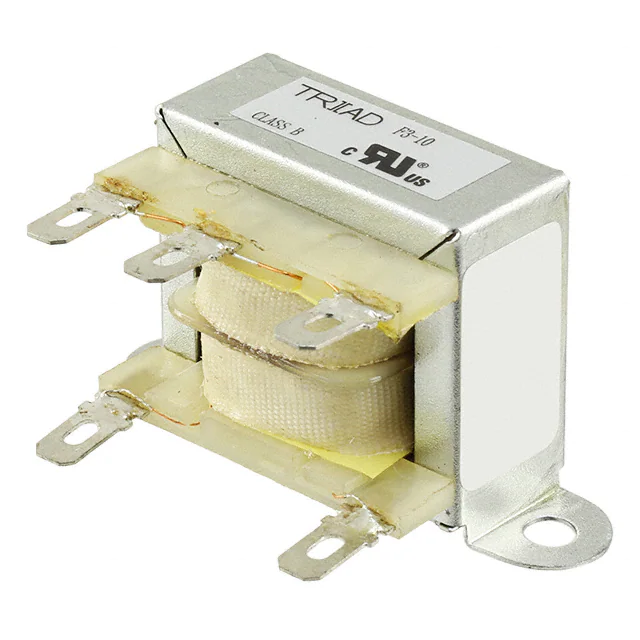

F3-10PWR XFMR LAMINATED 2.4VA CHAS MT |
3,498 | 8.65 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 10V | 250mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC |
|
F-333PPWR XFMR LAMINATED 1.5VA TH |
3,840 | 9.28 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 100mA, Series 50mA | Dual | Dual | No | 1.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 28.58mm | 1500Vrms |
