| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS80A223DF063CAP ALUM 22000UF 20% 63V SCREW |
3,811 | 22.01 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 22000 µF | ±20% | 63 V | 22mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.5 A @ 100 Hz | 14.7 A @ 10 kHz | 18 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS80A122DF400CAP ALUM 1200UF 20% 400V SCREW |
2,753 | 22.64 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 1200 µF | ±20% | 400 V | 113mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.7 A @ 100 Hz | 10.6 A @ 10 kHz | 64 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALF20C102EL450CAP ALUM 1000UF 20% 450V SNAP |
3,892 | 24.82 |
RFQ |
Datasheet |
Bulk | ALF20 | Active | 1000 µF | ±20% | 450 V | 114mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.95 A @ 100 Hz | 9.32 A @ 10 kHz | - | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole, Press-Fit |
|
|
ALS80A821DF500CAP ALUM 820UF 20% 500V SCREW |
3,214 | 26.13 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 820 µF | ±20% | 500 V | 261mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.1 A @ 100 Hz | 8.9 A @ 10 kHz | 194 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS70A133KE100CAP ALUM 13000UF 20% 100V SCREW |
2,550 | 27.25 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 13000 µF | ±20% | 100 V | 31mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.3 A @ 100 Hz | 17.3 A @ 10 kHz | 26 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS70A202KE400CAP ALUM 2000UF 20% 400V SCREW |
3,910 | 30.59 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 2000 µF | ±20% | 400 V | 87mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.6 A @ 100 Hz | 13.6 A @ 10 kHz | 52 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS70A162KE450CAP ALUM 1600UF 20% 450V SCREW |
3,685 | 31.02 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 1600 µF | ±20% | 450 V | 117mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7 A @ 100 Hz | 12.5 A @ 10 kHz | 76 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS70A362KE250CAP ALUM 3600UF 20% 250V SCREW |
2,312 | 31.26 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 3600 µF | ±20% | 250 V | 74mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 100 Hz | 13.6 A @ 10 kHz | 50 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS70A132KE500CAP ALUM 1300UF 20% 500V SCREW |
2,784 | 32.82 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 1300 µF | ±20% | 500 V | 203mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.4 A @ 100 Hz | 11.1 A @ 10 kHz | 154 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS80A163KF100CAP ALUM 16000UF 20% 100V SCREW |
3,691 | 34.62 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 16000 µF | ±20% | 100 V | 23mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.7 A @ 100 Hz | 17.8 A @ 10 kHz | 19 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|

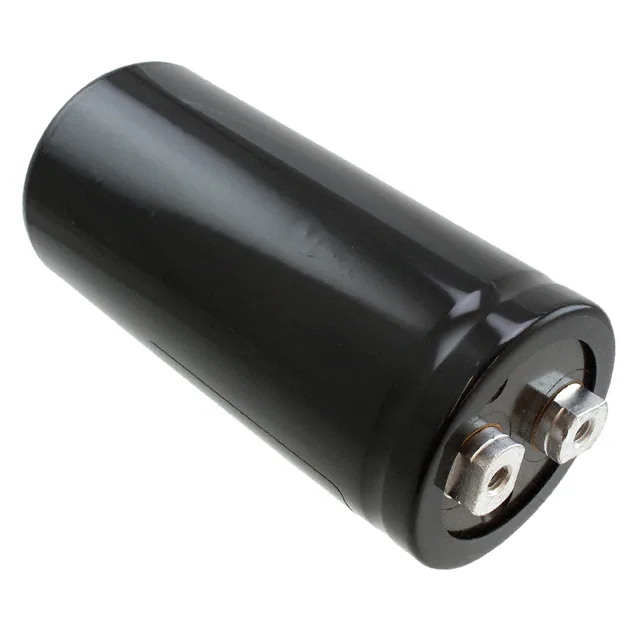

ALS30A152KF400CAP ALUM 1500UF 20% 400V SCREW |
2,253 | 39.46 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 1500 µF | ±20% | 400 V | 92mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.8 A @ 100 Hz | 13.1 A @ 10 kHz | 65 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS40A103KF100CAP ALUM 10000UF 20% 100V SCREW |
2,350 | 39.61 |
RFQ |
Datasheet |
Bulk | ALS40 | Active | 10000 µF | ±20% | 100 V | 21mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.9 A @ 100 Hz | 11.5 A @ 10 kHz | 18 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS30A152KF450CAP ALUM 1500UF 20% 450V SCREW |
2,889 | 41.84 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 1500 µF | ±20% | 450 V | 93mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 65 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS80A114QC040CAP ALUM 110000UF 20% 40V SCREW |
2,458 | 56.49 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 110000 µF | ±20% | 40 V | 13mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.4 A @ 100 Hz | 20.4 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS80A432MF400CAP ALUM 4300UF 20% 400V SCREW |
3,497 | 63.59 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 4300 µF | ±20% | 400 V | 38mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.6 A @ 100 Hz | 19.8 A @ 10 kHz | 22 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ELG228M063AR2AJCAP ALUM 2200UF 20% 63V SNAP |
156 | 3.48 |
RFQ |
Bulk | ELG | Active | 2200 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole | |
|
ALF80C241DC450CAP ALUM 24UF 20% 450V SNAP |
2,686 | 10.18 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 240 µF | ±20% | 450 V | 541mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.81 A @ 100 Hz | 5.09 A @ 10 kHz | 311 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole, Press-Fit |
|
|
ALF80C912DD063CAP ALUM 9100UF 20% 63V SNAP |
2,213 | 10.53 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 9100 µF | ±20% | 63 V | 44mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.68 A @ 100 Hz | 8.96 A @ 10 kHz | 34 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole, Press-Fit |
|
|
ALF80C102DF250CAP ALUM 1000UF 20% 250V SNAP |
2,766 | 11.69 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 1000 µF | ±20% | 250 V | 178mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.46 A @ 100 Hz | 7.52 A @ 10 kHz | 106 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
|
|
ALF80C162DF200CAP ALUM 1600UF 20% 200V SNAP |
2,879 | 11.88 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 1600 µF | ±20% | 200 V | 137mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.97 A @ 100 Hz | 7.94 A @ 10 kHz | 84 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
