| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS31A222DA100CAP ALUM 2200UF 20% 100V SCREW |
2,205 | 15.28 |
RFQ |
Datasheet |
Box | ALS31 | Active | 2200 µF | ±20% | 100 V | 69mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 100 Hz | 5.4 A @ 10 kHz | 55 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|
ALS30A221DB450CAP ALUM 220UF 20% 450V SCREW |
3,304 | 15.44 |
RFQ |
Datasheet |
Box | ALS30 | Active | 220 µF | ±20% | 450 V | 502mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 100 Hz | 5.1 A @ 10 kHz | 332 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.441 (62.00mm) | - | Chassis Mount |
|
|
ALS31A153DB040CAP ALUM 15000UF 20% 40V SCREW |
2,003 | 16.67 |
RFQ |
Datasheet |
Box | ALS31 | Active | 15000 µF | ±20% | 40 V | 17mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 100 Hz | 10 A @ 10 kHz | 14 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.441 (62.00mm) | - | Chassis Mount |
|
ALS40A221DE450CAP ALUM 220UF 20% 450V SCREW |
2,020 | 17.84 |
RFQ |
Datasheet |
Box | ALS40 | Active | 220 µF | ±20% | 450 V | 487mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | 6.2 A @ 10 kHz | 242 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
|
ALS31A472DE100CAP ALUM 4700UF 20% 100V SCREW |
2,630 | 20.47 |
RFQ |
Datasheet |
Box | ALS31 | Active | 4700 µF | ±20% | 100 V | 33mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.9 A @ 100 Hz | 8.8 A @ 10 kHz | 27 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
|
ALS30A471DF450CAP ALUM 470UF 20% 450V SCREW |
3,834 | 20.58 |
RFQ |
Datasheet |
Box | ALS30 | Active | 470 µF | ±20% | 450 V | 235mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4 A @ 100 Hz | 8.4 A @ 10 kHz | 155 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
A351GC472M063ACAP ALUM 4700UF 20% 63V SCREW |
3,637 | 27.78 |
RFQ |
Datasheet |
Bulk | PEH200 | Active | 4700 µF | ±20% | 63 V | 32mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | - | - | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 2.067 (52.50mm) | - | Chassis Mount |
|
ALF80G243KP100CAP ALUM 2400UF 20% 100V SNAP |
3,686 | 37.18 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 24000 µF | ±20% | 100 V | 17mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 18.4 A @ 10 kHz | 15 mOhms | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole, Press-Fit |
|
ALC10A331EE550CAP ALUM 330UF 20% 550V SNAP |
3,170 | 23.83 |
RFQ |
Datasheet |
Bulk | ALC10 | Active | 330 µF | ±20% | 550 V | 1.056Ohm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 100 Hz | 3.9 A @ 10 kHz | 920 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
PEH169MA4220QB2CAP ALUM 2200UF 63V SCREW |
2,349 | 26.13 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 2200 µF | -10%, +30% | 63 V | 46mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.512 (13.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|
|

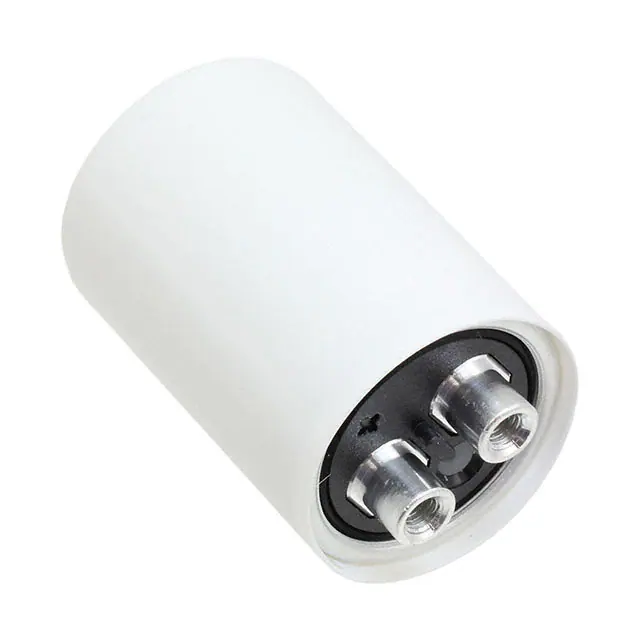

PEH200MA4470MB2CAP ALUM 4700UF 20% 63V SCREW |
2,010 | 27.71 |
RFQ |
Datasheet |
Bulk | PEH200 | Active | 4700 µF | ±20% | 63 V | 32mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | - | 21 mOhms | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 2.067 (52.50mm) | - | Chassis Mount |
|
ALC70C272FP400CAP ALUM 2700UF 20% 400V SNAP |
3,097 | 30.43 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 2700 µF | ±20% | 400 V | 55mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.49 A @ 100 Hz | 15.09 A @ 10 kHz | 30 mOhms | 0.886 (22.50mm) | 1.772 Dia (45.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
ALS30A473KE040CAP ALUM 47000UF 20% 40V SCREW |
2,841 | 31.90 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 47000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 100 Hz | 16.7 A @ 10 kHz | 11 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
A472GK103Q040ACAP ALUM 10000UF 40V SCREW |
3,021 | 32.53 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 10000 µF | -10%, +30% | 40 V | 16mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.512 (13.00mm) | 1.378 Dia (35.00mm) | 3.780 (96.00mm) | - | Chassis Mount |
|
ALF70G912KP200CAP ALUM 9100UF 20% 200V SNAP |
2,088 | 34.63 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 9100 µF | ±20% | 200 V | 29mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.39 A @ 100 Hz | 16.89 A @ 10 kHz | 20 mOhms | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole, Press-Fit |
|
|
ALS30A102KF450CAP ALUM 1000UF 20% 450V SCREW |
3,229 | 34.63 |
RFQ |
Datasheet |
Box | ALS30 | Active | 1000 µF | ±20% | 450 V | 118mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.5 A @ 100 Hz | 12.6 A @ 10 kHz | 79 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
|
ALC70C682KP250CAP ALUM 6800UF 20% 250V SNAP |
3,160 | 34.64 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 6800 µF | ±20% | 250 V | 32mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.63 A @ 100 Hz | 16.84 A @ 10 kHz | 20 mOhms | 0.886 (22.50mm) | 1.969 Dia (50.00mm) | 4.213 (107.00mm) | - | Through Hole |
|
PEH200MD5100MU2CAP ALUM 10000UF 20% 63V SCREW |
3,765 | 35.72 |
RFQ |
Datasheet |
Box | PEH200 | Active | 10000 µF | ±20% | 63 V | 15mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.6 A @ 100 Hz | 27 A @ 10 kHz | - | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 3.720 (94.50mm) | - | Chassis Mount |
|
|
ALC10A102EP550CAP ALUM 1000UF 20% 550V SNAP |
3,053 | 48.65 |
RFQ |
Datasheet |
Bulk | ALC10 | Active | 1000 µF | ±20% | 550 V | 352mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.86 A @ 100 Hz | 7.59 A @ 10 kHz | 308 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 4.213 (107.00mm) | - | Through Hole |
|

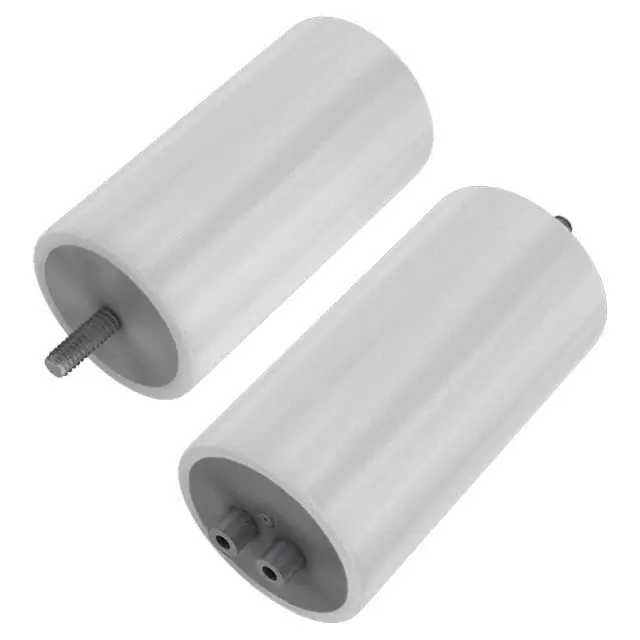

PEH169MJ5100QB2CAP ALUM 10000UF 63V SCREW |
3,065 | 49.24 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 10000 µF | -10%, +30% | 63 V | 13mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | 8 mOhms | 0.866 (22.00mm) | 2.032 Dia (51.60mm) | 3.878 (98.50mm) | - | Chassis Mount |
