| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESL108M063AM9AACAP ALUM 1000UF 20% 63V RADIAL |
760 | 2.93 |
RFQ |
Datasheet |
Bulk | ESL | Active | 1000 µF | ±20% | 63 V | 26mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 120 Hz | 2.62 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

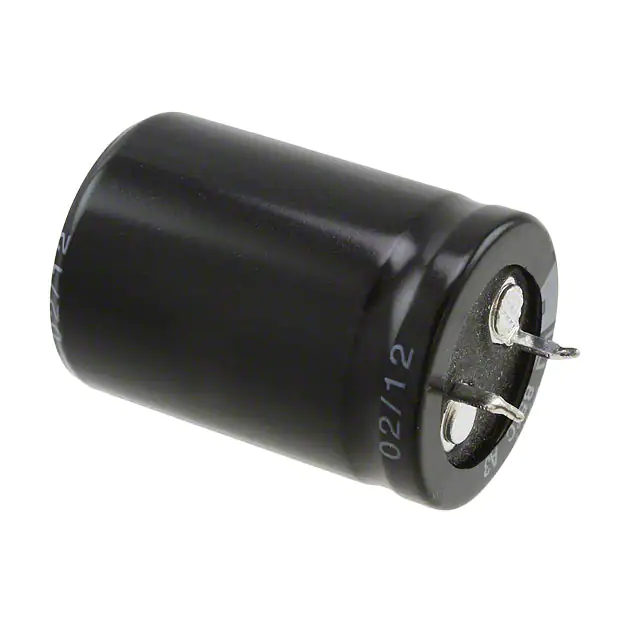

ELH478M050AR3AACAP ALUM 4700UF 20% 50V SNAP |
134 | 3.47 |
RFQ |
Datasheet |
Bulk | ELH | Active | 4700 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 3.48 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
ELH478M063AR4AVCAP ALUM 4700UF 20% 63V SNAP |
181 | 3.68 |
RFQ |
Datasheet |
Box | ELH | Active | 4700 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.35 A @ 120 Hz | 3.886 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
ELH108M250AS5AACAP ALUM 1000UF 20% 250V SNAP |
3,247 | 6.14 |
RFQ |
Datasheet |
Bulk | ELH | Active | 1000 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.95 A @ 10 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
ALC70A181BD450CAP ALUM 180UF 20% 450V SNAP |
3,768 | 7.79 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 180 µF | ±20% | 450 V | 778mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.22 A @ 100 Hz | 2.94 A @ 10 kHz | 437 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ALF70C822DC063CAP ALUM 8200UF 20% 63V SNAP |
2,462 | 8.65 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 8200 µF | ±20% | 63 V | 53mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.79 A @ 100 Hz | 7.5 A @ 10 kHz | 41 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole, Press-Fit |
|
|
ALF70C331DC450CAP ALUM 330UF 20% 450V SNAP |
2,720 | 9.39 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 330 µF | ±20% | 450 V | 427mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.97 A @ 100 Hz | 4.64 A @ 10 kHz | 241 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole, Press-Fit |
|
|
ALC70A471CF400CAP ALUM 470UF 20% 400V SNAP |
3,255 | 10.83 |
RFQ |
Datasheet |
Bulk | ALC70 | Active | 470 µF | ±20% | 400 V | 290mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 100 Hz | 5.73 A @ 10 kHz | 152 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALA7DA561DD400CAP ALUM 560UF 20% 400V SNAP |
2,008 | 11.60 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 560 µF | ±20% | 400 V | 318.6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.95 A @ 100 Hz | 4.48 A @ 10 kHz | 247 mOhms | - | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
ALF70C471DF450CAP ALUM 470UF 20% 450V SNAP |
2,837 | 11.62 |
RFQ |
Datasheet |
Bulk | ALF70 | Active | 470 µF | ±20% | 450 V | 299mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.54 A @ 100 Hz | 6.07 A @ 10 kHz | 167 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
|
|
ALA7DA681DF450CAP ALUM 680UF 20% 450V SNAP |
2,004 | 14.67 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 680 µF | ±20% | 450 V | 227.8mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.9 A @ 100 Hz | 3.7 A @ 10 kHz | 567.8 mOhms | - | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALS30A682DB063CAP ALUM 6800UF 20% 63V SCREW |
3,361 | 16.16 |
RFQ |
Datasheet |
Box | ALS30 | Active | 6800 µF | ±20% | 63 V | 26mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.2 A @ 100 Hz | 9 A @ 10 kHz | 20 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.441 (62.00mm) | - | Chassis Mount |
|

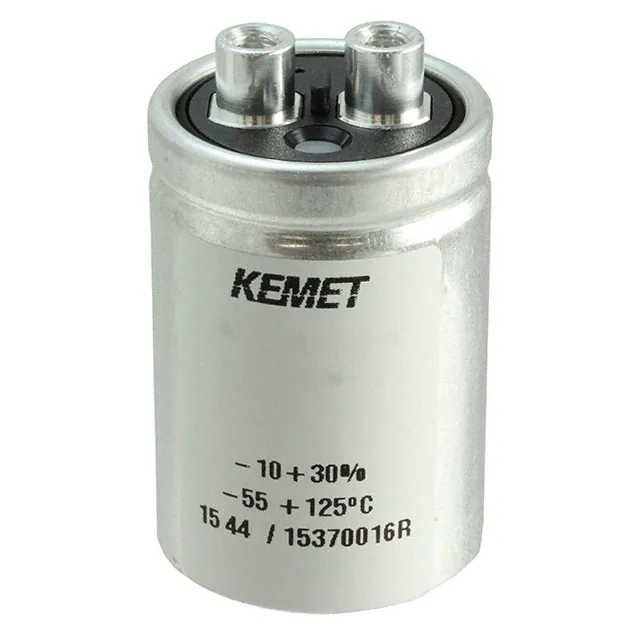

PEH205HA5100QU0CAP ALUM 10000UF 25V SCREW |
3,367 | 16.46 |
RFQ |
Datasheet |
Bulk | PEH205 | Active | 10000 µF | -10%, +30% | 25 V | 27mOhm @ 100Hz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 5.3 A @ 100 Hz | - | 17 mOhms | 0.512 (13.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|

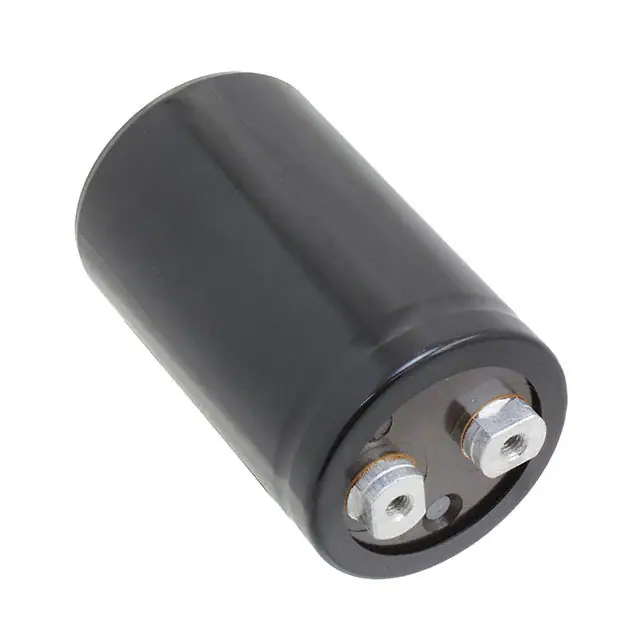

ALS30A223KE063CAP ALUM 22000UF 20% 63V SCREW |
3,806 | 31.44 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 22000 µF | ±20% | 63 V | 12mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 14.4 A @ 10 kHz | 11 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|

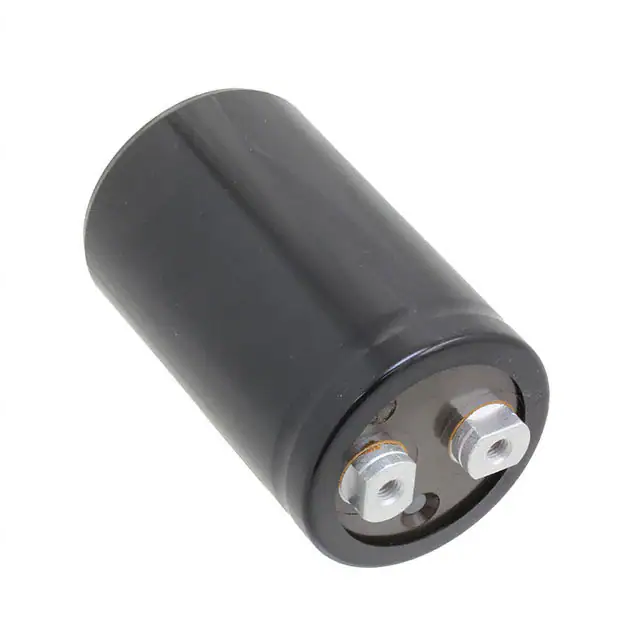

ALS31A103KE100CAP ALUM 10000UF 20% 100V SCREW |
2,917 | 34.45 |
RFQ |
Datasheet |
Bulk | ALS31 | Active | 10000 µF | ±20% | 100 V | 28mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.1 A @ 100 Hz | 10.5 A @ 10 kHz | 24 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
PEH200KD5220MB2CAP ALUM 22000UF 20% 40V SCREW |
3,800 | 36.84 |
RFQ |
Datasheet |
Bulk | PEH200 | Active | 22000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 100 Hz | - | 9 mOhms | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 3.760 (95.50mm) | - | Chassis Mount |
|

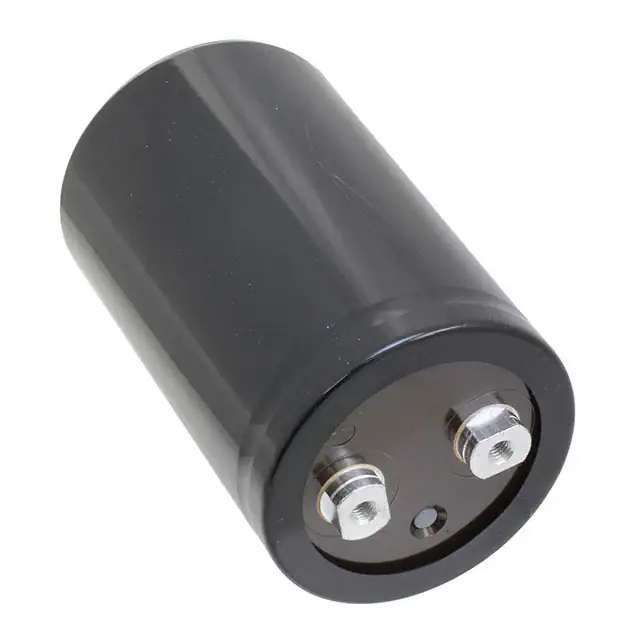

ALS30A473MF063CAP ALUM 47000UF 20% 63V SCREW |
3,580 | 50.87 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 47000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.7 A @ 100 Hz | 26.5 A @ 10 kHz | 7 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS31A222MF400CAP ALUM 2200UF 20% 400V SCREW |
2,869 | 51.40 |
RFQ |
Datasheet |
Box | ALS31 | Active | 2200 µF | ±20% | 400 V | 62mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | 18.8 A @ 10 kHz | 44 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
PEH200ZO4100MU2CAP ALUM 1000UF 20% 500V SCREW |
2,422 | 67.45 |
RFQ |
Datasheet |
Box | PEH200 | Active | 1000 µF | ±20% | 500 V | 130mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.8 A @ 100 Hz | 15.5 A @ 10 kHz | - | 1.260 (32.00mm) | 2.622 Dia (66.60mm) | 4.173 (106.00mm) | - | Chassis Mount |
|
|
ALS30A103NF200CAP ALUM 10000UF 20% 200V SCREW |
3,438 | 67.48 |
RFQ |
Datasheet |
Box | ALS30 | Active | 10000 µF | ±20% | 200 V | 28mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.9 A @ 100 Hz | 15.9 A @ 10 kHz | 25 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
