| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A451QM272M420AV00ACAP ALUM 2700UF 20% 420V SCREW |
2,812 | 108.27 |
RFQ |
Datasheet |
Bulk | PEH200 | Active | 2700 µF | ±20% | 420 V | 24mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.4 A @ 100 Hz | - | 12 mOhms | 1.122 (28.50mm) | 2.622 Dia (66.60mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS70A163QS450CAP ALUM 16000UF 20% 450V SCREW |
2,587 | 154.49 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 16000 µF | ±20% | 450 V | 16mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.2 A @ 100 Hz | 36.2 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
ESH107M063AH9AACAP ALUM 100UF 20% 63V RADIAL |
12,133 | 0.48 |
RFQ |
Datasheet |
Bulk | ESH | Active | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 390 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
ESH106M400AH2AACAP ALUM 10UF 20% 400V RADIAL |
815 | 0.66 |
RFQ |
Datasheet |
Bulk | ESH | Active | 10 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 128 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
ESW475M025AC3AACAP ALUM 4.7UF 20% 25V RADIAL |
778 | 0.30 |
RFQ |
Datasheet |
Box | ESW | Active | 4.7 µF | ±20% | 25 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESH476M450AM7AACAP ALUM 47UF 20% 450V RADIAL |
823 | 1.99 |
RFQ |
Datasheet |
Bulk | ESH | Active | 47 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 416 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

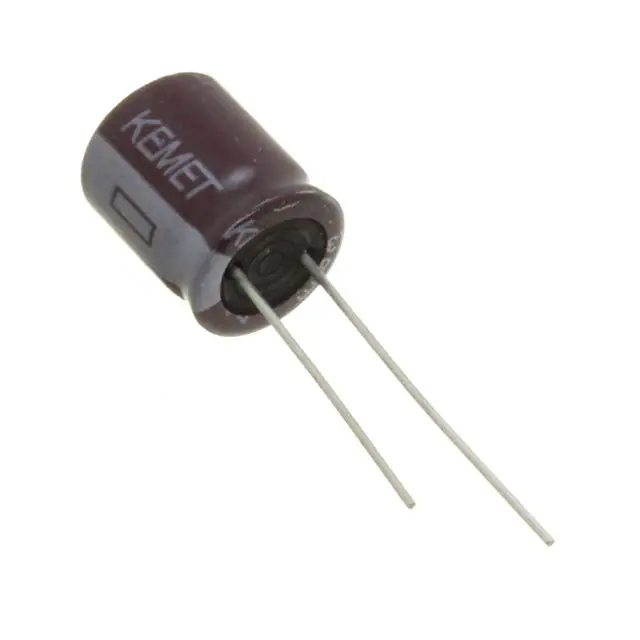

ESE475M400AH9AACAP ALUM 4.7UF 20% 400V RADIAL |
946 | 0.45 |
RFQ |
Datasheet |
Bulk | ESE | Active | 4.7 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 49 mA @ 120 Hz | 73.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
ESH108M6R3AH1AACAP ALUM 1000UF 20% 6.3V RADIAL |
695 | 0.48 |
RFQ |
Datasheet |
Bulk | ESH | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 540.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
ESE475M400AH1AACAP ALUM 4.7UF 20% 400V RADIAL |
698 | 0.50 |
RFQ |
Datasheet |
Box | ESE | Active | 4.7 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 49 mA @ 120 Hz | 73.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.945 (24.00mm) | - | Through Hole |
|
ESC687M010AH1AACAP ALUM 680UF 20% 10V RADIAL |
154 | 0.58 |
RFQ |
Datasheet |
Bulk | ESC | Active | 680 µF | ±20% | 10 V | 85mOhm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 800 mA @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
ESK227M063AH2AACAP ALUM 220UF 20% 63V RADIAL |
470 | 0.68 |
RFQ |
Datasheet |
Box | ESK | Active | 220 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 492 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
ALS70A822DA063CAP ALUM 8200UF 20% 63V SCREW |
2,186 | 14.66 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 8200 µF | ±20% | 63 V | 56mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 A @ 100 Hz | 11.1 A @ 10 kHz | 44 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.126 (54.00mm) | - | Chassis Mount |
|
ALS80A103DB063CAP ALUM 10000UF 20% 63V SCREW |
3,659 | 16.07 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 10000 µF | ±20% | 63 V | 43mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.2 A @ 100 Hz | 11.7 A @ 10 kHz | 34 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.520 (64.00mm) | - | Chassis Mount |
|
ALF20C103EC063CAP ALUM 10000UF 20% 63V SNAP |
3,243 | 20.07 |
RFQ |
Datasheet |
Bulk | ALF20 | Active | 10000 µF | ±20% | 63 V | 80mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.58 A @ 100 Hz | 4.67 A @ 10 kHz | - | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 1.457 (37.00mm) | - | Through Hole, Press-Fit |
|
|
ALS70A333KE063CAP ALUM 33000UF 20% 63V SCREW |
3,325 | 28.57 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 33000 µF | ±20% | 63 V | 20mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.1 A @ 100 Hz | 18.7 A @ 10 kHz | 17 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS80A123KE100CAP ALUM 12000UF 20% 100V SCREW |
2,628 | 29.67 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 12000 µF | ±20% | 100 V | 30mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.6 A @ 100 Hz | 15.4 A @ 10 kHz | 25 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS70A203KF100CAP ALUM 20000UF 20% 100V SCREW |
3,332 | 34.10 |
RFQ |
Datasheet |
Tray | ALS70 | Active | 20000 µF | ±20% | 100 V | 22mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 20.1 A @ 10 kHz | 19 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS70A363MF100CAP ALUM 36000UF 20% 100V SCREW |
2,853 | 49.11 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 36000 µF | ±20% | 100 V | 14mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 100 Hz | 27.7 A @ 10 kHz | 12 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS71A123MF200CAP ALUM 12000UF 20% 200V SCREW |
2,874 | 50.64 |
RFQ |
Datasheet |
Bulk | ALS71 | Active | 12000 µF | ±20% | 200 V | 29mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.8 A @ 100 Hz | 22.7 A @ 10 kHz | 22 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
EDH476M200A9TAACAP ALUM 47UF 20% 200V SMD |
275 | 2.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDH | Active | 47 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 275 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
