| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALF80C511DF400CAP ALUM 510UF 20% 400V SNAP |
2,018 | 12.19 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 510 µF | ±20% | 400 V | 242mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.74 A @ 100 Hz | 7.36 A @ 10 kHz | 125 mOhms | 0.886 (22.50mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole, Press-Fit |
|
ALC80A681EF400CAP ALUM 680UF 20% 400V SNAP |
3,286 | 13.45 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 680 µF | ±20% | 400 V | 187mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 100 Hz | 8.22 A @ 10 kHz | 98 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
ALF80C823EH025CAP ALUM 82000UF 20% 25V SNAP |
3,810 | 15.73 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 82000 µF | ±20% | 25 V | 20mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.85 A @ 100 Hz | 13.05 A @ 10 kHz | 18 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole, Press-Fit |
|
|
ALF80C112EH350CAP ALUM 1100UF 20% 350V SNAP |
2,980 | 16.45 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 1100 µF | ±20% | 350 V | 132mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.26 A @ 100 Hz | 9.52 A @ 10 kHz | 71 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole, Press-Fit |
|
|
ALF80G112EH350CAP ALUM 1100UF 20% 350V SNAP |
2,727 | 16.45 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 1100 µF | ±20% | 350 V | 132mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.26 A @ 100 Hz | 9.52 A @ 10 kHz | 71 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole, Press-Fit |
|
|
ALF80G911EH400CAP ALUM 910UF 20% 400V SNAP |
2,184 | 17.13 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 910 µF | ±20% | 400 V | 142mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.04 A @ 100 Hz | 9.48 A @ 10 kHz | 75 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole, Press-Fit |
|

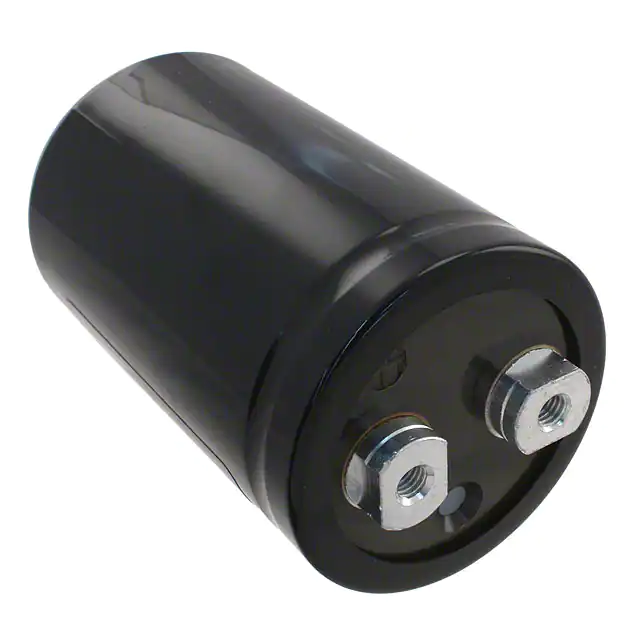

ALS31A152DF200CAP ALUM 1500UF 20% 200V SCREW |
3,534 | 19.22 |
RFQ |
Datasheet |
Box | ALS31 | Active | 1500 µF | ±20% | 200 V | 90mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 100 Hz | 9.1 A @ 10 kHz | 72 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
|
ALF80G751EH450CAP ALUM 750UF 20% 450V SNAP |
3,379 | 20.28 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 750 µF | ±20% | 450 V | 181mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.86 A @ 100 Hz | 9.23 A @ 10 kHz | 106 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole, Press-Fit |
|
|
ALF80C751EH450CAP ALUM 750UF 20% 450V SNAP |
3,714 | 20.28 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 750 µF | ±20% | 450 V | 181mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.86 A @ 100 Hz | 9.23 A @ 10 kHz | 106 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole, Press-Fit |
|
|
ALC80A112EL450CAP ALUM 1100UF 20% 450V SNAP |
2,081 | 23.49 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 1100 µF | ±20% | 450 V | 125mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.92 A @ 100 Hz | 11.12 A @ 10 kHz | 74 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
|
ALF80G112EL450CAP ALUM 1100UF 20% 450V SNAP |
3,877 | 24.93 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 1100 µF | ±20% | 450 V | 125mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.92 A @ 100 Hz | 11.12 A @ 10 kHz | 74 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole, Press-Fit |
|
|
ALF80C112EL450CAP ALUM 1100UF 20% 450V SNAP |
2,695 | 24.93 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 1100 µF | ±20% | 450 V | 125mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.92 A @ 100 Hz | 11.12 A @ 10 kHz | 74 mOhms | 0.984 (25.00mm) | 1.575 Dia (40.00mm) | 3.228 (82.00mm) | - | Through Hole, Press-Fit |
|

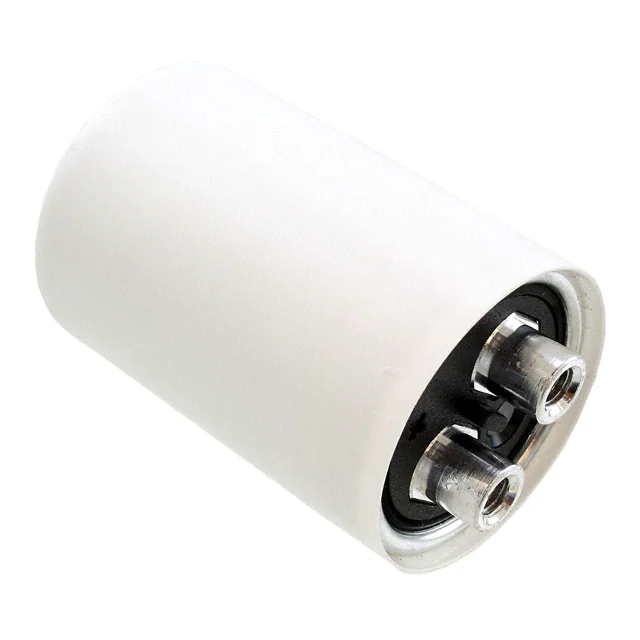

PEH169GA5100QU2CAP ALUM 10000UF 16V SCREW |
2,353 | 25.03 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 10000 µF | -10%, +30% | 16 V | 27mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.512 (13.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Chassis Mount |
|
PEH200KA4680MU2CAP ALUM 6800UF 20% 40V SCREW |
3,932 | 25.75 |
RFQ |
Datasheet |
Box | PEH200 | Active | 6800 µF | ±20% | 40 V | 33mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.9 A @ 100 Hz | 18.1 A @ 10 kHz | - | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 2.028 (51.50mm) | - | Chassis Mount |
|
|
ALS31A681KE450CAP ALUM 680UF 20% 450V SCREW |
3,938 | 28.51 |
RFQ |
Datasheet |
Box | ALS31 | Active | 680 µF | ±20% | 450 V | 175mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.9 A @ 100 Hz | 9.9 A @ 10 kHz | 117 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
|
PEH200HC5220MB2CAP ALUM 22000UF 20% 25V SCREW |
2,477 | 30.62 |
RFQ |
Datasheet |
Box | PEH200 | Active | 22000 µF | ±20% | 25 V | 17mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.2 A @ 100 Hz | 24.4 A @ 10 kHz | - | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 2.894 (73.50mm) | - | Chassis Mount |
|
ALS30A102KE400CAP ALUM 1000UF 20% 400V SCREW |
3,050 | 31.06 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 1000 µF | ±20% | 400 V | 139mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 100 Hz | 10.3 A @ 10 kHz | 98 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
PEH200MC4680MU2CAP ALUM 6800UF 20% 63V SCREW |
3,465 | 31.26 |
RFQ |
Datasheet |
Box | PEH200 | Active | 6800 µF | ±20% | 63 V | 21mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.5 A @ 100 Hz | 23.5 A @ 10 kHz | - | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 2.894 (73.50mm) | - | Chassis Mount |
|
|
ALS31A102KE400CAP ALUM 1000UF 20% 400V SCREW |
2,284 | 31.36 |
RFQ |
Datasheet |
Box | ALS31 | Active | 1000 µF | ±20% | 400 V | 139mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 100 Hz | 10.3 A @ 10 kHz | 98 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 3.228 (82.00mm) | - | Chassis Mount |
|
|
PEH200YC3220MU2CAP ALUM 220UF 20% 450V SCREW |
2,055 | 32.66 |
RFQ |
Datasheet |
Box | PEH200 | Active | 220 µF | ±20% | 450 V | 240mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | 11.9 A @ 10 kHz | - | 0.512 (13.00mm) | 1.441 Dia (36.60mm) | 2.894 (73.50mm) | - | Chassis Mount |
