| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALF80G222FP400CAP ALUM 2200UF 20% 400V SNAP |
3,418 | 33.43 |
RFQ |
Datasheet |
Bulk | ALF80 | Active | 2200 µF | ±20% | 400 V | 60mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.24 A @ 100 Hz | 16.09 A @ 10 kHz | 32 mOhms | 0.984 (25.00mm) | 1.772 Dia (45.00mm) | 4.213 (107.00mm) | - | Through Hole, Press-Fit |
|
ALS31A102MF500CAP ALUM 1000UF 20% 500V SCREW |
3,400 | 46.34 |
RFQ |
Datasheet |
Box | ALS31 | Active | 1000 µF | ±20% | 500 V | 175mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.1 A @ 100 Hz | 13.8 A @ 10 kHz | 96 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
|
ALS31A682MF200CAP ALUM 6800UF 20% 200V SCREW |
3,324 | 50.30 |
RFQ |
Datasheet |
Box | ALS31 | Active | 6800 µF | ±20% | 200 V | 27mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.7 A @ 100 Hz | 17.7 A @ 10 kHz | 23 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
PEH200KJ5470MB2CAP ALUM 47000UF 20% 40V SCREW |
3,022 | 57.81 |
RFQ |
Datasheet |
Box | PEH200 | Active | 47000 µF | ±20% | 40 V | 8mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.1 A @ 100 Hz | 33.6 A @ 10 kHz | - | 1.122 (28.50mm) | 2.031 Dia (51.60mm) | 3.760 (95.50mm) | - | Chassis Mount |
|
ALS30A223MF100CAP ALUM 22000UF 20% 100V SCREW |
3,741 | 58.66 |
RFQ |
Datasheet |
Box | ALS30 | Active | 22000 µF | ±20% | 100 V | 13mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.4 A @ 100 Hz | 19.1 A @ 10 kHz | 12 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
|
PEH200PJ5100MU2CAP ALUM 10000UF 20% 100V SCREW |
3,201 | 63.75 |
RFQ |
Datasheet |
Box | PEH200 | Active | 10000 µF | ±20% | 100 V | - | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.3 A @ 100 Hz | 25.6 A @ 10 kHz | - | 0.866 (22.00mm) | 2.031 Dia (51.60mm) | 3.760 (95.50mm) | - | Chassis Mount |
|
|
PEH200YK4100MU2CAP ALUM 1000UF 20% 450V SCREW |
3,518 | 65.99 |
RFQ |
Datasheet |
Box | PEH200 | Active | 1000 µF | ±20% | 450 V | 60mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.7 A @ 100 Hz | 23.6 A @ 10 kHz | - | 1.122 (28.50mm) | 2.031 Dia (51.60mm) | 4.075 (103.50mm) | - | Chassis Mount |
|

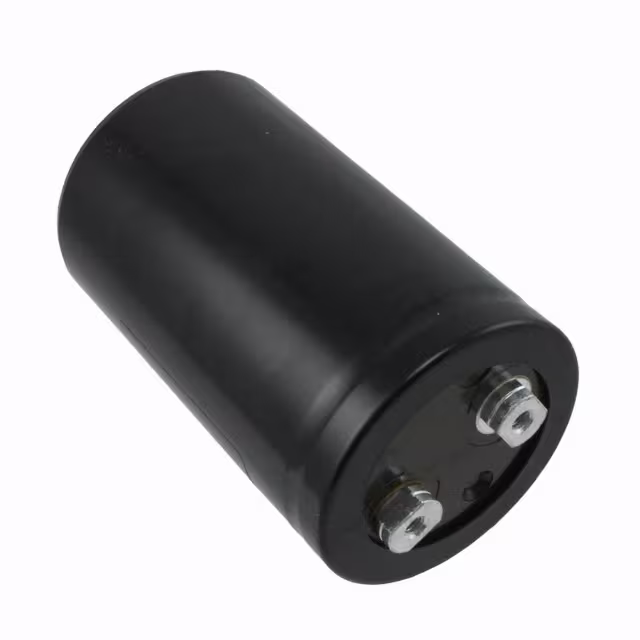

ALS30A332LF400CAP ALUM 3300UF 20% 400V SCREW |
2,768 | 66.71 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 3300 µF | ±20% | 400 V | 54mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.81 A @ 100 Hz | 20.54 A @ 10 kHz | 36 mOhms | 1.122 (28.50mm) | 2.500 Dia (63.50mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
ALS31A332NF400CAP ALUM 3300UF 20% 400V SCREW |
3,061 | 70.16 |
RFQ |
Datasheet |
Bulk | ALS31 | Active | 3300 µF | ±20% | 400 V | 49mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.4 A @ 100 Hz | 21.3 A @ 10 kHz | 36 mOhms | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
PEH200SO4470MU2CAP ALUM 4700UF 20% 250V SCREW |
3,676 | 84.10 |
RFQ |
Datasheet |
Box | PEH200 | Active | 4700 µF | ±20% | 250 V | 29mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.3 A @ 100 Hz | 27.2 A @ 10 kHz | - | 1.260 (32.00mm) | 2.622 Dia (66.60mm) | 4.173 (106.00mm) | - | Chassis Mount |
|
ALS70A911DA250CAP ALUM 910UF 20% 250V SCREW |
3,722 | 15.31 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 910 µF | ±20% | 250 V | 256mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | 6.9 A @ 10 kHz | 166 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.126 (54.00mm) | - | Chassis Mount |
|
ALS80A431DA400CAP ALUM 430UF 20% 400V SCREW |
3,921 | 15.59 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 430 µF | ±20% | 400 V | 308mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | 6.4 A @ 10 kHz | 173 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 2.126 (54.00mm) | - | Chassis Mount |
|
|
ALS70A112DE350CAP ALUM 1100UF 20% 350V SCREW |
2,229 | 18.77 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 1100 µF | ±20% | 350 V | 154mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 100 Hz | 9.9 A @ 10 kHz | 90 mOhms | 0.504 (12.80mm) | 1.417 Dia (36.00mm) | 3.307 (84.00mm) | - | Chassis Mount |
|
|
ALS70A753QC063CAP ALUM 75000UF 20% 63V SCREW |
2,770 | 57.50 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 75000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.3 A @ 100 Hz | 24 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS80A683QC063CAP ALUM 68000UF 20% 63V SCREW |
2,032 | 58.11 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 68000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.9 A @ 100 Hz | 20.5 A @ 10 kHz | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS70A362QC450CAP ALUM 3600UF 20% 450V SCREW |
3,454 | 62.87 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 3600 µF | ±20% | 450 V | 61mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.8 A @ 100 Hz | 17.5 A @ 10 kHz | 41 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS80A362QC400CAP ALUM 3600UF 20% 400V SCREW |
3,947 | 64.09 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 3600 µF | ±20% | 400 V | 50mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.3 A @ 100 Hz | 15.7 A @ 10 kHz | 31 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 2.717 (69.00mm) | - | Chassis Mount |
|
|
ALS80A272MF500CAP ALUM 2700UF 20% 500V SCREW |
3,980 | 65.07 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 2700 µF | ±20% | 500 V | 81mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.2 A @ 100 Hz | 18.2 A @ 10 kHz | 60 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
|
ALS80A103QP400CAP ALUM 10000UF 20% 400V SCREW |
3,613 | 107.98 |
RFQ |
Datasheet |
Bulk | ALS80 | Active | 10000 µF | ±20% | 400 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.2 A @ 100 Hz | 27.7 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.827 (148.00mm) | - | Chassis Mount |
|
|
ALS70A754QT040CAP ALUM 750000UF 20% 40V SCREW |
3,516 | 146.54 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 750000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42.7 A @ 100 Hz | 43.7 A @ 10 kHz | 7 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
