| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS30A682NT500CAP ALUM 6800UF 20% 500V SCREW |
3,219 | 165.26 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 6800 µF | ±20% | 500 V | - | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.032 Dia (77.00mm) | 8.740 (222.00mm) | - | Chassis Mount |
|

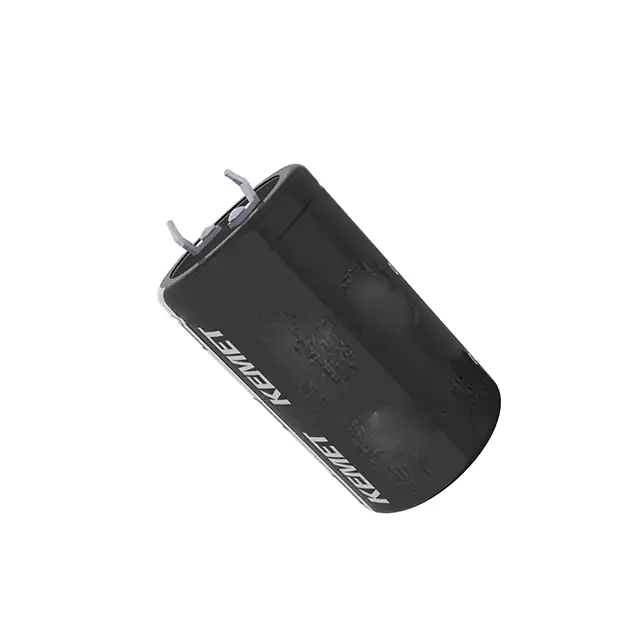

ELG109M025AQ4AACAP ALUM 10000UF 20% 25V SNAP |
369 | 3.12 |
RFQ |
Datasheet |
Bulk | ELG | Active | 10000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.784 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
PES227KKP4220ME4ALUMINUM ELECTROLYTIC, CROWN SMD |
2,149 | 8.57 |
RFQ |
Datasheet |
Tray | PES227 | Active | 2200 µF | ±20% | 40 V | 47mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 6.65 A @ 100 Hz | 19.76 A @ 100 kHz | - | - | 1.693 L x 0.709 W (43.00mm x 18.00mm) | 0.697 (17.70mm) | 1.994 L x 0.610 W (50.65mm x 15.50mm) | Surface Mount |
|

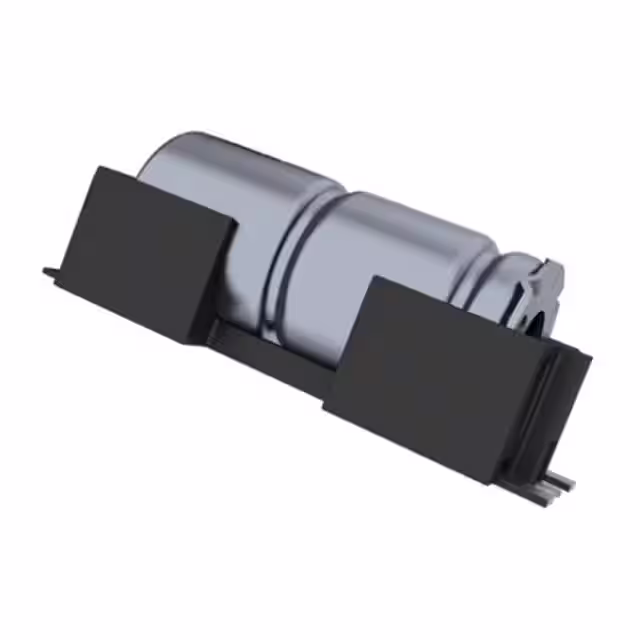

PES228MKP3750QE4ALUMINUM ELECTROLYTIC, CROWN SMD |
100 | 8.56 |
RFQ |
Datasheet |
Tray | PES228 | Active | 750 µF | -10%, +30% | 63 V | 93mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 5.18 A @ 100 Hz | 15.392 A @ 100 kHz | - | - | 1.693 L x 0.709 W (43.00mm x 18.00mm) | 0.697 (17.70mm) | - | Surface Mount |
|
ALA7DA181CC550CAP ALUM 180UF 20% 550V SNAP |
2,583 | 11.27 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 180 µF | ±20% | 550 V | 943mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.4 A @ 100 Hz | 3 A @ 10 kHz | 651 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
ESK107M025AE3KACAP ALUM 100UF 20% 25V RADIAL |
815 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ESK | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 192 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESK106M063AC3FACAP ALUM 10UF 20% 63V RADIAL |
277 | 0.20 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 10 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 105 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESK106M100AE3EACAP ALUM 10UF 20% 100V RADIAL |
2,779 | 0.26 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 112.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
ESK226M050AC3FACAP ALUM 22UF 20% 50V RADIAL |
471 | 0.26 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 150 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESH107M6R3AC3AACAP ALUM 100UF 20% 6.3V RADIAL |
177 | 0.23 |
RFQ |
Datasheet |
Bulk | ESH | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 150 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
ESS226M035AE2EACAP ALUM 22UF 20% 35V RADIAL |
400 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESS | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 85.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.335 (8.50mm) | - | Through Hole |
|
EDK687M016A9PAACAP ALUM 680UF 20% 16V SMD |
500 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 680 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | - | Surface Mount |
|
|
ESK227M016AG3DACAP ALUM 220UF 20% 16V RADIAL |
286 | 0.38 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
DK225M050A9BAAKPLPCAP ALUM 2.2UF 20% 50V SMD |
937 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 20 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.222 (5.65mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EDK106M016A9BAACAP ALUM 10UF 20% 16V SMD |
307 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 35 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.222 (5.64mm) | 0.169 L x 0.217 W (4.30mm x 5.50mm) | Surface Mount |
|
ESK227M025AG3EACAP ALUM 220UF 20% 25V RADIAL |
179 | 0.40 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 348 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
ESK477M016AH1EACAP ALUM 470UF 20% 16V RADIAL |
112 | 0.46 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ESK | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
EDT476M016S9HAACAP ALUM 47UF 20% 16V SMD |
283 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDT | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EDK476M050A9HAACAP ALUM 47UF 20% 50V SMD |
9,785 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EDK | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 112.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.307 W (6.60mm x 7.80mm) | Surface Mount |
|
EXV227M016A9HAACAP ALUM 220UF 20% 16V SMD |
321 | 0.81 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | EXV | Active | 220 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Automotive | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
