| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCDA15C-8.TBTTVS DIODE 15VWM 33VC 16SOIC |
5,812 | 6.16 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 8 | 15V (Max) | 16.7V | 33V | 15A (8/20µs) | 500W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP3321ZATFTTVS DIODE 3.3V 8.5V SLP0603P2X3F |
111,699 | 0.41 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 1 | 3.3V (Max) | 3.7V | 8.5V | 4A (8/20µs) | 40W | No | General Purpose | 4.2pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP2411ZATFTTVS DIODE 24VWM 45V SLP0603P2X3F |
30,696 | 0.41 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | µClamp® | Active | Zener | - | 1 | 24V (Max) | 27V | 45V | 3A (8/20µs) | 150W | No | General Purpose | 9pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
|
UCLAMP3331ZATFTTVS DIODE 3.3V 10V SLP0603P2X3F |
26,995 | 0.44 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 1 | 3.3V (Max) | 3.9V | 10V | 5A (8/20µs) | 30W | No | General Purpose | 16.5pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
SM15.TCTTVS DIODE 15VWM 24VC SOT23-3 |
12,124 | 0.56 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 15V (Max) | 16.7V | 24V | 10A (8/20µs) | 300W | No | General Purpose | 100pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP2801T.TCTTVS DIODE 28VWM 60VC SLP1006P2T |
13,453 | 0.56 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 1 | - | 28V (Max) | 32V | 60V | 4A (8/20µs) | 240W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP5011ZATFTTVS DIODE 5VWM 12VC SLP0603P2X3F |
129,863 | 0.53 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 1 | 5V (Max) | 6.5V | 12V | 2A (8/20µs) | 30W | No | General Purpose | 4.2pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP5011ZATFTTVS DIODE 5V 12.5V SLP0603P2X3F |
32,931 | 0.53 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 5V (Max) | 6.5V | 12.5V | 4A (8/20µs) | 50W | No | HDMI | 0.4pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
|
RCLAMP0521Z.TFTTVS DIODE 5VWM 15VC SLP0603P2X3 |
48,724 | 0.60 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 5V (Max) | 6V | 15V | 4A (8/20µs) | 100W | No | General Purpose | 0.35pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP0501P.TCTTVS DIODE 5VWM 12.5VC SLP1006P2 |
88,903 | 0.56 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 1 | - | 5V (Max) | 6V | 12.5V | 16A (8/20µs) | 200W | No | General Purpose | 160pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

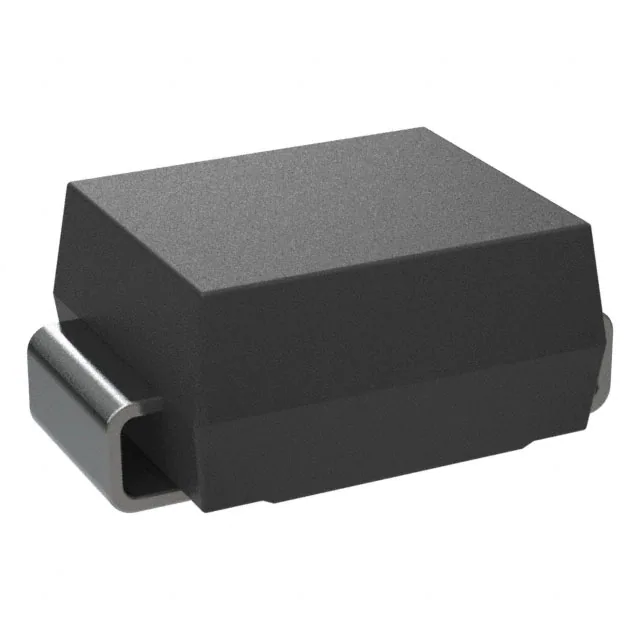

SMBJ24CATVS DIODE 24VWM 38.9VC SMB |
13,633 | 0.63 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 15.4A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
SMBJ33CATVS DIODE 33VWM 53.3VC SMB |
9,918 | 0.63 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 11.3A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SMBJ36CATVS DIODE 36VWM 58.1VC SMB |
7,847 | 0.63 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.3A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
|

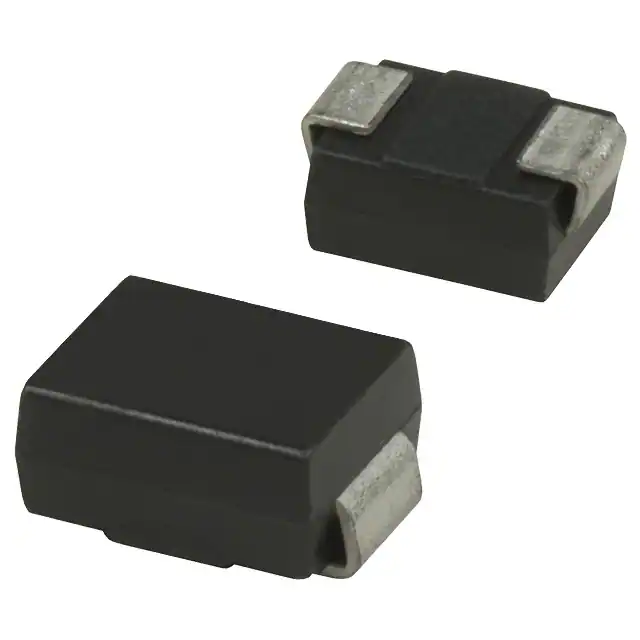

SMBJ30CATVS DIODE 30VWM 48.4VC SMB |
5,799 | 0.63 |
RFQ |
Datasheet |
DO-214AA, SMB | Tape & Reel (TR),Cut Tape (CT) | SMBJ | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 12.4A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Surface Mount |
|

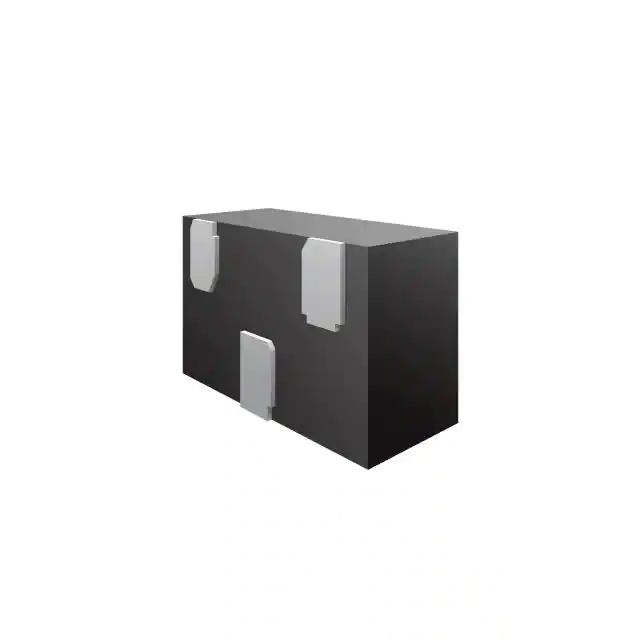

RCLAMP3552TQTNTTVS DIODE 3.5VWM 6.5V SLP1006N3T |
28,826 | 0.71 |
RFQ |
Datasheet |
3-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Zener | - | 2 | 3.5V (Max) | 7.5V | 6.5V | 4A (8/20µs) | - | No | Automotive, USB | 0.4pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP0501T.TCTTVS DIODE 5VWM 12.5VC SLP1006P2T |
10,536 | 0.64 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 1 | - | 5V (Max) | 6V | 12.5V | 2A (8/20µs) | 25W | No | General Purpose | 4.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0501T.TNTTVS DIODE 5VWM 15VC SLP1006P2T |
19,338 | 0.75 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | 1 | - | 5V (Max) | 6.9V | 15V | 10A (8/20µs) | 150W | No | General Purpose | 1.7pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP1571P.TNTTVS DIODE 15VWM 40VC SGP1610N2 |
12,355 | 0.82 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, uClamp® | Active | Zener | 1 | - | 15V (Max) | 17.5V | 40V | 40A (8/20µs) | - | No | Automotive | 220pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP0505A.TCTTVS DIODE 5VWM 12VC SC89-6 |
26,767 | 0.75 |
RFQ |
Datasheet |
SOT-563, SOT-666 | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 5 | - | 5V (Max) | 6V | 12V | 7A (8/20µs) | 100W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP0504T.TCTTVS DIODE 5VWM 12.5VC SLP1313P6T |
3,000 | 0.75 |
RFQ |
Datasheet |
6-XFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 4 | - | 5V (Max) | 6V | 12.5V | 2A (8/20µs) | 25W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
