| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

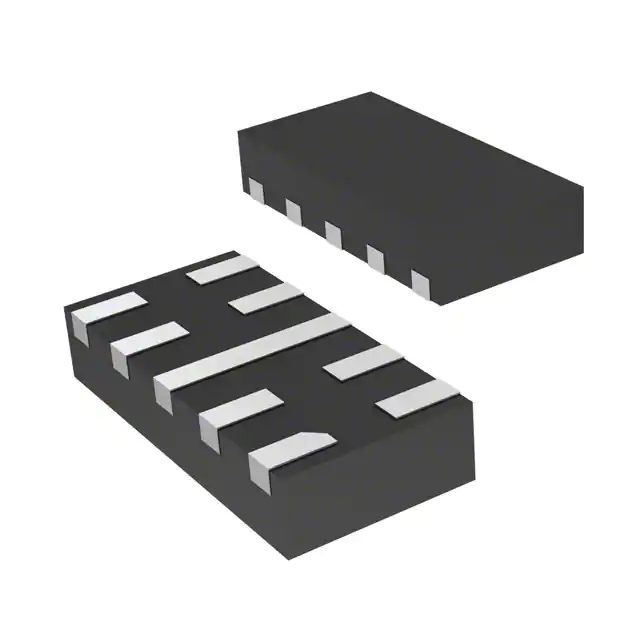

RCLAMP0544T.TCTTVS DIODE 5VWM 15VC SLP2010P8T |
54,678 | 1.42 |
RFQ |
Datasheet |
8-XFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6.5V | 15V | 5A (8/20µs) | 75W | Yes | HDMI | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMS05.TCTTVS DIODE 5VWM 14.5VC SOT23-6 |
21,320 | 1.45 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | SMS | Active | Zener | 4 | - | 5V (Max) | 6V | 14.5V | 24A (8/20µs) | 350W | No | General Purpose | 325pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

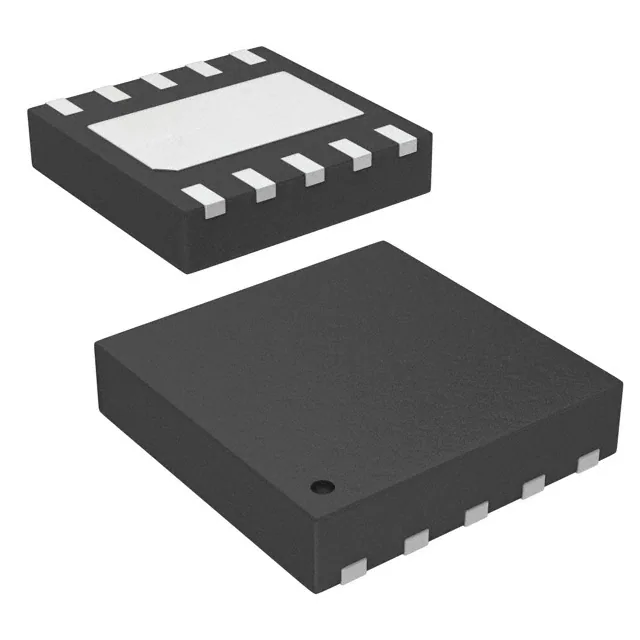

RCLAMP3304NATCTTVS DIODE 3.3VWM 18VC SLP2626P10 |
351,477 | 1.58 |
RFQ |
Datasheet |
10-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 18V | 25A (8/20µs) | 450W | Yes | General Purpose | 3.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SLVU2.8.TCTTVS DIODE 2.8VWM 12.5VC SOT23-3 |
24,927 | 1.59 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | SLV | Active | Zener | 1 | - | 2.8V (Max) | 3V | 12.5V | 24A (8/20µs) | 400W | No | Ethernet | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0544M.TBTTVS DIODE 5VWM 20VC 10MSOP |
32,905 | 1.45 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 20V | 5A (8/20µs) | 125W | Yes | General Purpose | 0.7pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0504M.TBTTVS DIODE 5VWM 25VC 10MSOP |
54,533 | 1.58 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 25V | 12A (8/20µs) | 300W | Yes | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP3304N.TCTTVS DIODE 3.3VWM 18VC SLP2626P10 |
44,053 | 1.71 |
RFQ |
Datasheet |
10-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Not For New Designs | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 18V | 25A (8/20µs) | 450W | Yes | General Purpose | 3.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3374N.TCTTVS DIODE 3.3VWM 18VC SLP3020N10 |
135,000 | 1.92 |
RFQ |
Datasheet |
10-UDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 18V | 25A (8/20µs) | 1000W (1kW) | Yes | Automotive, Ethernet | 3.6pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
SR12.TCTTVS DIODE 12VWM 31VC SOT143-4 |
4,295 | 1.92 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | RailClamp®, SR | Active | Steering (Rail to Rail) | 2 | - | 12V (Max) | 13.3V | 31V | 16A (8/20µs) | 500W | Yes | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0514M.TBTTVS DIODE 5VWM 20VC 10MSOP |
17,135 | 1.56 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 20V | 5A (8/20µs) | 125W | Yes | General Purpose | 1.4pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SR05.TCTTVS DIODE 5VWM 20VC SOT143-4 |
24,250 | 2.09 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | RailClamp®, SR | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 20V | 25A (8/20µs) | 500W | Yes | General Purpose | 6pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SR2.8.TCTTVS DIODE 2.8VWM 8.5VC SOT143-4 |
8,333 | 2.09 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | RailClamp®, SR | Active | Steering (Rail to Rail) | 2 | - | 2.8V (Max) | 3V | 8.5V | 14A (8/20µs) | 200W | Yes | General Purpose | 6pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP2504N.TCTTVS DIODE 2.5VWM 15VC SLP2626P10 |
7,389 | 2.21 |
RFQ |
Datasheet |
10-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 2.5V (Max) | 2.7V | 15V | 25A (8/20µs) | 450W | Yes | Ethernet | 3.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SR3.3.TCTTVS DIODE 3.3VWM 15VC SOT143-4 |
15,477 | 2.24 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | RailClamp®, SR | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | - | 15V | 10A (8/20µs) | 150W | Yes | General Purpose | - | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP2502L.TBTTVS DIODE 2.5VWM 20VC 8-SOIC |
10,749 | 1.92 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 2 | - | 2.5V (Max) | 2.7V | 20V | 40A (8/20µs) | 800W | Yes | Ethernet | 10pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
|
SRDA05-4.TBTTVS DIODE 5VWM 20VC 8-SO |
941 | 2.68 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | RailClamp®, SRDA | Not For New Designs | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 20V | 25A (8/20µs) | 500W | Yes | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
LCDA15C-1.TCTTVS DIODE 15VWM 33VC SOT143-4 |
5,946 | 2.73 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 15V (Max) | 16.7V | 33V | 15A (8/20µs) | 500W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
TCLAMP0602N.TCTTVS DIODE 6VWM 29VC SLP2626P10 |
14,681 | 2.81 |
RFQ |
Datasheet |
10-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | TransClamp™ | Active | Steering (Rail to Rail) | 2 | - | 6V (Max) | 6.8V | 29V | 95A (8/20µs) | 2500W (2.5kW) | Yes | Ethernet, Telecom | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SMDA12.TBTTVS DIODE 12VWM 24VC 8-SO |
7,260 | 2.77 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | SMDA | Active | Zener | 4 | - | 12V (Max) | 13.3V | 24V | 12A (8/20µs) | 300W | No | General Purpose | 150pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
TCLAMP3302N.TCTTVS DIODE 3.3VWM 25VC SLP2626P10 |
15,120 | 3.29 |
RFQ |
Datasheet |
10-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | TransClamp™ | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | - | 25V | 95A (8/20µs) | 2500W (2.5kW) | Yes | Ethernet, Telecom | 25pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
