| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCLAMP0521PATCTTVS DIODE 5VWM 25VC SLP1006P2 |
53,561 | 0.71 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 5V (Max) | 6V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0521P.TCTTVS DIODE 5VWM 25VC SLP1006P2 |
34,289 | 0.71 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Not For New Designs | Zener | - | 1 | 5V (Max) | 6V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP3311P.TCTTVS DIODE 3.3VWM 18VC SLP1006P2 |
26,382 | 0.71 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 18V | 5A (8/20µs) | 90W | No | General Purpose | 12pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|

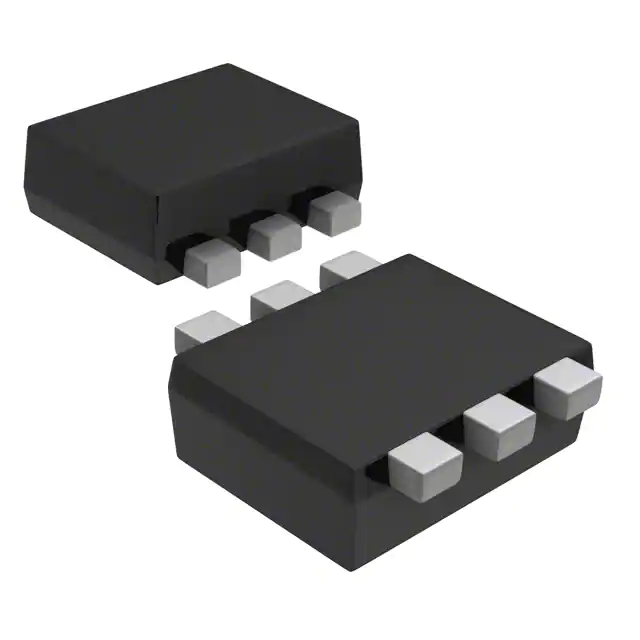

UCLAMP0504A.TCTTVS DIODE 5VWM 12VC SC89-6 |
5,731 | 0.71 |
RFQ |
Datasheet |
SOT-563, SOT-666 | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 4 | - | 5V (Max) | 6V | 12V | 7A (8/20µs) | 100W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP0571P.TNTTVS DIODE 5VWM 15VC SGP1610N2 |
19,452 | 0.82 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, uClamp® | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 80A | - | No | Automotive | 675pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP2511T.TCTTVS DIODE 2.5VWM 8VC SLP1006P2T |
232,225 | 0.75 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 1 | 2.5V (Max) | 2.7V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 6pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
|
UCLAMP1211P.TCTTVS DIODE 12VWM 28.5VC SLP1006P2 |
54,900 | 0.75 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 1 | 12V (Max) | 13.3V | 28.5V | 7A (8/20µs) | 200W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP3301D.TCTTVS DIODE 3.3VWM 9.5VC SOD323 |
22,676 | 0.75 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 1 | - | 3.3V (Max) | 3.5V | 9.5V | 10A (8/20µs) | 100W | No | General Purpose | 50pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP0511P.TCTTVS DIODE 5VWM 14VC SLP1006P2 |
16,849 | 0.75 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 1 | 5V (Max) | 6V | 14V | 12A (8/20µs) | 170W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMF05C.TCTTVS DIODE 5VWM 12.5VC SC70-6 |
167,666 | 0.79 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | SMF | Active | Zener | 5 | - | 5V (Max) | 6V | 12.5V | 8A (8/20µs) | 100W | No | General Purpose | 130pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0542T.TCTTVS DIODE 5VWM 15VC SLP1610P4T |
123,467 | 0.79 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6.5V | 15V | 5A (8/20µs) | 75W | Yes | Ethernet, HDMI | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0502BATCTTVS DIODE 5VWM 25VC SC75 |
132,923 | 0.82 |
RFQ |
Datasheet |
SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | 2 | - | 5V (Max) | 6V | 25V | 5A (8/20µs) | 125W | No | General Purpose | 1.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP3304A.TCTTVS DIODE 3.3VWM 8VC SC89-6 |
115,934 | 0.82 |
RFQ |
Datasheet |
SOT-563, SOT-666 | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 4 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 22pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0502A.TCTTVS DIODE 5VWM 18VC SC89 |
78,453 | 0.82 |
RFQ |
Datasheet |
SOT-563, SOT-666 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 18V | 3A (8/20µs) | 50W | Yes | Ethernet, HDMI | 0.9pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0502B.TCTTVS DIODE 5VWM 25VC SC75 |
77,710 | 0.82 |
RFQ |
Datasheet |
SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Not For New Designs | Zener | 2 | 1 | 5V (Max) | 6V | 25V | 5A (8/20µs) | 125W | No | HDMI, RF Antenna | 1.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP1521P.TCTTVS DIODE 15VWM 30VC SLP1006P2 |
40,213 | 0.82 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 15V (Max) | 16.7V | 30V | 4A (8/20µs) | 120W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SD24C.TCTTVS DIODE 24VWM 44VC SOD323 |
17,262 | 0.82 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 24V (Max) | 26.7V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 50pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0531T.TCTTVS DIODE 5VWM 20VC SLP1006P2T |
57,785 | 0.86 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 4A (8/20µs) | 80W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SD15C.TCTTVS DIODE 15VWM 29VC SOD323 |
64,690 | 0.90 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 15V (Max) | 16.7V | 29V | 12A (8/20µs) | 350W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SD12C.TCTTVS DIODE 12VWM 24VC SOD323 |
62,620 | 0.90 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12V (Max) | 13.3V | 24V | 15A (8/20µs) | 350W | No | General Purpose | 100pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
