| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD05C.TCTTVS DIODE 5VWM 14.5VC SOD323 |
46,931 | 0.90 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 14.5V | 24A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0502N.TCTTVS DIODE 6.5VWM 30VC SLP1210N6 |
16,473 | 0.90 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Not For New Designs | Steering (Rail to Rail) | 3 | - | 6.5V (Max) | 7V | 30V | 3A (8/20µs) | 100W | Yes | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0821P.TCTTVS DIODE 8VWM 25VC SLP1006P2 |
35,728 | 0.82 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 8V (Max) | 10V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0504S.TCTTVS DIODE 5VWM 25VC SOT23-6 |
134,122 | 0.86 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 25V | 6A (8/20µs) | 150W | Yes | Ethernet, USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|

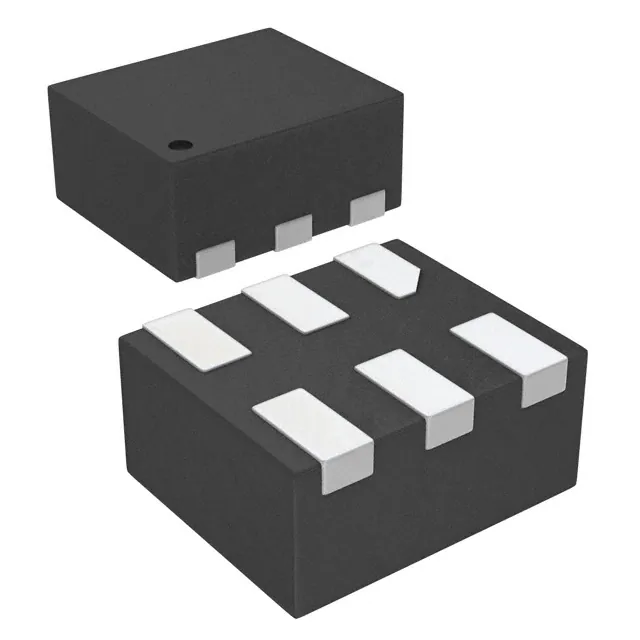

RCLAMP0582N.TCTTVS DIODE 6.5VWM 25VC SLP1210N6 |
85,718 | 0.86 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 6.5V (Max) | 7V | 25V | 5A (8/20µs) | 125W | Yes | Automotive | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0512TQTCTTVS DIODE 5VWM 8.5VC SGP1006N3T |
48,938 | 0.86 |
RFQ |
Datasheet |
3-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6.5V | 8.5V | 20A (1.2/50µs) | 170W | Yes | Automotive, Ethernet | 2pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
SDC15.TCTTVS DIODE 12.8VWM 21.2VC SOT23-3 |
46,188 | 0.86 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12.8V (Max) | 14.3V | 21.2V | 10A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP3306P.TCTTVS DIODE 3.3VWM 8VC SLP1616P6 |
22,965 | 0.86 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 6 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 20pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0854P.TCTTVS DIODE 5.5VWM 30VC SLP1616P6 |
15,889 | 0.86 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.5V | 30V | 3A (8/20µs) | 100W | Yes | USB OTG | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

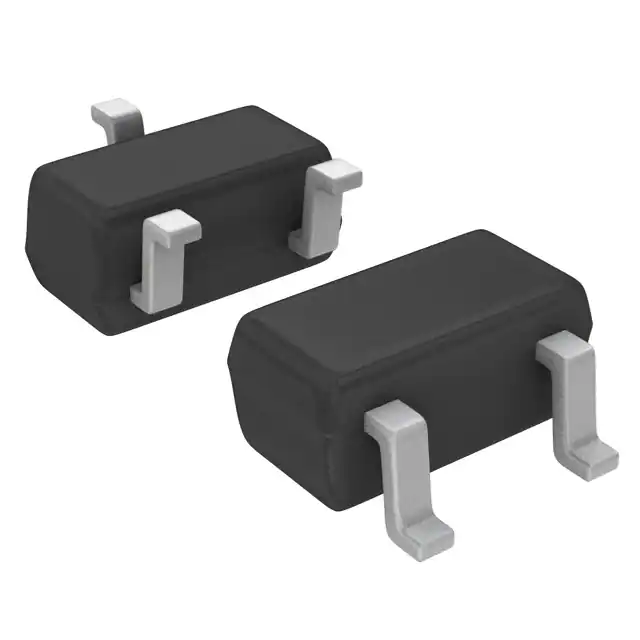

RCLAMP0582B.TCTTVS DIODE 5VWM 20VC SC75 |
11,522 | 0.86 |
RFQ |
Datasheet |
SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | 2 | - | 5V (Max) | 6V | 20V | 15A (8/20µs) | 300W | No | General Purpose | 1.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP3601P.TNTTVS DIODE 33VWM 60VC SLP1006P2 |
47,920 | 0.96 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, uClamp® | Active | Zener | 1 | - | 33V (Max) | 36V | 60V | 2A (1.2/50µs) | 125W | No | Automotive | 25pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
SL05.TCTTVS DIODE 5VWM 11VC SOT23-3 |
30,904 | 0.89 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | SL | Active | Zener | 1 | - | 5V (Max) | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP3304P.TCTTVS DIODE 3.3VWM 16VC SLP1616P6 |
29,249 | 0.89 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 16V | 5A (8/20µs) | 80W | Yes | Multimedia Card Interface | 0.8pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
|
SL24.TCTTVS DIODE 24VWM 55VC SOT23-3 |
5,250 | 0.89 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | SL | Active | Zener | 1 | - | 24V (Max) | 26.7V | 55V | 5A (8/20µs) | 300W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP1521PQTCTTVS DIODE 15VWM 35VC SLP1006P2 |
16,012 | 0.92 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Zener | - | 1 | 15V (Max) | 16.7V | 35V | 4A (8/20µs) | 120W | No | Automotive | 0.3pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP3311PQTCTTVS DIODE 3.3VWM 18VC SLP1006P2 |
4,300 | 0.96 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, uClamp® | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 18V | 5A (8/20µs) | 90W | No | Automotive, Ethernet | 12pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
|
RCLAMP2402B.TCTTVS DIODE 24VWM 55VC SC75 |
16,543 | 0.99 |
RFQ |
Datasheet |
SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | 2 | 1 | 24V (Max) | 26.7V | 55V | 4A (8/20µs) | 200W | No | HDMI | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0504P.TCTTVS DIODE 5VWM 18VC SLP1616P6 |
53,100 | 1.06 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Not For New Designs | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 18V | 6A (8/20µs) | 150W | Yes | Ethernet, Multimedia Card Interface, USB OTG | 1.9pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0504PATCTTVS DIODE 5VWM 18VC SLP1616P6 |
21,263 | 1.06 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 18V | 6A (8/20µs) | 150W | Yes | Ethernet, Multimedia Card Interface, USB OTG | 1.9pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0524PATCTTVS DIODE 5VWM 15VC SLP2510P8 |
74,193 | 1.09 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 5A (8/20µs) | 150W | Yes | HDMI | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
