| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRV05-4.TCTTVS DIODE 5VWM 17.5VC SOT23-6 |
46,437 | 1.09 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | RailClamp®, SR | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 17.5V | 12A (8/20µs) | 300W | Yes | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SRV05-4ATCTTVS DIODE 5VWM 17.5VC SOT23-6 |
46,067 | 1.09 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | RailClamp®, SR | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 17.5V | 12A (8/20µs) | 300W | Yes | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SDC36.TCTTVS DIODE 33VWM 45VC SOT23-3 |
43,695 | 1.09 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | 1 | 33V (Max) | 36V | 45V | 4A (1.2/50µs) | 200W | No | General Purpose | 45pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

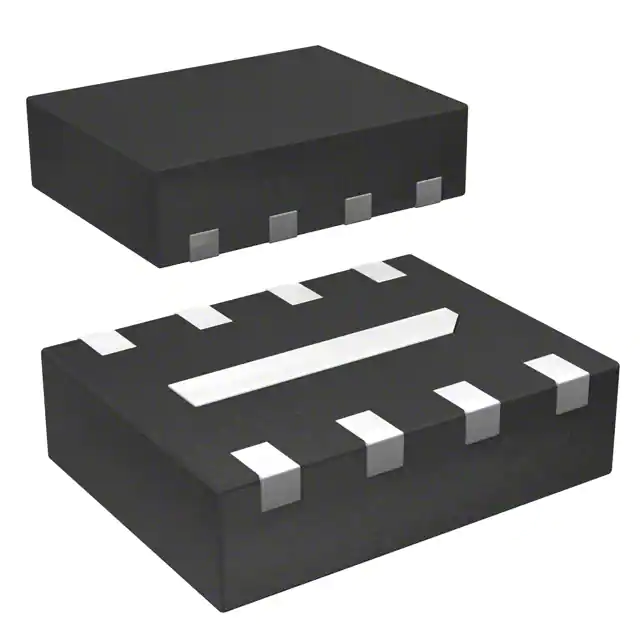

UCLAMP3324P.TCTTVS DIODE 3.3VWM 8VC SLP2116P8 |
38,520 | 1.09 |
RFQ |
Datasheet |
8-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 4 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0524P.TCTTVS DIODE 5VWM 15VC SLP2510P8 |
31,291 | 1.09 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Last Time Buy | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 5A (8/20µs) | 150W | Yes | HDMI | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP2431TQTCTTVS DIODE 24VWM 50VC SLP1006P2T |
26,684 | 1.09 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Zener | - | 1 | 24V (Max) | 26.7V | 50V | 2A (8/20µs) | 100W | No | Automotive | 0.35pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP1624T.TCTTVS DIODE 5VWM 15VC SLP1710P4T |
22,439 | 1.09 |
RFQ |
Datasheet |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 5V (Max) | 6.5V | 15V | 5A (8/20µs) | 75W | Yes | USB OTG | 0.7pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0531TQTCTTVS DIODE 5VWM 20VC SLP1006P2T |
20,034 | 1.09 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 4A (8/20µs) | 80W | No | Automotive | 0.85pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3346P.TNTTVS DIODE 3.3VWM 4.5VC SGP2708N7 |
32,365 | 1.22 |
RFQ |
Datasheet |
7-UDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 6 | - | 3.3V (Max) | 7V | 4.5V | 4.5A (8/20µs) | - | No | USB | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0504FATCTTVS DIODE 5VWM 25VC SC70-6 |
132,569 | 1.12 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 25V | 6A (8/20µs) | 150W | Yes | USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP0504F.TCTTVS DIODE 5VWM 23VC SC70-6 |
75,407 | 1.12 |
RFQ |
Datasheet |
6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Not For New Designs | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 23V | 6A (8/20µs) | 150W | Yes | Ethernet, HDMI, USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP3324T.TCTTVS DIODE 3.3V 10.5V SLP1710P4T |
50,693 | 1.12 |
RFQ |
Datasheet |
6-XFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.8V | 10.5V | 5A (8/20µs) | 75W | Yes | HDMI | 0.4pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3354S.TCTTVS DIODE 3.3VWM 16VC SOT23-5 |
50,732 | 1.12 |
RFQ |
Datasheet |
SC-74A, SOT-753 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 16V | 25A (8/20µs) | 400W | Yes | Ethernet | 3.8pF @ 1MHz | -55°C ~ 85°C (TA) | Surface Mount |
|
|
RCLAMP0554S.TCTTVS DIODE 5VWM 15VC SOT23-6 |
26,342 | 1.12 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 25A (8/20µs) | 375W | Yes | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3654PATCTTVS DIODE 5.5VWM 30VC SLP1616P6 |
21,352 | 1.12 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.5V | 30V | 3A (8/20µs) | 100W | Yes | USB OTG | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

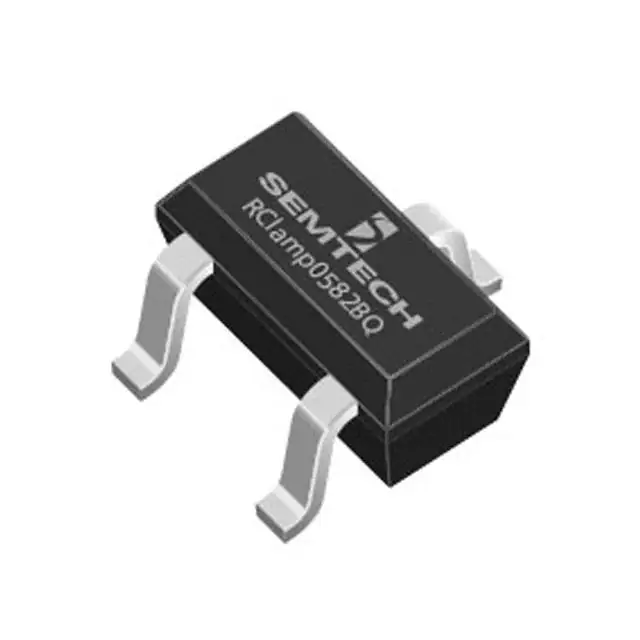

RCLAMP0582BQTCTTVS DIODE 5VWM 20VC SC75 |
53,129 | 1.19 |
RFQ |
Datasheet |
SC-75, SOT-416 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Zener | 2 | - | 5V (Max) | 6V | 20V | 15A (8/20µs) | 300W | No | Automotive | 1.2pF @ 1MHz | -40°C ~ 105°C (TJ) | Surface Mount |
|
SMF3.3.TCTTVS DIODE 3.3VWM 8VC SC70-5 |
144,704 | 1.25 |
RFQ |
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | SMF | Active | Zener | 4 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP3312T.TCTTVS DIODE 3.3VWM 11VC SLP2010P8T |
15,487 | 1.25 |
RFQ |
Datasheet |
8-XFDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 2 | 3.3V (Max) | 3.5V | 11V | 10A (8/20µs) | 100W | No | Ethernet | 4.5pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
LCDA24C-1.TCTTVS DIODE 24VWM 50VC SOT143-4 |
11,912 | 1.35 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 24V (Max) | 26.7V | 50V | 10A (8/20µs) | 500W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

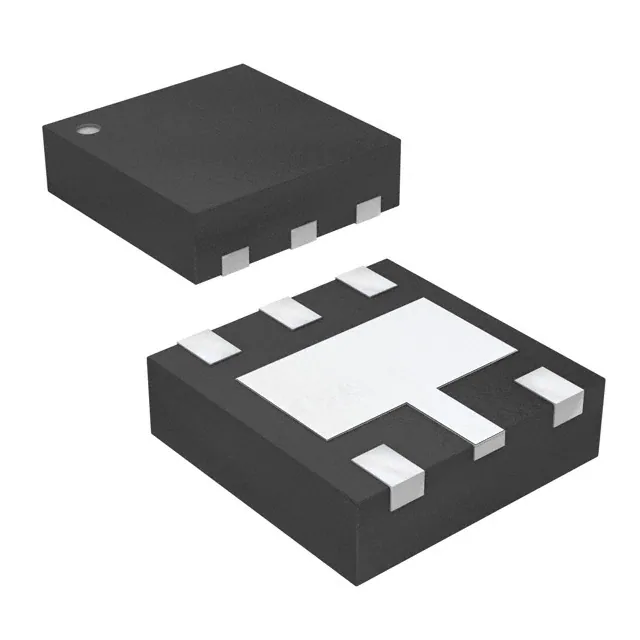

RCLAMP0504N.TCTTVS DIODE 5VWM 17.5VC SLP2020P6 |
22,066 | 1.39 |
RFQ |
Datasheet |
6-UDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 17.5V | 5A (8/20µs) | 300W | Yes | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
