| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCLAMP1871P.TNTTVS DIODE 18VWM 45VC SGP1610N2 |
39,973 | 0.82 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, uClamp® | Active | Zener | 1 | - | 18V (Max) | 20V | 45V | 35A (8/20µs) | - | No | Automotive | 225pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP0561P.TNTTVS DIODE 5VWM 15VC 2SLP1608P |
26,028 | 0.82 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | µClamp® | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 80A | - | No | General Purpose | 800pF @ 1MHz (Max) | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3324P.TNTTVS DIODE 3.3VWM 4.5VC SGP2510P8 |
21,963 | 0.90 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 8V (Typ) | 4.5V | 4.5A (8/20µs) | - | Yes | Automotive | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP0506P.TCTTVS DIODE 5VWM 11VC SLP1616P6 |
14,710 | 0.82 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 6 | - | 5V (Max) | 6V | 11V | 7A (8/20µs) | 100W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SD12.TCTTVS DIODE 12VWM 25VC SOD323 |
8,275 | 0.82 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 12V (Max) | 13.3V | 25V | 15A (8/20µs) | 350W | No | General Purpose | 150pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP2431T.TCTTVS DIODE 24VWM 50VC SLP1006P2T |
58,943 | 0.86 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 1 | 24V (Max) | 26.7V | 50V | 2A (8/20µs) | 100W | No | General Purpose | 0.35pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
RCLAMP0503N.TCTTVS DIODE 6.5VWM 30VC SLP1510N6 |
9,158 | 0.86 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 6.5V (Max) | 7V | 30V | 3A (8/20µs) | 100W | Yes | USB OTG | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
RCLAMP1654P.TCTTVS DIODE 5.5VWM 30VC SLP1616P6 |
6,850 | 0.89 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.5V | 30V | 3A (8/20µs) | 100W | Yes | USB OTG | 0.7pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP0508T.TCTTVS DIODE 5VWM 12.5VC SLP1713P8T |
15,683 | 0.90 |
RFQ |
Datasheet |
8-XFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | 8 | - | 5V (Max) | 6V | 12.5V | 2A (8/20µs) | 25W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

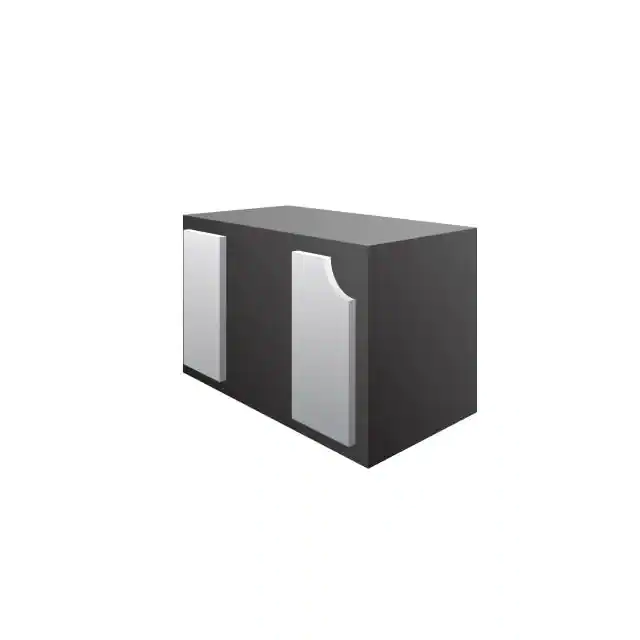

UCLAMP0511PQTCTTVS DIODE 5VWM 14VC SLP1006P2 |
36,344 | 0.82 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, uClamp® | Active | Zener | - | 1 | 5V (Max) | 6V | 14V | 12A (8/20µs) | 170W | No | Automotive | 75pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
SL15.TCTTVS DIODE 15VWM 30VC SOT23-3 |
5,568 | 0.89 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | SL | Active | Zener | 1 | - | 15V (Max) | 16.7V | 30V | 5A (8/20µs) | 300W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SR70.TCTTVS DIODE 70VWM 7VC SOT143-4 |
18,056 | 0.99 |
RFQ |
Datasheet |
TO-253-4, TO-253AA | Tape & Reel (TR),Cut Tape (CT) | RailClamp®, SR | Active | Steering (Rail to Rail) | 2 | - | 70V (Max) | 85V | 7V | 24A (8/20µs) | - | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP7528T.TNTTVS DIODE 5VWM 15VC SLP2611N9T |
21,717 | 1.25 |
RFQ |
Datasheet |
9-XFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 8 | - | 5V (Max) | 6.5V | 15V | 5A (8/20µs) | 75W | Yes | HDMI | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0534N.TCTTVS DIODE 5VWM 15VC SLP3020N10 |
8,095 | 1.39 |
RFQ |
Datasheet |
10-UDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 25A (8/20µs) | 500W | Yes | General Purpose | 3.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SMS12.TCTTVS DIODE 12VWM 23VC SOT23-6 |
8,625 | 1.45 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | SMS | Active | Zener | 4 | - | 12V (Max) | 13.3V | 23V | 15A (8/20µs) | 350W | No | General Purpose | 135pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SMS24.TCTTVS DIODE 24VWM 44VC SOT23-6 |
5,045 | 1.45 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | SMS | Active | Zener | 4 | - | 24V (Max) | 26.7V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SMS05C.TCTTVS DIODE 5VWM 14.5VC SOT23-6 |
10,699 | 1.52 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | SMS | Active | Zener | 5 | - | 5V (Max) | 6V | 14.5V | 24A (8/20µs) | 300W | No | General Purpose | 325pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SDC36C.TCTTVS DIODE 33VWM 47VC SOT23-3 |
11,866 | 1.62 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | 1 | 33V (Max) | 35V | 47V | 4A (1.2/50µs) | 225W | No | General Purpose | 100pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
SLVU2.8-8.TBTTVS DIODE 2.8VWM 17VC 8-SO |
1,275 | 4.98 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | SLV | Active | Zener | - | 4 | 2.8V (Max) | 3V | 17V | 30A (8/20µs) | 600W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
LCDA12C-8.TBTTVS DIODE 12VWM 26.6VC 16SOIC |
996 | 6.16 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 8 | 12V (Max) | 13.3V | 26.6V | 20A (8/20µs) | 500W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
