| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCLAMP0552T.TNTTVS DIODE 5VWM 20VC SLP1006N3T |
9,369 | 0.82 |
RFQ |
Datasheet |
3-XDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | - | 2 | 5V (Max) | 6.5V | 20V | 3A (8/20µs) | 60W | No | HDMI | 0.21pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP2271P.TNTTVS DIODE 22VWM 55VC SGP1610N2 |
6,078 | 0.82 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, uClamp® | Active | Zener | 1 | - | 22V (Max) | 25.5V | 55V | 25A (8/20µs) | - | No | Automotive | 165pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP3381P.TFTTVS DIODE 3.3VWM 11.5V SGP1006N2 |
8,412 | 0.86 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | uClamp® | Active | Zener | - | 1 | 3.3V (Max) | 4.5V | 11.5V | 25A (8/20µs) | 275W | No | General Purpose | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP0512TQTNTTVS DIODE 5VWM 8.5VC SGP1006N3T |
7,575 | 0.86 |
RFQ |
Datasheet |
3-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6.5V | 8.5V | 20A (1.2/50µs) | 170W | Yes | Automotive, Ethernet | 2pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3328P.TZTTVS DIODE 3.3VWM 10.5V SGP3810N9 |
6,924 | 0.92 |
RFQ |
Datasheet |
9-UDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 8 | - | 3.3V (Max) | 3.8V | 10.5V | 5A (8/20µs) | 75W | Yes | HDMI | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP3671P.TNTTVS DIODE 36VWM 80VC SGP1610N2 |
6,618 | 0.92 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, uClamp® | Active | Zener | 1 | - | 36V (Max) | 37V | 80V | 18A (8/20µs) | - | No | Automotive | 150pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
PCLAMP0511ZVTFTPOWERCLAMP, 1-LINE 5V SLP1006P2X |
14,221 | 0.99 |
RFQ |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V | - | - | 115A (8/20µs) | - | No | USB | - | - | Surface Mount | |
|

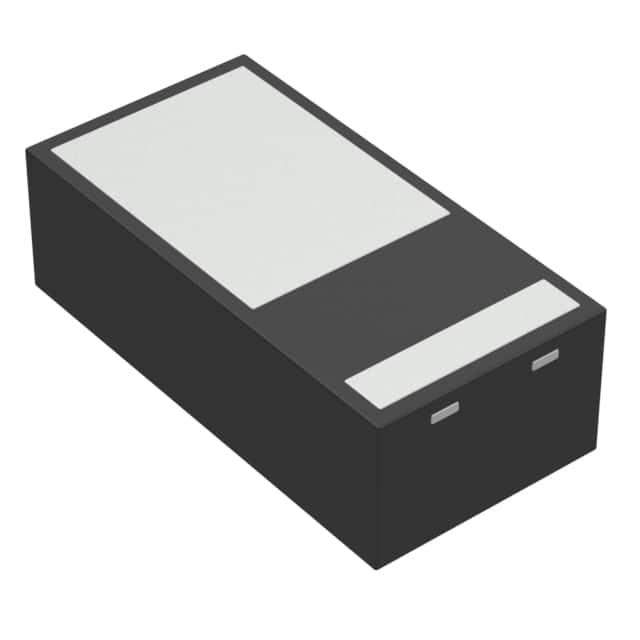

UCLAMP4061P.TNTTVS DIODE 40VWM 80VC SLP1608P2 |
5,603 | 1.06 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR),Cut Tape (CT) | µClamp® | Active | Zener | 1 | - | 40V | 45V | 80V | 12A (8/20µs) | 1600W (1.6kW) | No | General Purpose | 125pF @ 1MHz (Max) | -40°C ~ 125°C (TJ) | Surface Mount |
|

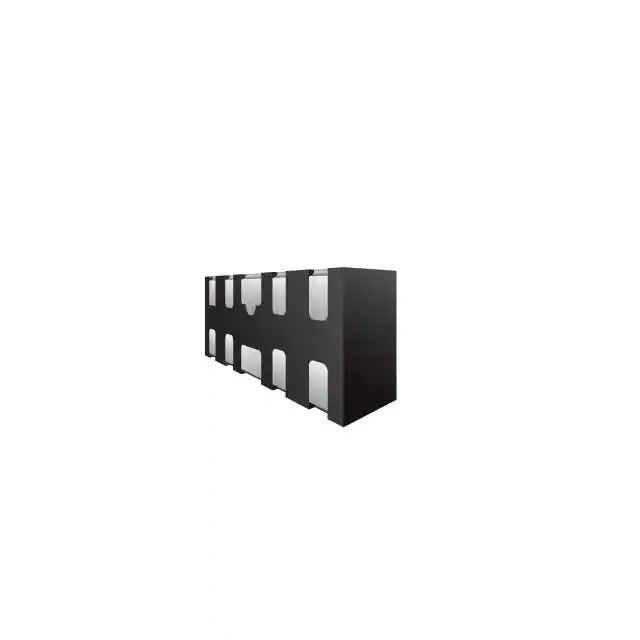

RCLAMP0594P.TAT4-LINES 5V 0.3PF ESD SMF2510P8 ( |
4,800 | 1.09 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 6A (8/20µs) | - | No | HDMI | 0.8pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount |
|
RCLAMP0564P.TNTTVS DIODE 5VWM 4VC SGP2010N5 |
1,283 | 1.12 |
RFQ |
Datasheet |
5-UFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6.5V | 4V | 3A (8/20µs) | - | Yes | HDMI | 0.17pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
RCLAMP0524S.TCTTVS DIODE 5VWM 26VC SOT23-6 |
1,403 | 1.16 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Zener | 4 | - | 5V (Max) | 6V | 26V | 6A (8/20µs) | 150W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP1255P.TGTTVS DIODE 4VWM 12.5VC SLP2018P6 |
7,604 | 1.22 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 4V (Max) | 4.5V | 12.5V | 3A (8/20µs) | 40W | Yes | USB OTG | 0.35pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3346PQTNTTVS DIODE 3.3VWM 4.5VC SGP2708N7 |
2,924 | 1.51 |
RFQ |
Datasheet |
7-UDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, RailClamp® | Active | Steering (Rail to Rail) | 6 | - | 3.3V (Max) | 7V | 4.5V | 4.5A (8/20µs) | - | No | Automotive, USB | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
SMS12C.TCTTVS DIODE 12VWM 23VC SOT23-6 |
2,713 | 1.52 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | SMS | Active | Zener | 5 | - | 12V (Max) | 13.3V | 23V | 15A (8/20µs) | 300W | No | General Purpose | 135pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SMS24C.TCTTVS DIODE 24VWM 44VC SOT23-6 |
1,280 | 1.52 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | SMS | Active | Zener | 5 | - | 24V (Max) | 26.7V | 44V | 8A (8/20µs) | 300W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

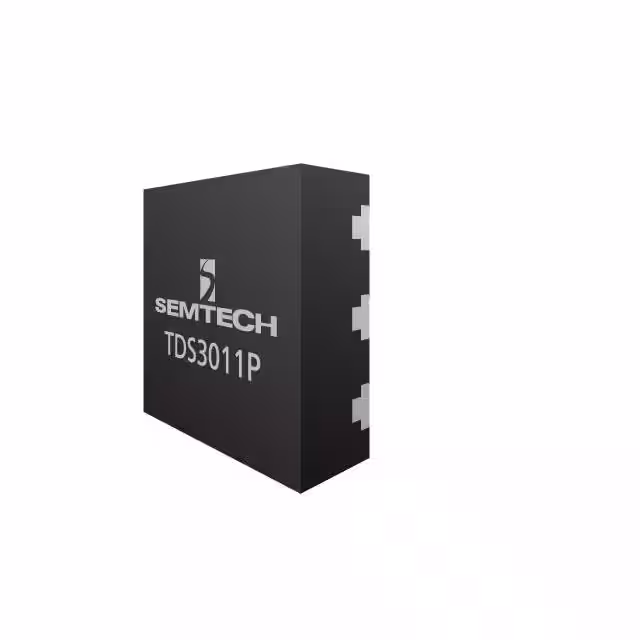

TDS3011P.CSURGESWITCH, 1-LINE 30V EOS PROT |
2,995 | 1.54 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 30V (Max) | 34V | 40V | 35A (8/20µs) | 1400W (1.4kW) | No | USB | 170pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TDS4001P.CSURGESWITCH, 1-LINE 40V EOS PROT |
2,962 | 1.54 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 40V (Max) | 46V | 53V | 24A (8/20µs) | 1120W (1.12kW) | No | General Purpose | 162pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TDS2211P.CSURGESWITCH, 1-LINE 22V EOS PROT |
2,775 | 1.54 |
RFQ |
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 22V (Max) | 25V | 28V | 40A (8/20µs) | 1120W (1.12kW) | No | USB | 175pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TDS5801P.CSURGESWITCH, 1-LINE 58V EOS PROT |
2,845 | 1.57 |
RFQ |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 58V | - | - | 20A (8/20µs) | - | No | General Purpose | - | - | Surface Mount | |
|

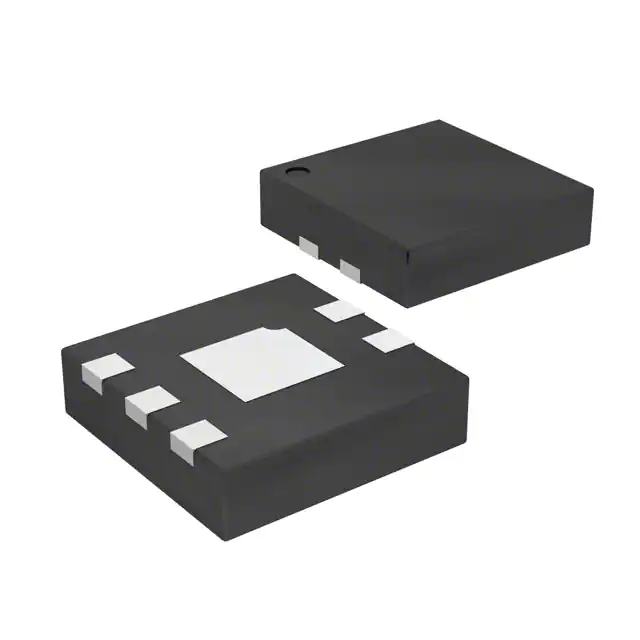

TCLAMP1202P.TGTTVS DIODE 12VWM 25VC SLP2020P5 |
4,999 | 1.65 |
RFQ |
Datasheet |
5-UDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | TransClamp™ | Active | Steering (Rail to Rail) | 2 | - | 12V (Max) | 13.3V | 25V | 12A | 300W | Yes | General Purpose | 12pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
