| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STB18NM60NDMOSFET N-CH 600V 13A D2PAK |
681 | 5.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 290mOhm @ 6.5A, 10V | 5V @ 250µA | 34 nC @ 10 V | ±25V | 1030 pF @ 50 V | - | 110W (Tc) | 150°C (TJ) | Surface Mount |
|
STB19NM65NMOSFET N-CH 650V 15.5A D2PAK |
776 | 5.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15.5A (Tc) | 10V | 270mOhm @ 7.75A, 10V | 4V @ 250µA | 55 nC @ 10 V | ±25V | 1900 pF @ 50 V | - | 150W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STB33N60DM6MOSFET N-CH 600V 25A D2PAK |
591 | 5.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 128mOhm @ 12.5A, 10V | 4.75V @ 250µA | 35 nC @ 10 V | ±25V | 1500 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STP11NM60FDFPMOSFET N-CH 600V 11A TO220FP |
154 | 5.93 |
RFQ |
Datasheet |
Tube | FDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 450mOhm @ 5.5A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 900 pF @ 25 V | - | 35W (Tc) | - | Through Hole |
|

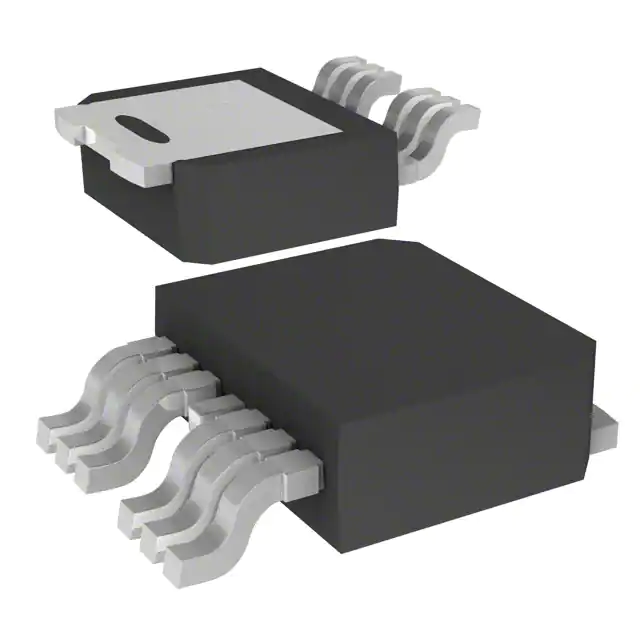

STH250N6F3-6MOSFET N-CH 60V 250A H2PAK |
1,000 | 6.05 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
STF21NM60NDMOSFET N-CH 600V 17A TO220FP |
696 | 6.07 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 220mOhm @ 8.5A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±25V | 1800 pF @ 50 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
STL33N60M2MOSFET N-CH 600V 22A PWRFLAT HV |
646 | 5.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 135mOhm @ 10.75A, 10V | 4V @ 250µA | 47 nC @ 10 V | ±25V | 1700 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | Surface Mount |
|
STW24NM60NMOSFET N-CH 600V 17A TO247 |
1,144 | 6.10 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 190mOhm @ 8A, 10V | 4V @ 250µA | 46 nC @ 10 V | ±30V | 1400 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STB21NM60NDMOSFET N-CH 600V 17A D2PAK |
440 | 6.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 220mOhm @ 8.5A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±25V | 1800 pF @ 50 V | - | 140W (Tc) | 150°C (TJ) | Surface Mount |
|
STI30N65M5MOSFET N-CH 650V 22A I2PAK |
993 | 6.44 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 139mOhm @ 11A, 10V | 5V @ 250µA | 64 nC @ 10 V | ±25V | 2880 pF @ 100 V | - | 140W (Tc) | 150°C (TJ) | Through Hole |
|
|
STI32N65M5MOSFET N-CH 650V 24A I2PAK |
1,005 | 6.54 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 119mOhm @ 12A, 10V | 5V @ 250µA | 72 nC @ 10 V | ±25V | 3320 pF @ 100 V | - | 150W (Tc) | 150°C (TJ) | Through Hole |
|
STP32N65M5MOSFET N-CH 650V 24A TO220AB |
370 | 6.55 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 119mOhm @ 12A, 10V | 5V @ 250µA | 72 nC @ 10 V | ±25V | 3320 pF @ 100 V | - | 150W (Tc) | 150°C (TJ) | Through Hole |
|
|
STW15NM60NDMOSFET N-CH 600V 14A TO247-3 |
372 | 6.57 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 299mOhm @ 7A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±25V | 1250 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STO36N60M6MOSFET N-CH 600V 30A TOLL |
964 | 6.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 99mOhm @ 15A, 10V | 4.75V @ 250µA | 44.3 nC @ 10 V | ±25V | 1960 pF @ 100 V | - | 230W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STFI6N65K3MOSFET N-CH 650V 5.4A I2PAKFP |
500 | 6.64 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 5.4A (Tc) | 10V | 1.3Ohm @ 2.7A, 10V | 4.5V @ 50µA | 33 nC @ 10 V | ±30V | 880 pF @ 50 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP34N65M5MOSFET N-CH 650V 28A TO220 |
335 | 6.77 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 28A (Tc) | 10V | 110mOhm @ 14A, 10V | 5V @ 250µA | 62.5 nC @ 10 V | ±25V | 2700 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
|
|
STL36N60M6MOSFET N-CH 600V 25A PWRFLAT HV |
130 | 9.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 110mOhm @ 12.5A, 10V | 4.75V @ 250µA | 44.3 nC @ 10 V | ±25V | 1960 pF @ 100 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STH180N10F3-2MOSFET N-CH 100V 180A H2PAK-2 |
2,162 | 7.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ III | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 4.5mOhm @ 60A, 10V | 4V @ 250µA | 114.6 nC @ 10 V | ±20V | 6665 pF @ 25 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STFI24N60M2MOSFET N CH 600V 18A TO281 |
481 | 7.02 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 190mOhm @ 9A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±25V | 1060 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP28NM60NDMOSFET N-CH 600V 23A TO220 |
189 | 7.02 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 150mOhm @ 11.5A, 10V | 5V @ 250µA | 62.5 nC @ 10 V | ±25V | 2090 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
