| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

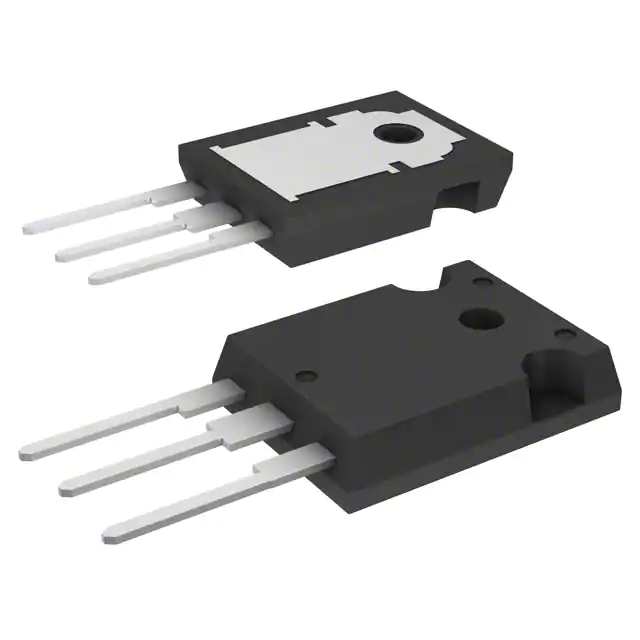

STW35N60DM2MOSFET N-CH 600V 28A TO247 |
260 | 7.07 |
RFQ |
Datasheet |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 28A (Tc) | 10V | 110mOhm @ 14A, 10V | 5V @ 250µA | 54 nC @ 10 V | ±25V | 2400 pF @ 100 V | - | 210W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STH360N4F6-2MOSFET N-CH 40V 180A H2PAK-2 |
919 | 7.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 180A (Tc) | 10V | 1.25mOhm @ 60A, 10V | 4.5V @ 250µA | 340 nC @ 10 V | ±20V | 17930 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STP36N55M5MOSFET N-CH 550V 33A TO220 |
245 | 7.23 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 550 V | 33A (Tc) | 10V | 80mOhm @ 16.5A, 10V | 5V @ 250µA | 62 nC @ 10 V | ±25V | 2670 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
|
STF16N90K5MOSFET N-CH 900V 15A TO220FP |
125 | 7.23 |
RFQ |
Datasheet |
Tube | MDmesh™ DK5 | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 15A (Tc) | 10V | 330mOhm @ 7.5A, 10V | 5V @ 100µA | 29.7 nC @ 10 V | ±30V | 1027 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STP36N60M6MOSFET N-CHANNEL 600V 30A TO220 |
162 | 7.25 |
RFQ |
Datasheet |
Tube | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 99mOhm @ 15A, 10V | 4.75V @ 250µA | 44.3 nC @ 10 V | ±25V | 1960 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STW19NM50NMOSFET N-CH 500V 14A TO247-3 |
377 | 7.26 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 250mOhm @ 7A, 10V | 4V @ 250µA | 34 nC @ 10 V | ±25V | 1000 pF @ 50 V | - | 110W (Tc) | 150°C (TJ) | Through Hole |
|
STW28NM60NDMOSFET N-CH 600V 23A TO247 |
127 | 7.28 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 150mOhm @ 11.5A, 10V | 5V @ 250µA | 62.5 nC @ 10 V | ±25V | 2090 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
|
STL21N65M5MOSFET N-CH 650V 17A PWRFLAT HV |
1,813 | 7.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 17A (Tc) | 10V | 179mOhm @ 8.5A, 10V | 5V @ 250µA | 50 nC @ 10 V | ±25V | 1950 pF @ 100 V | - | 3W (Ta), 125W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STH400N4F6-2MOSFET N-CH 40V 180A H2PAK-2 |
943 | 7.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 180A (Tc) | 10V | 1.15mOhm @ 60A, 10V | 4.5V @ 250µA | 404 nC @ 10 V | ±20V | 20500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STFI40N60M2MOSFET N-CH 600V 34A I2PAKFP |
172 | 7.77 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 88mOhm @ 17A, 10V | 4V @ 250µA | 57 nC @ 10 V | ±25V | 2500 pF @ 100 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STL47N60M6MOSFET N-CH 600V 31A PWRFLAT HV |
1,259 | 7.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 31A (Tc) | 10V | 80mOhm @ 15.5A, 10V | 4.75V @ 250µA | 57 nC @ 10 V | ±25V | - | - | 189W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STW48N60M2MOSFET N-CH 600V 42A TO247 |
456 | 8.02 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 42A (Tc) | 10V | 70mOhm @ 21A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±25V | 3060 pF @ 100 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP32NM50NMOSFET N CH 500V 22A TO-220 |
120 | 8.28 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 130mOhm @ 11A, 10V | 4V @ 250µA | 62.5 nC @ 10 V | ±25V | 1973 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
|
STO67N60DM6MOSFET N-CH 600V 33A TOLL |
1,165 | 8.34 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ DM6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 33A (Tc) | 10V | 59mOhm @ 23.75A, 10V | 4.75V @ 250µA | 72.5 nC @ 10 V | ±25V | 3400 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
STW30NM50NMOSFET N-CH 500V 27A TO247-3 |
222 | 8.62 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 27A (Tc) | 10V | 115mOhm @ 13.5A, 10V | 4V @ 250µA | 94 nC @ 10 V | ±25V | 2740 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
|
|
STF28NM60NDMOSFET N-CH 600V 23A TO220FP |
951 | 8.86 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 150mOhm @ 11.5A, 10V | 5V @ 250µA | 62.5 nC @ 10 V | ±25V | 2090 pF @ 100 V | - | 35W (Tc) | 150°C (TJ) | Through Hole |
|
STB28NM60NDMOSFET N-CH 600V 23A D2PAK |
449 | 8.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FDmesh™ II | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 150mOhm @ 11.5A, 10V | 5V @ 250µA | 62.5 nC @ 10 V | ±25V | 2090 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STWA45N65M5MOSFET N-CH 650V 35A TO247 |
349 | 9.30 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Tc) | 10V | 78mOhm @ 17.5A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±25V | 3470 pF @ 100 V | - | 210W (Tc) | 150°C (TJ) | Through Hole |
|
STWA48N60M2MOSFET N-CH 600V 42A TO247 |
207 | 9.54 |
RFQ |
Datasheet |
Tube | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 42A (Tc) | 10V | 70mOhm @ 21A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±25V | 3060 pF @ 100 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STW32N65M5MOSFET N-CH 650V 24A TO247-3 |
506 | 9.62 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 119mOhm @ 12A, 10V | 5V @ 250µA | 72 nC @ 10 V | ±25V | 3320 pF @ 100 V | - | 150W (Tc) | 150°C (TJ) | Through Hole |
