| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STF34NM60NMOSFET N-CH 600V 31.5A TO220FP |
270 | 4.98 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 31.5A (Tc) | 10V | 105mOhm @ 14.5A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±25V | 2722 pF @ 100 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STF32NM50NMOSFET N CH 500V 22A TO-220FP |
177 | 4.98 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 130mOhm @ 11A, 10V | 4V @ 250µA | 62.5 nC @ 10 V | ±25V | 1973 pF @ 50 V | - | 35W (Tc) | 150°C (TJ) | Through Hole |
|
STI400N4F6MOSFET N-CH 40V 120A I2PAK |
1,000 | 5.04 |
RFQ |
Datasheet |
Tube | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 1.7mOhm @ 60A, 10V | 4.5V @ 250µA | 377 nC @ 10 V | ±20V | 20000 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STFI28N60M2MOSFET N-CH 600V 22A I2PAKFP |
500 | 5.11 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 150mOhm @ 11A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±25V | 1440 pF @ 100 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
STP18NM60NDMOSFET N-CH 600V 13A TO220 |
174 | 5.19 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 290mOhm @ 6.5A, 10V | 5V @ 250µA | 34 nC @ 10 V | ±25V | 1030 pF @ 50 V | - | 110W (Tc) | 150°C (TJ) | Through Hole |
|
STH320N4F6-2MOSFET N-CH 40V 200A H2PAK |
263 | 5.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 200A (Tc) | 10V | 1.3mOhm @ 80A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 13800 pF @ 15 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STP17N62K3MOSFET N-CH 620V 15.5A TO220AB |
968 | 5.43 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 620 V | 15.5A (Tc) | 10V | 380mOhm @ 7.5A, 10V | 4.5V @ 100µA | 94 nC @ 10 V | ±30V | 2500 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
|
|
STI24NM60NMOSFET N CH 600V 17A I2PAK |
987 | 5.47 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 190mOhm @ 8A, 10V | 4V @ 250µA | 46 nC @ 10 V | ±30V | 1400 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STFI34N65M5MOSFET N CH 650V 28A I2PAKFP |
1,492 | 5.49 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 28A (Tc) | 10V | 110mOhm @ 14A, 10V | 5V @ 250µA | 62.5 nC @ 10 V | ±25V | 2700 pF @ 100 V | - | 35W (Tc) | 150°C (TJ) | Through Hole |
|
STL18N55M5MOSFET N-CH 550V 2.4A POWERFLAT |
869 | 5.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 550 V | 2.4A (Ta), 13A (Tc) | 10V | 270mOhm @ 6A, 10V | 5V @ 250µA | 31 nC @ 10 V | ±25V | 1352 pF @ 100 V | - | 3W (Ta), 90W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STI34N65M5MOSFET N-CH 650V 28A I2PAKFP |
991 | 5.51 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 28A (Tc) | 10V | 110mOhm @ 14A, 10V | 5V @ 250µA | 62.5 nC @ 10 V | ±25V | 2700 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STH250N55F3-6MOSFET N-CH 55V 180A H2PAK |
980 | 5.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 180A (Tc) | 10V | 2.6mOhm @ 60A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STB200N6F3MOSFET N-CH 60V 120A D2PAK |
292 | 5.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.6mOhm @ 60A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STL33N65M2MOSFET N-CH 650V 20A PWRFLAT HV |
3,373 | 5.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 154mOhm @ 10A, 10V | 4V @ 250µA | 41.5 nC @ 10 V | ±25V | 1790 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

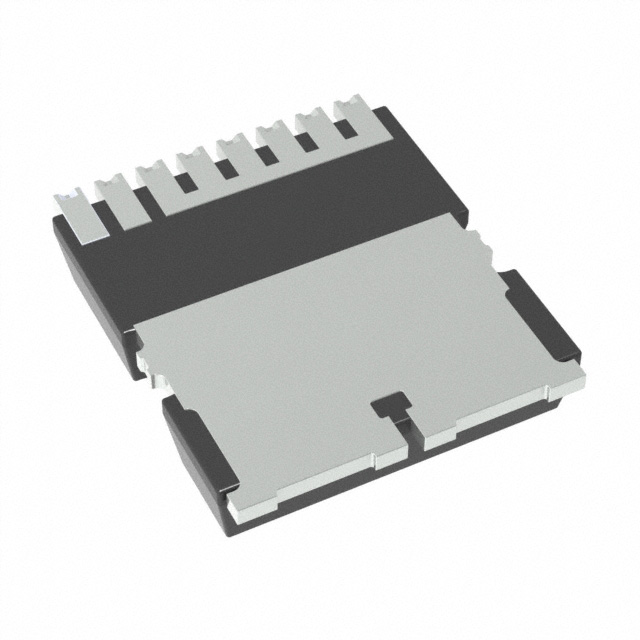

STO33N60M6MOSFET N-CH 600V 25A TOLL |
140 | 5.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 125mOhm @ 12.5A, 10V | 4.75V @ 250µA | 33.4 nC @ 10 V | ±25V | 1515 pF @ 100 V | - | 230W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STI260N6F6MOSFET N-CH 75V 120A I2PAK |
902 | 5.56 |
RFQ |
Datasheet |
Tube | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 3mOhm @ 60A, 10V | 4V @ 250µA | 183 nC @ 10 V | ±20V | 11400 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STB20NM60DMOSFET N-CH 600V 20A D2PAK |
367 | 5.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 290mOhm @ 10A, 10V | 5V @ 250µA | 52 nC @ 10 V | ±30V | 1300 pF @ 25 V | - | 192W (Tc) | -65°C ~ 150°C (TJ) | Surface Mount |
|
STW18NM60NDMOSFET N-CH 600V 13A TO247 |
254 | 5.56 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 290mOhm @ 6.5A, 10V | 5V @ 250µA | 34 nC @ 10 V | ±25V | 1030 pF @ 50 V | - | 110W (Tc) | 150°C (TJ) | Through Hole |
|
|
STF17N62K3MOSFET N-CH 620V 15.5A TO220FP |
727 | 5.68 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 620 V | 15.5A (Tc) | 10V | 340mOhm @ 7.5A, 10V | 4.5V @ 100µA | 105 nC @ 10 V | ±30V | 3100 pF @ 50 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
|
STFI13N95K3MOSFET N CH 950V 10A I2PAKFP |
290 | 5.70 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 950 V | 10A (Tc) | 10V | 850mOhm @ 5A, 10V | 5V @ 100µA | 51 nC @ 10 V | ±30V | 1620 pF @ 100 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
