| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STL18NM60NMOSFET N-CH 600V 6A POWERFLAT |
2,686 | 3.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.1A (Ta), 12A (Tc) | 10V | 310mOhm @ 6A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±30V | 1000 pF @ 50 V | - | 3W (Ta), 110W (Tc) | 150°C (TJ) | Surface Mount |
|
STFI31N65M5MOSFET N CH 650V 22A I2PAKFP |
1,479 | 3.98 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 148mOhm @ 11A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±25V | 1865 pF @ 100 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
|
STFI130N10F3MOSFET N-CH 100V 46A I2PAKFP |
1,500 | 4.64 |
RFQ |
Datasheet |
Tube | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 46A (Tc) | 10V | 9.6mOhm @ 23A, 10V | 4V @ 250µA | 57 nC @ 10 V | ±20V | 3305 pF @ 25 V | - | 35W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STL80N75F6MOSFET N-CH 75V 80A POWERFLAT |
905 | 4.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 6.3mOhm @ 9A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 7120 pF @ 25 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STFI6N80K5MOSFET N-CH 800V 4.5A I2PAKFP |
1,488 | 2.26 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.5A (Tc) | 10V | 1.6Ohm @ 2A, 10V | 5V @ 100µA | 13 nC @ 10 V | 30V | 270 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STP5NK60ZMOSFET N-CH 600V 5A TO220AB |
1,103 | 2.27 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.6Ohm @ 2.5A, 10V | 4.5V @ 50µA | 34 nC @ 10 V | ±30V | 690 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STFI10NK60ZMOSFET N-CH 600V 10A I2PAKFP |
1,426 | 2.42 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 750mOhm @ 4.5A, 10V | 4.5V @ 250µA | 70 nC @ 10 V | ±30V | 1370 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STFI8N80K5MOSFET N-CH 800V 6A I2PAKFP |
1,490 | 2.47 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 950mOhm @ 3A, 10V | 5V @ 100µA | 16.5 nC @ 10 V | ±30V | 450 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STFI15NM65NMOSFET N-CH 650V 12A I2PAKFP |
347 | 2.51 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 33.3 nC @ 10 V | ±25V | 983 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STU7N80K5MOSFET N-CH 800V 6A IPAK |
2,719 | 2.53 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 1.2Ohm @ 3A, 10V | 5V @ 100µA | 13.4 nC @ 10 V | ±30V | 360 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STL120N2VH5MOSFET N-CH 20V 120A POWERFLAT |
2,606 | 2.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 120A (Tc) | 2.5V, 4.5V | 3mOhm @ 14A, 4.5V | 700mV @ 250µA (Min) | 29 nC @ 2.5 V | ±8V | 4660 pF @ 15 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STFI15N65M5MOSFET N CH 650V 11A I2PAKFP |
1,396 | 2.57 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 340mOhm @ 5.5A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±25V | 816 pF @ 100 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
STL19N65M5MOSFET N-CH 650V 12.5A POWERFLAT |
2,408 | 2.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 2.3A (Ta), 12.5A (Tc) | 10V | 240mOhm @ 7.5A, 10V | 5V @ 250µA | 31 nC @ 10 V | ±25V | 1240 pF @ 100 V | - | 2.8W (Ta), 90W (Tc) | 150°C (TJ) | Surface Mount |
|
STB11N52K3MOSFET N-CH 525V 10A D2PAK |
943 | 2.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 525 V | 10A (Tc) | 10V | 510mOhm @ 5A, 10V | 4.5V @ 50µA | 51 nC @ 10 V | ±30V | 1400 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STP11N52K3MOSFET N-CH 525V 10A TO220 |
581 | 2.78 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 525 V | 10A (Tc) | 10V | 510mOhm @ 5A, 10V | 4.5V @ 50µA | 51 nC @ 10 V | ±30V | 1400 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

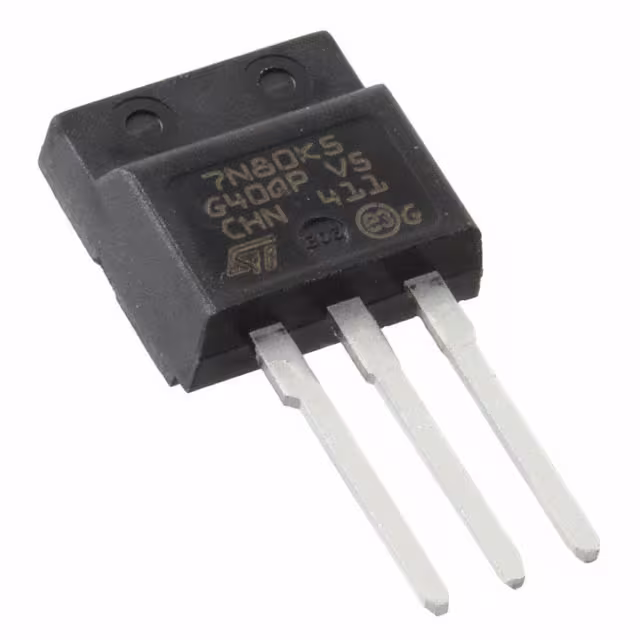

STFI7N80K5MOSFET N-CH 800V 6A I2PAKFP |
1,199 | 2.84 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 1.2Ohm @ 3A, 10V | 5V @ 100µA | 13.4 nC @ 10 V | ±30V | 360 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STFI10N65K3MOSFET N-CH 650V 10A I2PAKFP |
1,499 | 2.86 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 1Ohm @ 3.6A, 10V | 4.5V @ 100µA | 42 nC @ 10 V | ±30V | 1180 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STD5NM60-1MOSFET N-CH 600V 5A IPAK |
2,387 | 2.89 |
RFQ |
Datasheet |
Tube | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1Ohm @ 2.5A, 10V | 5V @ 250µA | 18 nC @ 10 V | ±30V | 400 pF @ 25 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STB80NF55L-08-1MOSFET N-CH 55V 80A I2PAK |
2,343 | 2.92 |
RFQ |
Datasheet |
Tube | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 5V, 10V | 8mOhm @ 40A, 10V | 2.5V @ 250µA | 100 nC @ 4.5 V | ±16V | 4350 pF @ 25 V | - | 300W (Tc) | 175°C (TJ) | Through Hole |
|
|
STFI13NK60ZMOSFET N-CH 600V 13A I2PAKFP |
1,380 | 2.97 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 550mOhm @ 4.5A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2030 pF @ 25 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
