| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

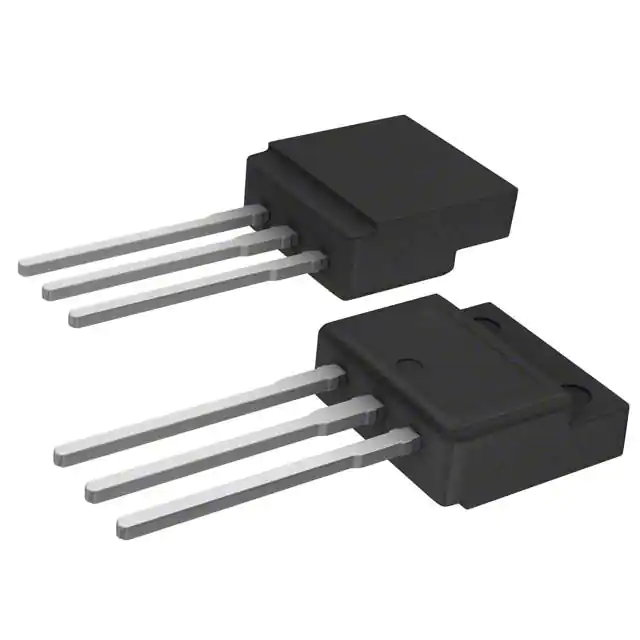

STFI4N62K3MOSFET N CH 620V 3.8A I2PAKFP |
1,414 | 1.25 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 620 V | 3.8A (Tc) | 10V | 2Ohm @ 1.9A, 10V | 4.5V @ 50µA | 22 nC @ 10 V | ±30V | 550 pF @ 50 V | - | 25W (Tc) | 150°C (TJ) | Through Hole |
|

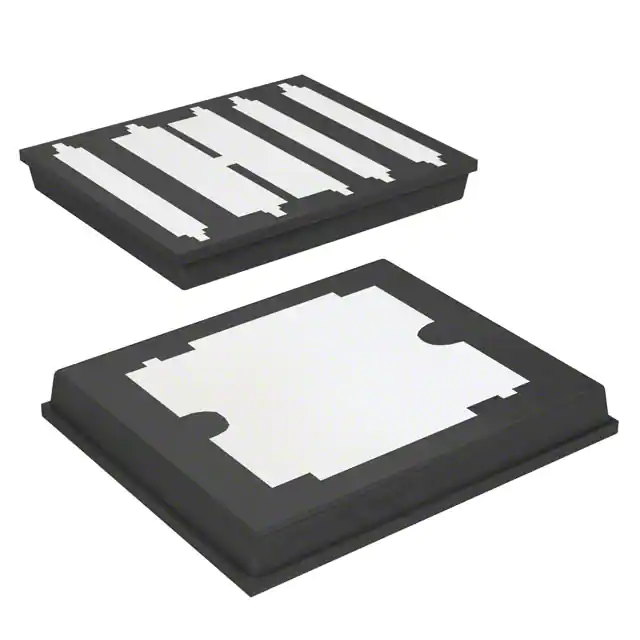

STK820MOSFET N-CH 25V 21A POLARPAK |
8,263 | 2.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 21A (Ta) | 4.5V, 10V | 7.3mOhm @ 10.5A, 10V | 2.5V @ 250µA | 9.5 nC @ 4.5 V | ±16V | 1425 pF @ 25 V | - | 5.2W (Ta) | 150°C (TJ) | Surface Mount |
|
STL12N3LLH5MOSFET N-CH 30V 12A POWERFLAT |
2,668 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Tc) | 4.5V, 10V | 9mOhm @ 6A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±22V | 1500 pF @ 25 V | - | 2W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STU4N52K3MOSFET N-CH 525V 2.5A IPAK |
2,519 | 1.39 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 2.5A (Tc) | 10V | 2.6Ohm @ 1.25A, 10V | 4.5V @ 50µA | 11 nC @ 10 V | ±30V | 334 pF @ 100 V | - | 45W (Tc) | 150°C (TJ) | Through Hole |
|
STP75N3LLH6MOSFET N-CH 30V 75A TO220 |
1,634 | 1.48 |
RFQ |
Datasheet |
Tube | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 4.5V, 10V | 5.9mOhm @ 37.5A, 10V | 2.5V @ 250µA | 23.8 nC @ 4.5 V | ±20V | 2030 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STS4DNFS30MOSFET N-CH 30V 4.5A 8SO |
1,522 | 1.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Tc) | 5V, 10V | 55mOhm @ 2A, 10V | 1V @ 250µA | 4.7 nC @ 5 V | ±20V | 330 pF @ 25 V | Schottky Diode (Isolated) | 2W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STL50NH3LLMOSFET N-CH 30V 27A POWERFLAT |
1,457 | 1.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 27A (Tc) | 4.5V, 10V | 13mOhm @ 6.5A, 10V | 1V @ 250µA | 12 nC @ 4.5 V | ±16V | 965 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STU6N60M2MOSFET N-CH 600V 4.5A IPAK |
3,634 | 1.52 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.5A (Tc) | 10V | 1.2Ohm @ 2.25A, 10V | 4V @ 250µA | 13.5 nC @ 10 V | ±25V | 232 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP77N6F6MOSFET N-CH 60V 77A TO220 |
1,568 | 1.52 |
RFQ |
Datasheet |
Tube | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 77A (Tc) | 10V | 7mOhm @ 38.5A, 10V | 4V @ 250µA | 76 nC @ 10 V | ±20V | 5300 pF @ 25 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STP4N52K3MOSFET N-CH 525V 2.5A TO220 |
2,308 | 1.55 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 2.5A (Tc) | 10V | 2.6Ohm @ 1.25A, 10V | 4.5V @ 50µA | 11 nC @ 10 V | ±30V | 334 pF @ 100 V | - | 45W (Tc) | 150°C (TJ) | Through Hole |
|
|
STS13N3LLH5MOSFET N-CH 30V 13A 8SO |
2,198 | 1.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Tc) | 4.5V, 10V | 6.6mOhm @ 6.5A, 10V | 1V @ 250µA | 12 nC @ 4.5 V | +22V, -20V | 1500 pF @ 25 V | - | 2.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STFI12N60M2MOSFET N-CH 600V 9A I2PAKFP |
1,487 | 1.61 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 450mOhm @ 4.5A, 10V | 4V @ 250µA | 16 nC @ 10 V | ±25V | 538 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
;;2.jpg)
|
STD2N62K3MOSFET N-CH 620V 2.2A DPAK |
2,437 | 1.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 620 V | 2.2A (Tc) | 10V | 3.6Ohm @ 1.1A, 10V | 4.5V @ 50µA | 15 nC @ 10 V | ±30V | 340 pF @ 50 V | - | 45W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STP3NK60ZMOSFET N-CH 600V 2.4A TO220AB |
4,925 | 1.65 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.4A (Tc) | 10V | 3.6Ohm @ 1.2A, 10V | 4.5V @ 50µA | 11.8 nC @ 10 V | ±30V | 311 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STL7N60M2MOSFET N-CH 600V 5A POWERFLAT |
1,035 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.05Ohm @ 2A, 10V | 4V @ 250µA | 8.8 nC @ 10 V | ±25V | 271 pF @ 100 V | - | 4W (Ta), 67W (Tc) | 150°C (TJ) | Surface Mount |
|
STB7ANM60NMOSFET N-CH 600V 5A D2PAK |
1,167 | 1.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 900mOhm @ 2.5A, 10V | 4V @ 250mA | 14 nC @ 10 V | ±25V | 363 pF @ 50 V | - | 45W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STD6N52K3MOSFET N-CH 525V 5A DPAK |
2,754 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 5A (Tc) | 10V | 1.2Ohm @ 2.5A, 10V | 4.5V @ 100µA | - | ±30V | - | - | 70W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STL2N80K5MOSFET N-CH 800V 2A POWERFLAT |
1,898 | 1.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 2A (Tc) | 10V | 4.9Ohm @ 1A, 10V | 5V @ 100µA | 3 nC @ 10 V | ±30V | 95 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STU8NM50NMOSFET N-CH 500V 5A IPAK |
2,714 | 1.73 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 790mOhm @ 2.5A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±25V | 364 pF @ 50 V | - | 45W (Tc) | 150°C (TJ) | Through Hole |
|
|
STU80N4F6MOSFET N-CH 40V 80A TO251 |
2,260 | 1.74 |
RFQ |
Datasheet |
Tube | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 6.3mOhm @ 40A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±20V | 2150 pF @ 25 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
