| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STP15N80K5MOSFET N-CH 800V 14A TO220 |
877 | 4.89 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 375mOhm @ 7A, 10V | 5V @ 100µA | 32 nC @ 10 V | ±30V | 1100 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP25N60M2-EPMOSFET N-CH 600V 18A TO220 |
174 | 3.03 |
RFQ |
Datasheet |
Tube | MDmesh™ M2-EP | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 188mOhm @ 9A, 10V | 4.75V @ 250µA | 29 nC @ 10 V | ±25V | 1090 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STU6N95K5MOSFET N-CH 950V 9A IPAK |
1,410 | 3.09 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 9A (Tc) | 10V | 1.25Ohm @ 3A, 10V | 5V @ 100µA | 13 nC @ 10 V | ±30V | 450 pF @ 100 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STF24N65M2MOSFET N-CH 650V 16A TO220FP |
286 | 3.11 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 16A (Tc) | 10V | 230mOhm @ 8A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±25V | 1060 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STF24N60DM2MOSFET N-CH 600V 18A TO220 |
774 | 3.19 |
RFQ |
Datasheet |
Tube | FDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 200mOhm @ 9A, 10V | 5V @ 250µA | 29 nC @ 10 V | ±25V | 1055 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF26N60M2MOSFET N-CH 600V 20A TO220FP |
641 | 3.19 |
RFQ |
Datasheet |
Tube | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 165mOhm @ 11A, 10V | 4V @ 250µA | - | ±25V | - | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP10NM60NMOSFET N-CH 600V 10A TO220AB |
860 | 3.29 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 550mOhm @ 4A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±25V | 540 pF @ 50 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF10NM60NMOSFET N-CH 600V 10A TO220FP |
487 | 3.33 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 550mOhm @ 4A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±25V | 540 pF @ 50 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP80NF12MOSFET N-CH 120V 80A TO220AB |
248 | 3.59 |
RFQ |
Datasheet |
Tube | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 80A (Tc) | 10V | 18mOhm @ 40A, 10V | 2V @ 250µA | 189 nC @ 10 V | ±20V | 4300 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STP10NK60ZMOSFET N-CH 600V 10A TO220AB |
574 | 3.63 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 750mOhm @ 4.5A, 10V | 4.5V @ 250µA | 70 nC @ 10 V | ±30V | 1370 pF @ 25 V | - | 115W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF14NM50NMOSFET N-CH 500V 12A TO220FP |
783 | 4.02 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4V @ 100µA | 27 nC @ 10 V | ±25V | 816 pF @ 50 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

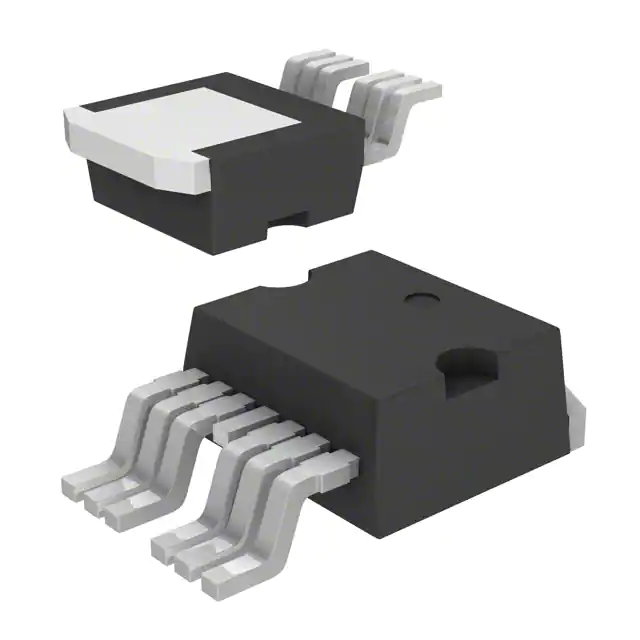

STH275N8F7-6AGMOSFET N-CH 80V 180A H2PAK-6 |
2,000 | 7.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 180A (Tc) | 10V | 2.1mOhm @ 90A, 10V | 4.5V @ 250µA | 193 nC @ 10 V | ±20V | 13600 pF @ 50 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STP33N65M2MOSFET N-CH 650V 24A TO220 |
315 | 4.32 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 140mOhm @ 12A, 10V | 4V @ 250µA | 41.5 nC @ 10 V | ±25V | 1790 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
|
STW40NF20MOSFET N-CH 200V 40A TO247-3 |
1,722 | 4.43 |
RFQ |
Datasheet |
Tube | STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 40A (Tc) | 10V | 45mOhm @ 20A, 10V | 4V @ 250µA | 75 nC @ 10 V | ±20V | 2500 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF33N65M2MOSFET N-CH 650V 24A TO220FP |
598 | 4.45 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 140mOhm @ 12A, 10V | 4V @ 250µA | 41.5 nC @ 10 V | ±25V | 1790 pF @ 100 V | - | 34W (Tc) | 150°C (TJ) | Through Hole |
|
|
STF20N65M5MOSFET N-CH 650V 18A TO220FP |
701 | 3.45 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Tc) | 10V | 190mOhm @ 9A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±25V | 1345 pF @ 100 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP14NM50NMOSFET N-CH 500V 12A TO220 |
124 | 4.20 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4V @ 100µA | 27 nC @ 10 V | ±25V | 816 pF @ 50 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF23N80K5MOSFET N-CH 800V 16A TO220FP |
703 | 5.74 |
RFQ |
Datasheet |
Tube | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 16A (Tc) | 10V | 280mOhm @ 8A, 10V | 5V @ 100µA | 33 nC @ 10 V | ±30V | 1000 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STFW40N60M2MOSFET N-CH 600V 34A ISOWATT |
114 | 6.71 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 88mOhm @ 17A, 10V | 4V @ 250µA | 57 nC @ 10 V | ±25V | 2500 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STW20N95DK5MOSFET N-CH 950V 18A TO247 |
176 | 9.00 |
RFQ |
Datasheet |
Tube | MDmesh™ DK5 | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 18A (Tc) | 10V | 330mOhm @ 9A, 10V | 5V @ 100µA | 50.7 nC @ 10 V | ±30V | 1600 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
