| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STL19N60DM2MOSFET N-CH 600V 11A PWRFLAT HV |
110 | 3.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ DM2 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 320mOhm @ 5.5A, 10V | 5V @ 250µA | 21 nC @ 10 V | ±25V | - | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STH110N10F7-2MOSFET N CH 100V 110A H2PAK |
116 | 3.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VII | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 6.5mOhm @ 55A, 10V | 4.5V @ 250µA | 72 nC @ 10 V | ±20V | 5117 pF @ 50 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STFI20NK50ZMOSFET N-CH 500V 17A I2PAKFP |
1,500 | 3.79 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 17A (Tc) | 10V | 270mOhm @ 8.5A, 10V | 4.5V @ 100µA | 119 nC @ 10 V | ±30V | 2600 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
|
STFI20N65M5MOSFET N CH 650V 18A I2PAKFP |
1,453 | 3.84 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Tc) | 10V | 190mOhm @ 9A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±25V | 1345 pF @ 100 V | - | 130W (Tc) | 150°C (TJ) | Through Hole |
|
|
STFI24NM60NMOSFET N-CH 600V 17A I2PAKFP |
1,331 | 3.90 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 190mOhm @ 8A, 10V | 4V @ 250µA | 46 nC @ 10 V | ±30V | 1400 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STF120NF10MOSFET N-CH 100V 41A TO220FP |
711 | 3.98 |
RFQ |
Datasheet |
Tube | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 41A (Tc) | 10V | 10.5mOhm @ 60A, 10V | 4V @ 250µA | 233 nC @ 10 V | ±20V | 5200 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STP52N25M5MOSFET N-CH 250V 28A TO220 |
551 | 4.11 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 28A (Tc) | 10V | 65mOhm @ 14A, 10V | 5V @ 100µA | 47 nC @ 10 V | ±25V | 1770 pF @ 50 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STI18N65M5MOSFET N CH 650V 15A I2PAK |
348 | 4.11 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 220mOhm @ 7.5A, 10V | 5V @ 250µA | 31 nC @ 10 V | ±25V | 1240 pF @ 100 V | - | 110W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP13NM60NDMOSFET N-CH 600V 11A TO220 |
102 | 4.17 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 5V @ 250µA | 24.5 nC @ 10 V | ±25V | 845 pF @ 50 V | - | 109W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STFI260N6F6MOSFET N-CH 60V 80A I2PAKFP |
297 | 4.32 |
RFQ |
Datasheet |
Tube | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 3mOhm @ 60A, 10V | 4V @ 250µA | 183 nC @ 10 V | ±20V | 11400 pF @ 25 V | - | 41.7W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STI40N65M2MOSFET N-CH 650V 32A I2PAK |
831 | 4.37 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 99mOhm @ 16A, 10V | 4V @ 250µA | 56.5 nC @ 10 V | ±25V | 2355 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | Through Hole |
|
STF16N50M2MOSFET N-CH 500V 13A TO220 |
730 | 4.37 |
RFQ |
Datasheet |
Tube | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 13A (Tc) | 10V | 280mOhm @ 6.5A, 10V | 4V @ 250µA | 19.5 nC @ 10 V | ±25V | 710 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STL18N65M5MOSFET N-CH 650V 15A POWERFLAT |
3,280 | 3.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 240mOhm @ 7.5A, 10V | 5V @ 250µA | 31 nC @ 10 V | ±25V | 1240 pF @ 100 V | - | 57W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STP14NK50ZMOSFET N-CH 500V 14A TO220AB |
103 | 4.44 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 380mOhm @ 6A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2000 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STB13NK60ZT4MOSFET N-CH 600V 13A D2PAK |
891 | 4.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 550mOhm @ 4.5A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2030 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STL16N65M5MOSFET N-CH 650V 12A PWRFLAT HV |
2,402 | 4.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 299mOhm @ 6A, 10V | 5V @ 250µA | 31 nC @ 10 V | ±25V | 1250 pF @ 100 V | - | 3W (Ta), 90W (Tc) | 150°C (TJ) | Surface Mount |
|
STFI20NM65NMOSFET N-CH 650V 15A I2PAKFP |
1,500 | 4.74 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 270mOhm @ 7.5A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±25V | 1280 pF @ 50 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
|
STI26NM60NMOSFET N-CH 600V 20A I2PAK |
942 | 4.74 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 165mOhm @ 10A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±25V | 1800 pF @ 50 V | - | 140W (Tc) | 150°C (TJ) | Through Hole |
|
|

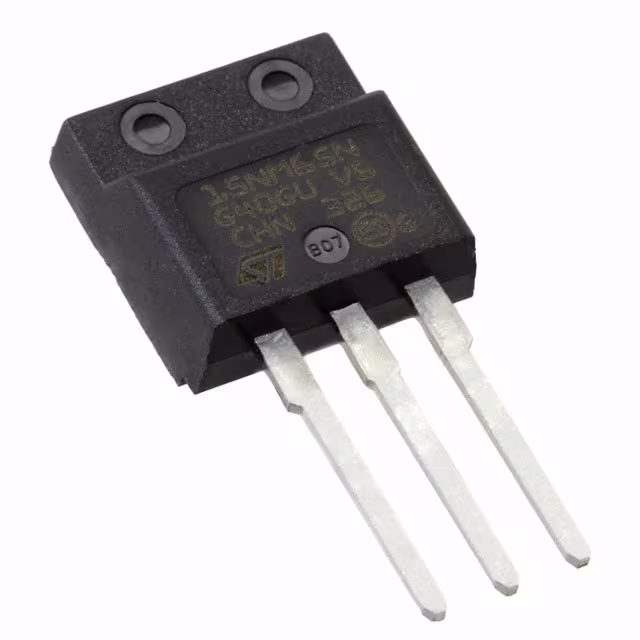

STFU15NM65NMOSFET N-CH 650V 12A TO220FP |
466 | 4.78 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 33.3 nC @ 10 V | ±25V | 983 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STB14NK60ZT4MOSFET N-CH 600V 13.5A D2PAK |
2,525 | 4.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13.5A (Tc) | 10V | 500mOhm @ 6A, 10V | 4.5V @ 100µA | 75 nC @ 10 V | ±30V | 2220 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
