| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STF35N65M5MOSFET N-CH 650V 27A TO220FP |
468 | 10.37 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 27A (Tc) | 10V | 98mOhm @ 13.5A, 10V | 5V @ 250µA | 83 nC @ 10 V | ±25V | 3750 pF @ 100 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
SCTWA10N120IC POWER MOSFET 1200V HIP247 |
500 | 10.93 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 12A (Tc) | 20V | 690mOhm @ 6A, 20V | 3.5V @ 250µA (Typ) | 21 nC @ 20 V | +25V, -10V | 300 pF @ 1000 V | - | 110W (Tc) | -55°C ~ 200°C (TJ) | Through Hole |
|
STW60N65M5MOSFET N-CH 650V 46A TO247 |
589 | 11.36 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 59mOhm @ 23A, 10V | 5V @ 250µA | 139 nC @ 10 V | ±25V | 6810 pF @ 100 V | - | 255W (Tc) | 150°C (TJ) | Through Hole |
|
STW68N60M6MOSFET N-CH 600V TO247-3 |
347 | 11.74 |
RFQ |
Tube | MDmesh™ | Active | - | - | - | 63A (Tc) | - | - | - | - | - | - | - | - | - | Through Hole | |
|
|
STWA57N65M5MOSFET N-CH 650V 42A TO247 |
103 | 11.83 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 42A (Tc) | 10V | 63mOhm @ 21A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±25V | 4200 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | Through Hole |
|
STB34NM60NDMOSFET N-CH 600V 29A D2PAK |
422 | 11.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 110mOhm @ 14.5A, 10V | 5V @ 250µA | 80.4 nC @ 10 V | ±25V | 2785 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | Surface Mount |
|
STP60N043DM9N-CHANNEL 600 V, 38 MOHM TYP., 5 |
140 | 12.58 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 56A (Tc) | 10V | 43mOhm @ 28A, 10V | 4.5V @ 250µA | 78.6 nC @ 10 V | ±30V | 4675 pF @ 400 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STY60NK30ZMOSFET N-CH 300V 60A MAX247 |
413 | 12.73 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 60A (Tc) | 10V | 45mOhm @ 30A, 10V | 4.5V @ 100µA | 220 nC @ 10 V | ±30V | 7200 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STFW60N65M5MOSFET N-CH 650V 46A ISOWATT |
282 | 13.23 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 59mOhm @ 23A, 10V | 5V @ 250µA | 139 nC @ 10 V | ±25V | 6810 pF @ 100 V | - | 79W (Tc) | 150°C (TJ) | Through Hole |
.jpg)
|
STW75N60DM6MOSFET N-CH 600V 72A TO247 |
391 | 14.37 |
RFQ |
Datasheet |
Tube | MDmesh™ DM6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 72A (Tc) | - | - | - | - | - | - | - | - | - | Through Hole |
|
STL42N65M5MOSFET N-CH 650V 4A PWRFLAT HV |
2,918 | 14.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Ta), 34A (Tc) | 10V | 79mOhm @ 16.5A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±25V | 4650 pF @ 100 V | - | 3W (Ta), 208W (Tc) | 150°C (TJ) | Surface Mount |
|
STWA75N60DM6MOSFET N-CH 600V 72A TO247 |
478 | 14.66 |
RFQ |
Datasheet |
Tube | MDmesh™ DM6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 72A (Tc) | - | - | - | - | - | - | - | - | - | Through Hole |
|
|
STW70N60DM6-4MOSFET N-CH 600V 62A TO247-4 |
170 | 14.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 62A (Tc) | 10V | 42mOhm @ 31A, 10V | 4.75V @ 250µA | 99 nC @ 10 V | ±25V | 4360 pF @ 100 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

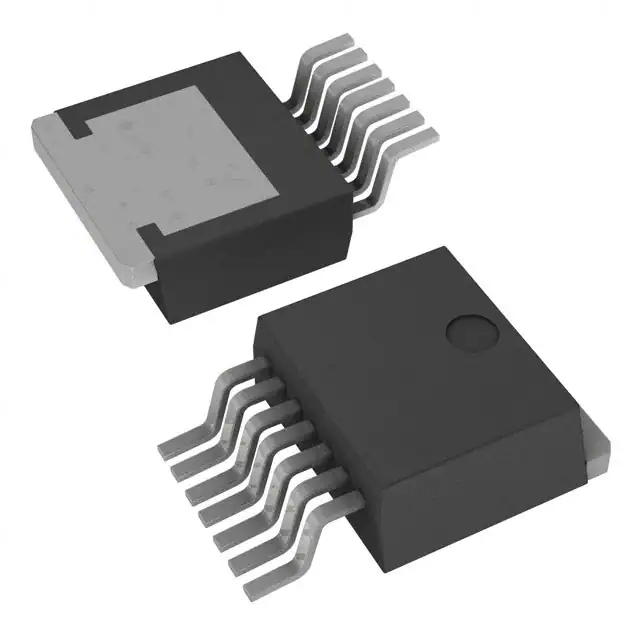

SCTH35N65G2V-7AGSICFET N-CH 650V 45A H2PAK-7 |
636 | 19.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 45A (Tc) | 18V, 20V | 67mOhm @ 20A, 20V | 3.2V @ 1mA | 73 nC @ 20 V | +22V, -10V | 1370 pF @ 400 V | - | 208W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STW69N65M5MOSFET N-CH 650V 58A TO247 |
647 | 20.54 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 58A (Tc) | 10V | 45mOhm @ 29A, 10V | 5V @ 250µA | 143 nC @ 10 V | ±25V | 6420 pF @ 100 V | - | 330W (Tc) | 150°C (TJ) | Through Hole |
|
|
STY50N105DK5MOSFET N-CH 1050V 44A MAX247 |
393 | 30.06 |
RFQ |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 1050 V | 44A (Tc) | 10V | 120mOhm @ 22A, 10V | 5V @ 100µA | 175 nC @ 10 V | ±30V | 6600 pF @ 100 V | - | 625W (Tc) | -55°C ~ 150°C | Through Hole | |
|
|
SCT50N120SICFET N-CH 1200V 65A HIP247 |
509 | 41.62 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 65A (Tc) | 20V | 69mOhm @ 40A, 20V | 3V @ 1mA | 122 nC @ 20 V | +25V, -10V | 1900 pF @ 400 V | - | 318W (Tc) | -55°C ~ 200°C (TJ) | Through Hole |
|
STP200N3LLMOSFET N-CH 30V 120A TO220 |
937 | 1.67 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 4.5V, 10V | 2.4mOhm @ 60A, 10V | 2.5V @ 250µA | 53 nC @ 4.5 V | ±20V | 5200 pF @ 25 V | - | 176.5W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STP160N3LLMOSFET N-CH 30V 120A TO220 |
717 | 1.68 |
RFQ |
Datasheet |
Tube | STripFET™ H6 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 4.5V, 10V | 3.2mOhm @ 60A, 10V | 2.5V @ 250µA | 42 nC @ 4.5 V | ±20V | 3500 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STP120NF10MOSFET N-CH 100V 110A TO220AB |
7,580 | 5.05 |
RFQ |
Datasheet |
Tube | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 10.5mOhm @ 60A, 10V | 4V @ 250µA | 233 nC @ 10 V | ±20V | 5200 pF @ 25 V | - | 312W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
