| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;3.jpg)
|
VP2110K1-GMOSFET P-CH 100V 120MA TO236AB |
17,724 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 120mA (Tj) | 5V, 10V | 12Ohm @ 500mA, 10V | 3.5V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DN3525N8-GMOSFET N-CH 250V 360MA TO243AA |
2,439 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 360mA (Tj) | 0V | 6Ohm @ 200mA, 0V | - | - | ±20V | 350 pF @ 25 V | Depletion Mode | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DN3545N8-GMOSFET N-CH 450V 200MA TO243AA |
3,020 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 450 V | 200mA (Ta) | 0V | 20Ohm @ 150mA, 0V | - | - | ±20V | 360 pF @ 25 V | Depletion Mode | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |

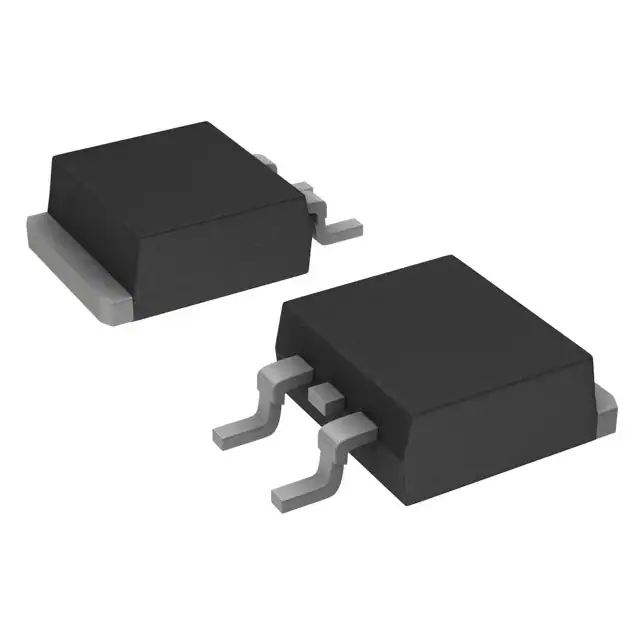

, SC-63.jpg)
|
DN2470K4-GMOSFET N-CH 700V 170MA TO252 |
3,145 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 170mA (Tj) | 0V | 42Ohm @ 100mA, 0V | - | - | ±20V | 540 pF @ 25 V | Depletion Mode | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DN2540N8-GMOSFET N-CH 400V 170MA TO243AA |
2,506 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 170mA (Tj) | 0V | 25Ohm @ 120mA, 0V | - | - | ±20V | 300 pF @ 25 V | Depletion Mode | 1.6W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
TP2510N8-GMOSFET P-CH 100V 480MA TO243AA |
2,728 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 480mA (Tj) | 10V | 3.5Ohm @ 750mA, 10V | 2.4V @ 1mA | - | ±20V | 125 pF @ 25 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DN2625K4-GMOSFET N-CH 250V 1.1A TO252 |
2,493 | 1.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 1.1A (Tj) | 0V | 3.5Ohm @ 1A, 0V | - | 7.04 nC @ 1.5 V | ±20V | 1000 pF @ 25 V | Depletion Mode | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
VP2450N8-GMOSFET P-CH 500V 160MA TO243AA |
3,409 | 2.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 500 V | 160mA (Tj) | 4.5V, 10V | 30Ohm @ 100mA, 10V | 3.5V @ 1mA | - | ±20V | 190 pF @ 25 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
TN2640K4-GMOSFET N-CH 400V 500MA TO252 |
2,032 | 2.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 500mA (Tj) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 2V @ 2mA | - | ±20V | 225 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
2N6661MOSFET N-CH 90V 350MA TO39 |
3,069 | 16.57 |
RFQ |
Datasheet |
Bag | - | Active | N-Channel | MOSFET (Metal Oxide) | 90 V | 350mA (Tj) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 24 V | - | 6.25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
MSC015SMA070B4TRANS SJT N-CH 700V 140A TO247-4 |
3,919 | 39.35 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 140A (Tc) | 20V | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215 nC @ 20 V | +23V, -10V | 4500 pF @ 700 V | - | 455W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
APT50M65JFLLMOSFET N-CH 500V 58A ISOTOP |
2,679 | 46.74 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 58A (Tc) | 10V | 65mOhm @ 29A, 10V | 5V @ 2.5mA | 141 nC @ 10 V | ±30V | 7010 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT53F80JMOSFET N-CH 800V 57A ISOTOP |
3,219 | 72.55 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 57A (Tc) | 10V | 110mOhm @ 43A, 10V | 5V @ 5mA | 570 nC @ 10 V | ±30V | 17550 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
LND01K1-GMOSFET N-CH 9V 330MA SOT23-5 |
3,195 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 9 V | 330mA (Tj) | 0V | 1.4Ohm @ 100mA, 0V | - | - | +0.6V, -12V | 46 pF @ 5 V | Depletion Mode | 360mW (Ta) | -25°C ~ 125°C (TJ) | Surface Mount |
|
VN2110K1-GMOSFET N-CH 100V 200MA SOT23-3 |
9,514 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 200mA (Tj) | 5V, 10V | 4Ohm @ 500mA, 10V | 2.4V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 360mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
2N7002-GMOSFET N-CH 60V 115MA SOT23 |
1,229 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Tj) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±30V | 50 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
,TO-226_straightlead.jpg)
|
2N7000-GMOSFET N-CH 60V 200MA TO92-3 |
3,678 | 0.52 |
RFQ |
Datasheet |
Bag | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Tj) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 3V @ 1mA | - | ±30V | 60 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
VN2106N3-GMOSFET N-CH 60V 300MA TO92-3 |
2,471 | 0.52 |
RFQ |
Datasheet |
Bag | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Tj) | 5V, 10V | 4Ohm @ 500mA, 10V | 2.4V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
TN5325K1-GMOSFET N-CH 250V 150MA TO236AB |
2,141 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 150mA (Ta) | 4.5V, 10V | 7Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 110 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TA) | Surface Mount |
|
|
VN2222LL-GMOSFET N-CH 60V 230MA TO92-3 |
2,017 | 0.56 |
RFQ |
Datasheet |
Bag | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Tj) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 1mA | - | ±30V | 60 pF @ 25 V | - | 400mW (Ta), 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
