| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2N6660MOSFET N-CH 60V 410MA TO39 |
2,154 | 16.57 |
RFQ |
Datasheet |
Bag | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 410mA (Ta) | 5V, 10V | 3Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 24 V | - | 6.25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
APT60M60JFLLMOSFET N-CH 600V 70A ISOTOP |
248 | 96.63 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 70A (Tc) | 10V | 60mOhm @ 35A, 10V | 5V @ 5mA | 289 nC @ 10 V | ±30V | 12630 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
,TO-226_straightlead.jpg)
|
DN2540N3-G-P003MOSFET N-CH 400V 120MA TO92 |
7,907 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 120mA (Tj) | 0V | 25Ohm @ 120mA, 0V | - | - | ±20V | 300 pF @ 25 V | Depletion Mode | 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

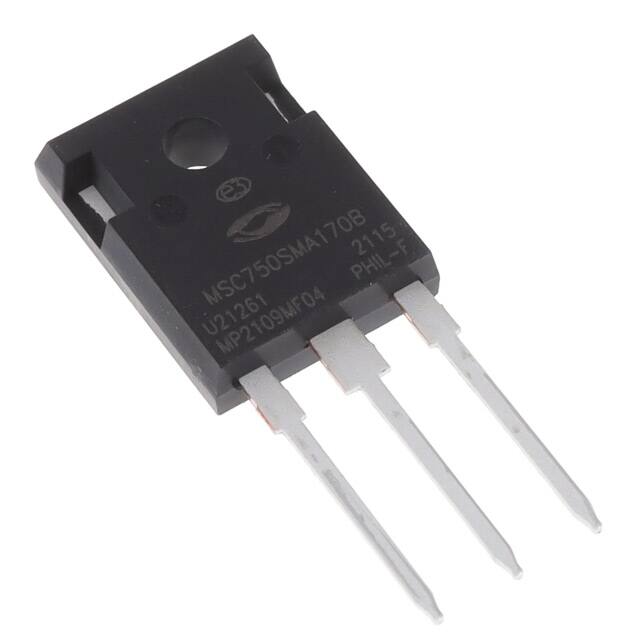

MSC750SMA170BSICFET N-CH 1700V 7A TO247-3 |
112 | 5.81 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1700 V | 7A (Tc) | 20V | 940mOhm @ 2.5A, 20V | 3.25V @ 100µA (Typ) | 11 nC @ 20 V | +23V, -10V | 184 pF @ 1360 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
APT9M100SMOSFET N-CH 1000V 9A D3PAK |
632 | 6.16 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 9A (Tc) | 10V | 1.4Ohm @ 5A, 10V | 5V @ 1mA | 80 nC @ 10 V | ±30V | 2605 pF @ 25 V | - | 335W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
APT18M100SMOSFET N-CH 1000V 18A D3PAK |
183 | 10.97 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 18A (Tc) | 10V | 700mOhm @ 9A, 10V | 5V @ 1mA | 150 nC @ 10 V | ±30V | 4845 pF @ 25 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
APT1204R7BFLLGMOSFET N-CH 1200V 3.5A TO247 |
106 | 11.08 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 3.5A (Tc) | 10V | 4.7Ohm @ 1.75A, 10V | 5V @ 1mA | 31 nC @ 10 V | ±30V | 715 pF @ 25 V | - | 135W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT60N60BCSGMOSFET N-CH 600V 60A TO247 |
787 | 21.03 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 60A (Tc) | 10V | 45mOhm @ 44A, 10V | 3.9V @ 3mA | 190 nC @ 10 V | ±30V | 7200 pF @ 25 V | - | 431W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
TN5335N8-GMOSFET N-CH 350V 230MA TO243AA |
2,000 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 350 V | 230mA (Tj) | 3V, 10V | 15Ohm @ 200mA, 10V | 2V @ 1mA | - | ±20V | 110 pF @ 25 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
TN0106N3-G-P003MOSFET N-CH 60V 350MA TO92-3 |
1,995 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 350mA (Tj) | 4.5V, 10V | 3Ohm @ 500mA, 10V | 2V @ 500µA | - | ±20V | 60 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
VN0550N3-G-P013MOSFET N-CH 500V 50MA TO92-3 |
2,000 | 2.02 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 50mA (Tj) | 5V, 10V | 60Ohm @ 50mA, 10V | 4V @ 1mA | - | ±20V | 55 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
APT9M100S/TRMOSFET MOS8 1000 V 9 A TO-268 |
400 | 7.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 9A (Tc) | 10V | 1.4Ohm @ 5A, 10V | 5V @ 1mA | 80 nC @ 10 V | ±30V | 2605 pF @ 25 V | - | 335W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
VP2206N2MOSFET P-CH 60V 750MA TO39 |
184 | 18.39 |
RFQ |
Datasheet |
Bag | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 750mA (Tj) | 5V, 10V | 900mOhm @ 3.5A, 10V | 3.5V @ 10mA | - | ±20V | 450 pF @ 25 V | - | 360mW (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
MCP87090T-U/LCMOSFET N-CH 25V 48A 8PDFN |
2,321 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 48A (Tc) | 4.5V, 10V | 10.5mOhm @ 10V | 1.7V @ 250µA | 10 nC @ 4.5 V | +10V, -8V | 580 pF @ 12.5 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
MCP87090T-U/MFMOSFET N-CH 25V 64A 8PDFN |
1,345 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 64A (Tc) | 4.5V, 10V | 10.5mOhm @ 10V | 1.7V @ 250µA | 10 nC @ 4.5 V | +10V, -8V | 580 pF @ 12.5 V | - | 2.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
VN2222LL-G-P013MOSFET N-CH 60V 230MA TO92-3 |
1,950 | 0.67 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Tj) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 1mA | - | ±30V | 60 pF @ 25 V | - | 400mW (Ta), 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
VN2222LL-G-P003MOSFET N-CH 60V 230MA TO92-3 |
1,030 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Tj) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 1mA | - | ±30V | 60 pF @ 25 V | - | 400mW (Ta), 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
TP5335K1-GMOSFET P-CH 350V 85MA TO236AB |
2,738 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 350 V | 85mA (Tj) | 4.5V, 10V | 30Ohm @ 200mA, 10V | 2.4V @ 1mA | - | ±20V | 110 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C | Surface Mount |
|
MIC94053YC6-TRMOSFET P-CH 6V 2A SC70-6 |
1,520 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 6 V | 2A (Ta) | 1.8V, 4.5V | 84mOhm @ 100mA, 4.5V | 1.2V @ 250µA | - | 6V | - | - | 270mW (Ta) | -40°C ~ 150°C (TJ) | Surface Mount |
;;3.jpg)
|
TN2124K1-GMOSFET N-CH 240V 134MA TO236AB |
935 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 240 V | 134mA (Tj) | 3V, 4.5V | 15Ohm @ 120mA, 4.5V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 360mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
